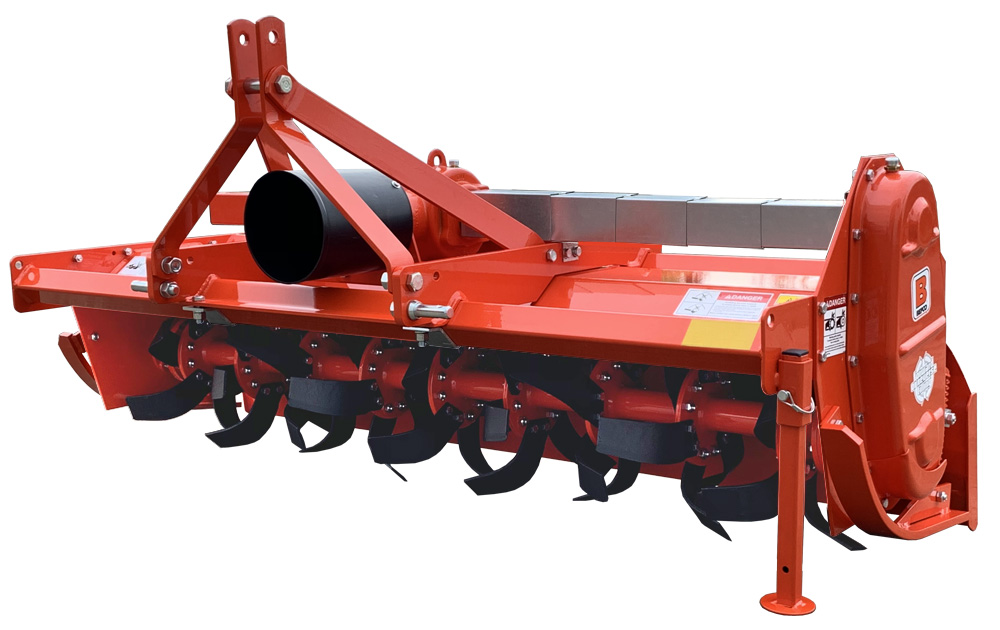

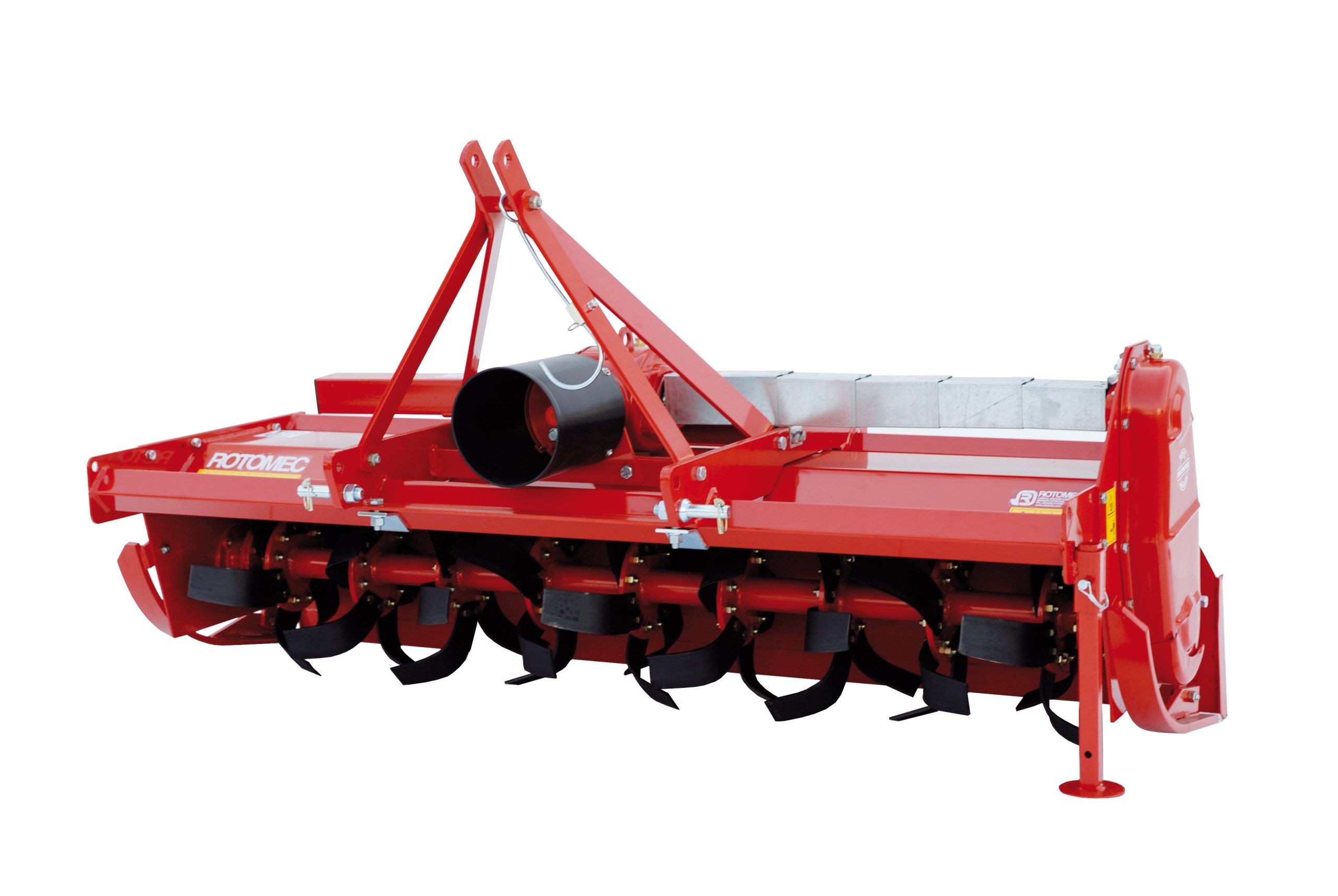

TILL-RITE T60
Rotary tillers with side-shift
35-60 HP (26-45 KW)
540 rpm - Cat. 1
The T60 is a side-shift rotary tiller designed to work with tractors ranging from 30 to 60 HP at 540 rpm. It is the ideal machine for use anywhere from orchards to nurseries, from vineyards to greenhouses and all other types of landscaping. The high carbon steel rotor shaft allows for a working depth of up to 22 cm. The rotor shaft also comes with double flanges on the side to facilitate blade replacement. The T60 is available in working widths of 145, 165 and 185 cm and comes with a driveline with slip clutch safety. These rotary tillers are available with forward or reverse tilling rotation.
MODELS WITH SLIP CLUTCH
Model | T60-358 | T60-366 | T60-374 |
|---|---|---|---|
HP | 30-60 | 35-60 | 40-60 |
Working width (cm) | 145 | 165 | 205 |
Overall width (cm) | 165 | 185 | 205 |
Weight Kg | 310 | 336 | 362 |
Ship Kg | 325 | 350 | 337 |
Side-shift (cm) | 120 | 140 | 160 |
Nr flanges | 7 | 8 | 9 |
Nr blades | 42 | 48 | 54 |
Chain sprockets | 12-14 | 12-14 | 12-14 |
Rotor rpm | 221 | 221 | 221 |
Maximum working depth (mm) | 220 | 220 | 220 |
Driveline 1 3/8" | ASAE cat.6 slip clutch | ASAE cat.6 slip clutch | ASAE cat.6 slip clutch |
Built-in manual side shift
Rotomec tillers feature a built-in manual side shift system that allows operator to either keep the tiller center mounted behind the tractor, like a traditional unit, or offset the tiller to the right of the tractor. This is particularly beneficial when trying to till over the right tractor tire and closer to obstacles.
Forward or reverse tilling rotation
Rotomec tillers may be set up with either a forward or reverse rotating rotor. When the rotor rotates forward the tiller will have a tendency to bury the rocks while when the tiller rotates backwards it will have a tendency to bring any rocks to the surface.
Gearbox manufactured by Rotomec
Unlike other manufacturers who purchase gearboxes from outside suppliers, Rotomec utilizes a gearbox built in-house using high strength steel for its gears and top of the line bearings and seals.
ASA 100 Chain drive
Lateral ASA 100 chain drive transmission in oil bath. Our chain transmissions are oversized specifically to avoid any downtime due to maintenance. Our Chain transmissions also offer over 180° gear coverage resulting in a smoother and better distributed power transmission.
Rotor supports
Rotor supports are made out of stamped steel making them more durable than those offered by competitors.
Flanged rotor shaft
The flanged rotor shaft allows operator to quickly disassemble the rotor from the tiller for easy and comfortable blade service and replacement.
Six blades per flange
The higher horsepower tractor for which this tiller is designed for, means that it is capable of handling the additional power requested for a rotor with six blades per flange.
