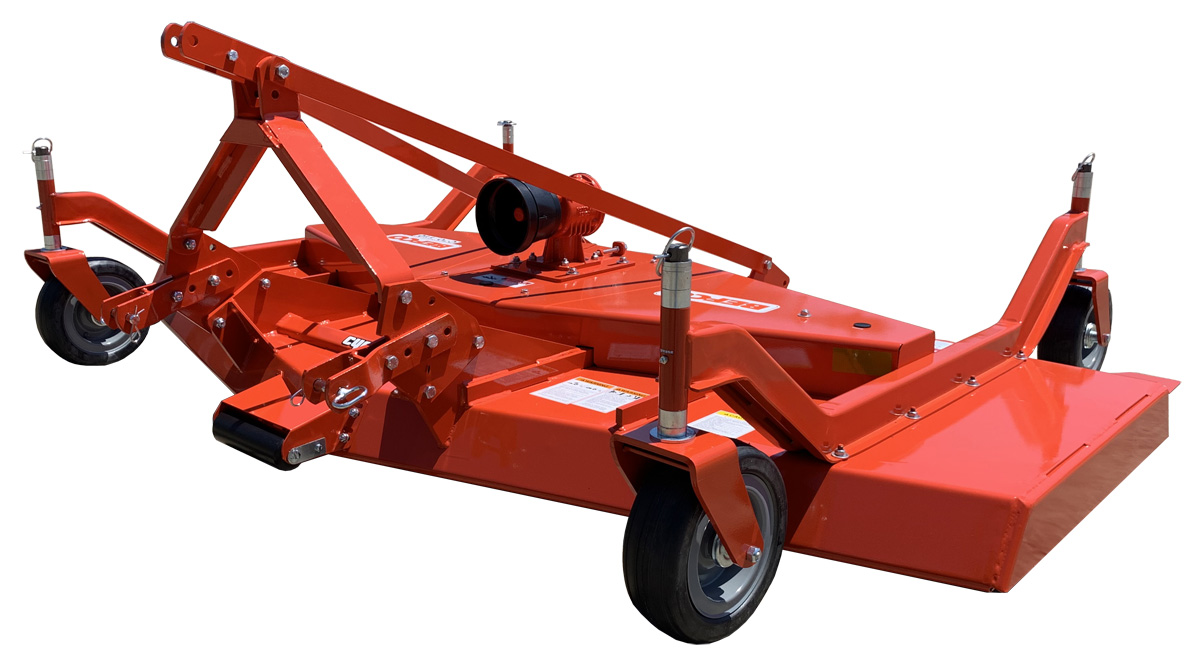

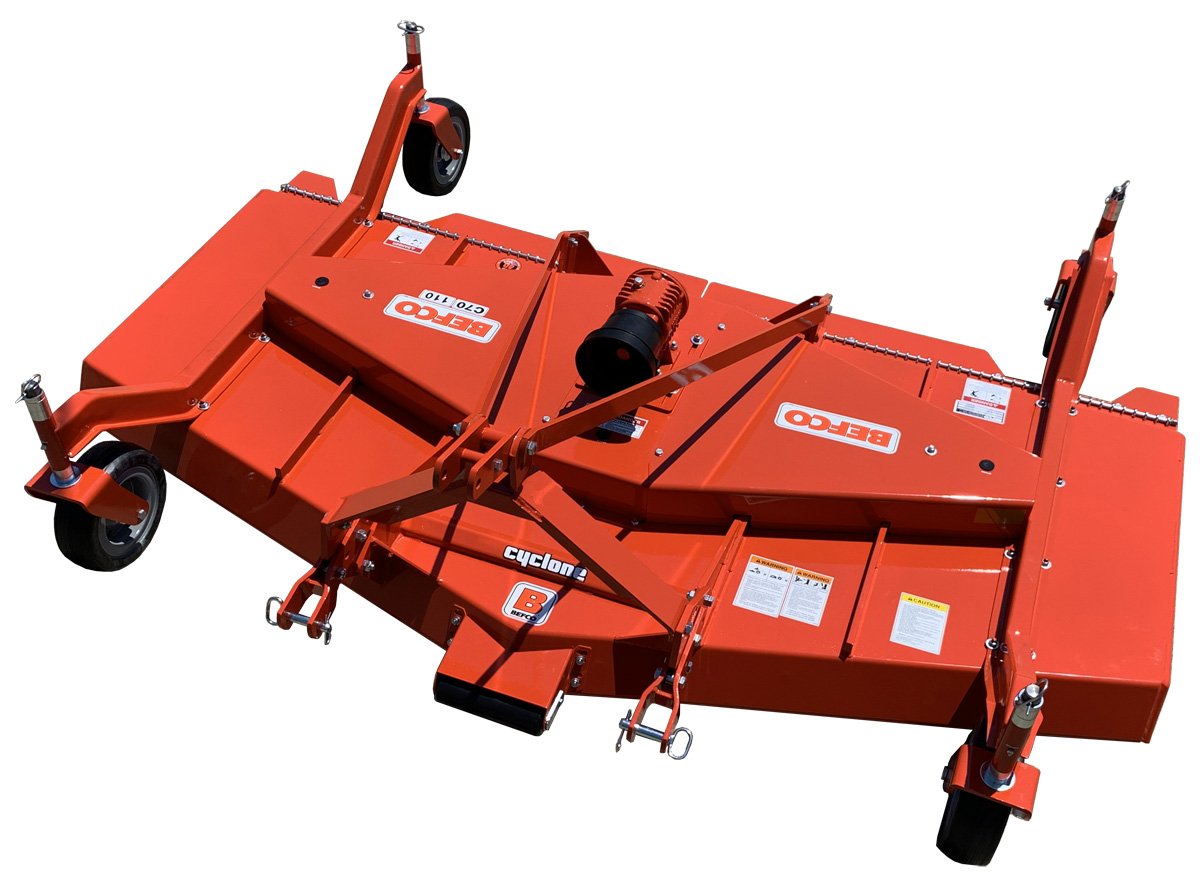

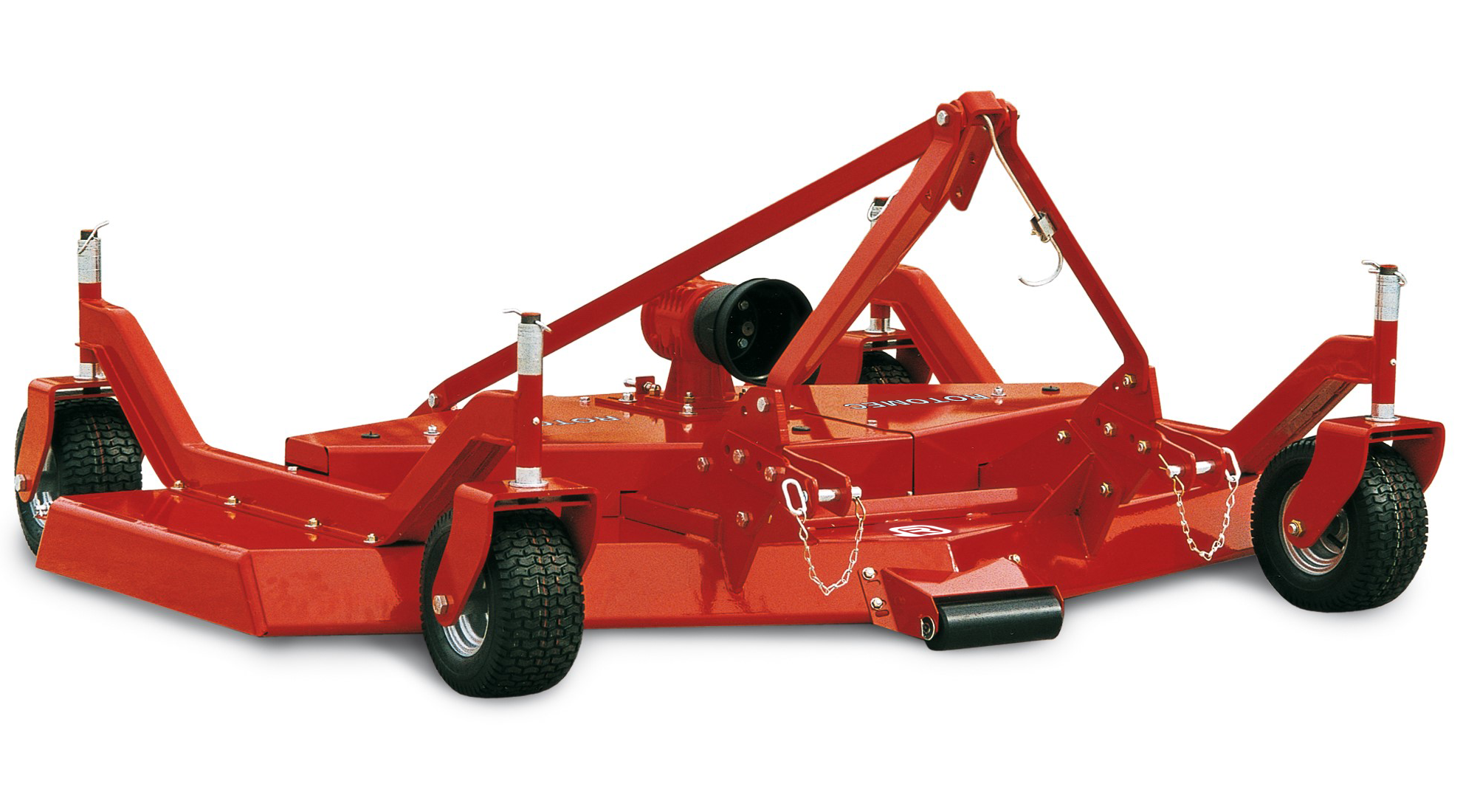

CYCLONE C70
Grooming mowers
30-70 HP (22-52 KW)
540 rpm - Cat. 1

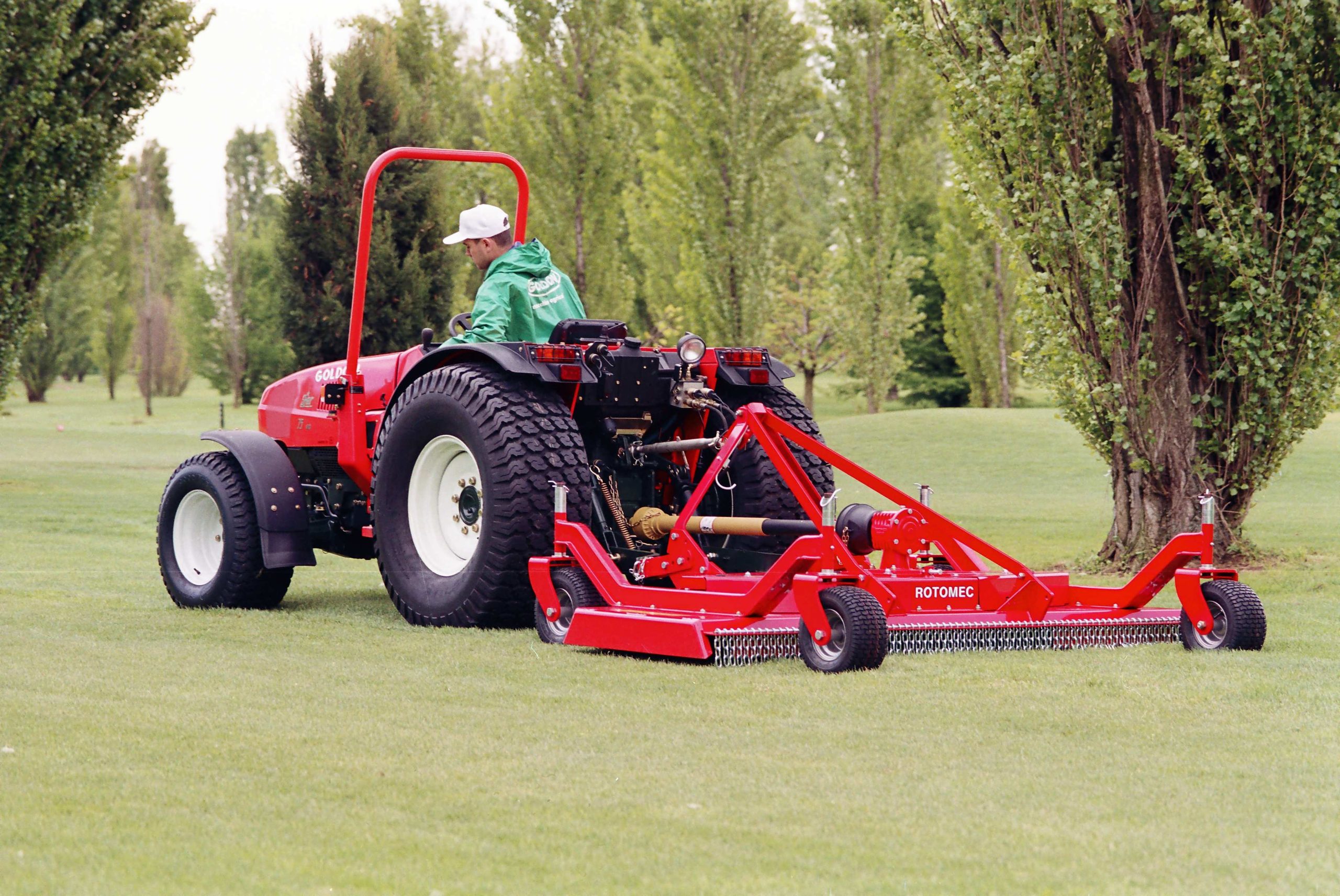

The Cyclone C70 is a three-spindle mower suitable for tractors ranging from 30-70 HP.It is available in two models with rear discharge and working widths of 230 and 280 cm.Its large working dimensions make it the ideal machine not only for large grass areas, but thanks to its reinforced frame and its three rotors with two pivoting blades, it is also capable of working on set aside fields or in presence of very tall grass.The rear chains that are fitted with on all C70 mowers, divert any thrown objects towards the ground and are therefore indispensable for anyone who cuts grass in public parks, near roads, or near residential areas.
MODELS WITH SOLID TIRES (SIZE 310 mm x 100 mm)
Model | C70-090H | C70-110H |
|---|---|---|
HP | 30-70 | 40-70 |
Working width (cm) | 230 | 280 |
Overall width (cm) | 234 | 284 |
Weight Kg | 562 | 630 |
Ship Kg | 580 | 660 |
Rotor rpm | 1.750 | 1.562 |
Blade tip speed (m/s) | 71 | 76 |
Nr of blades | 6 | 6 |
Cutting height (mm) | 35-135 | 35-135 |
Nr belts & type | 2 CX | 2 CX |
Driveline 1 3/8" | ASAE cat.4 | ASAE cat.4 |
MODELS WITH PNEUMATIC TIRES (SIZE 330 mm x 165 mm)
Model | C70-090A | C70-110A |
|---|---|---|
HP | 30-70 | 40-70 |
Working width (cm) | 230 | 280 |
Overall width (cm) | 234 | 284 |
Weight Kg | 516 | 585 |
Ship Kg | 530 | 600 |
Rotor rpm | 1.750 | 1.562 |
Blade tip speed (m/s) | 71 | 76 |
Nr of blades | 6 | 6 |
Cutting height (mm) | 35-135 | 35-135 |
Nr belts & type | 2 Cx | 2 CX |
Driveline 1 3/8" | ASAE cat.4 | ASAE cat.4 |

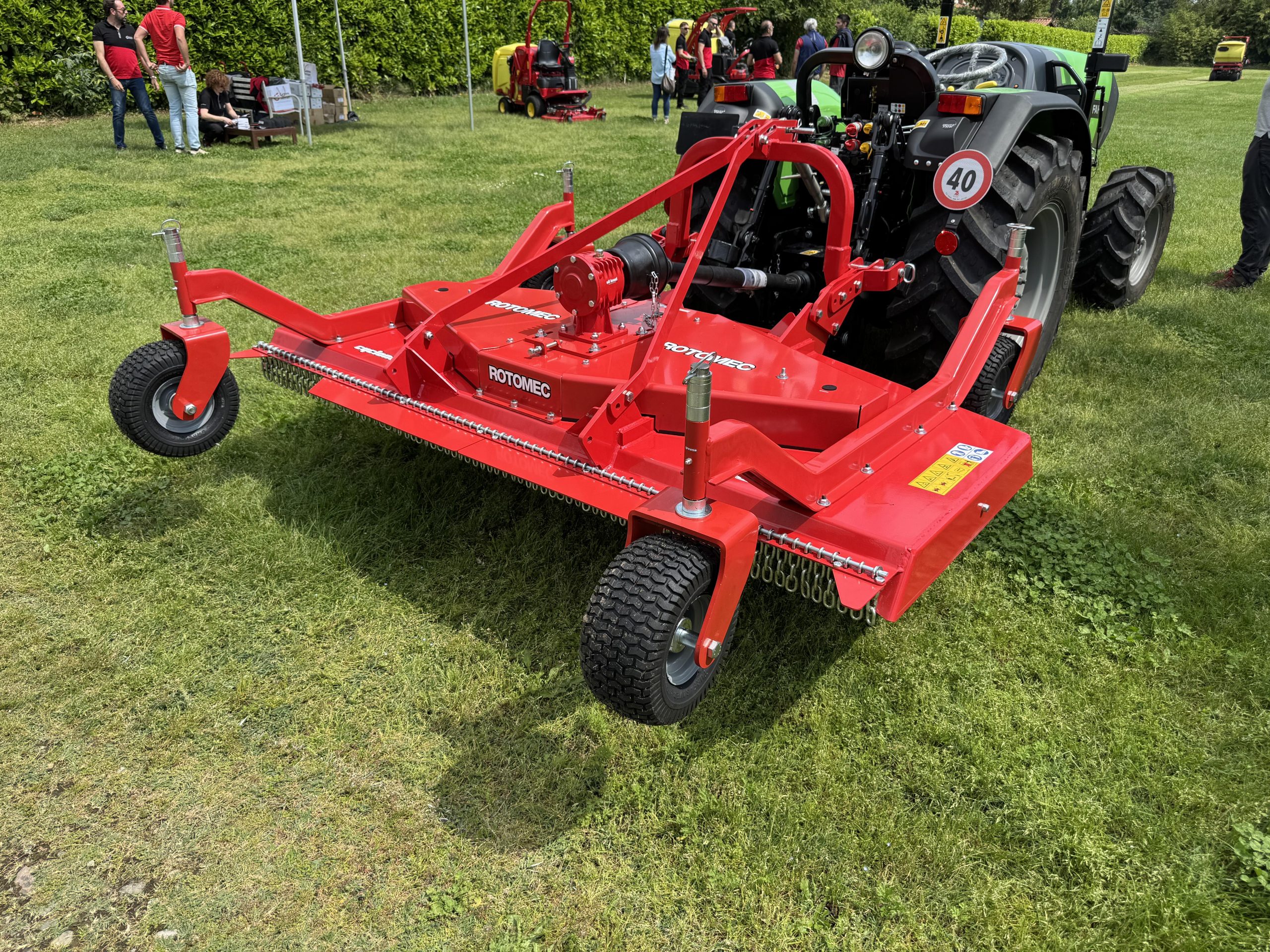

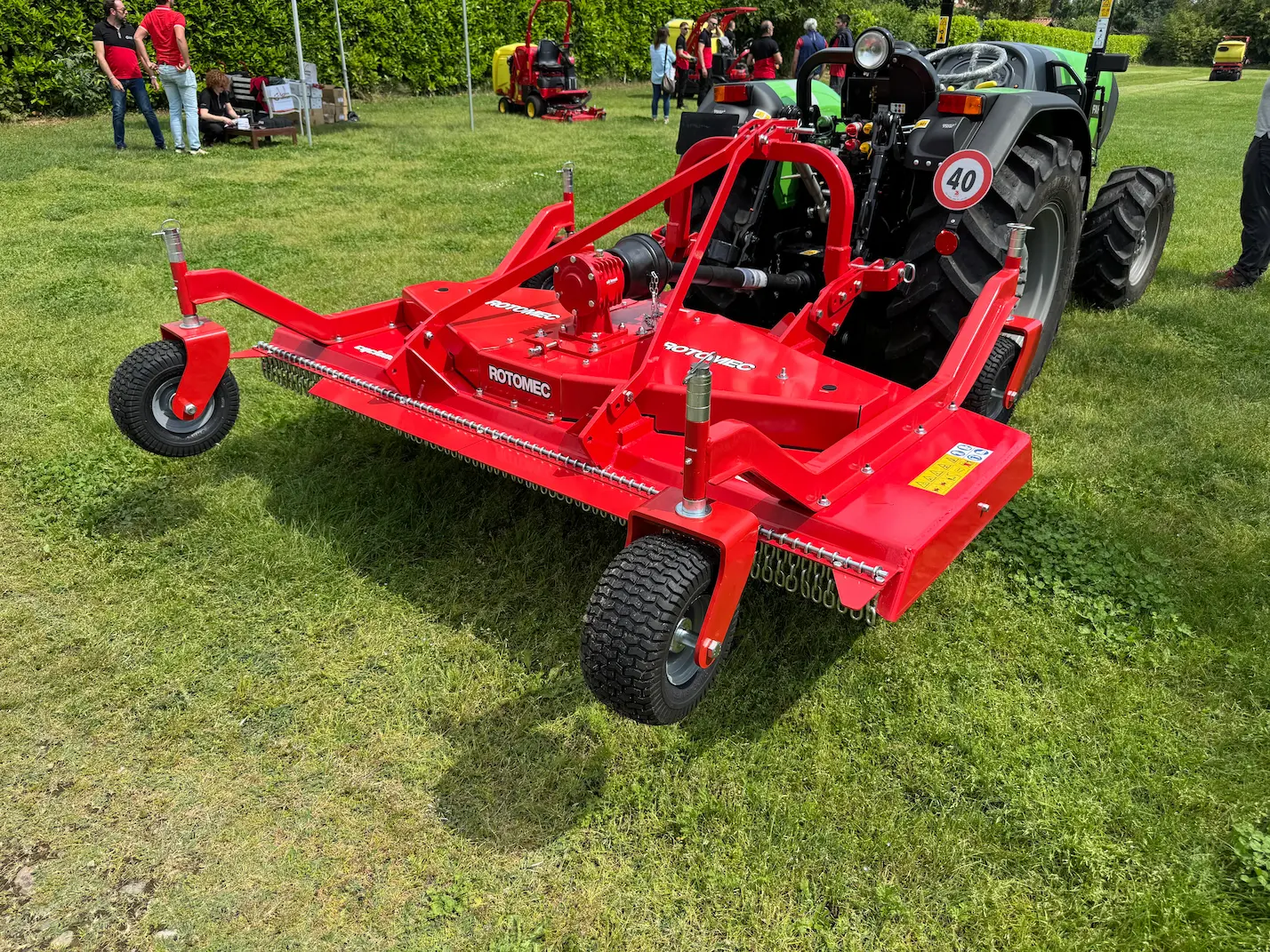

Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.
Front antiscalp roller
All C70 mowers are equipped standard with front antiscalp rollers to help prevent scalping the ground when mowing over uneven terrain.
Manual belt tensionning
Manual belt tensionner maintains constant tension on belts without stretching them like a typical spring loaded idler would. This means that belts last much longer and there is no spring loaded idler that needs to be disassembled at the end of the mowing season to prevent it from stretching the belts during the winter months.
Double belt transmission
Two heavy duty reinforced belts (SPBX) with manual tensionner provide over 180° coverage of all pulleys and reduce belt maintenance.
Cast iron pulleys
Heavy duty, individually balanced cast iron pulleys are more durable than steel or plastic ones often used by competitors and do not get damaged whenever serviced.
Axial grease fittings
Spindles are quipped with axial grease fittings that allow operator to grease spindle from the top without having to remove the belt shields.
Free swinging blades
C70 mowers have the blade tip speed of a grooming mower and the free swinging blades of a rotary cutter. This hybrid system allows them not only to perform well as a grooming mower but also to handle thicker brush cutting.
Stamped steel reinforced wheel arms
Only Rotomec mowers are equipped with reinforced stamped steel wheel arms. These wheel arms are stronger than the ones made of bent tubing used by the competition and always guarantee a perfectly even surface for the mower to rest on.
Choice of solid or pneumatic tires
Customers can choose between solid (310 mm x 100 mm) or pneumatic tires (330 mm x 165 mm).
Chain shielding
Mowers are equipped with chain shields to provide additional safety from thrown objects.
Transmission 1000 rpm
O1000C70 1000 rpm clockwise transmission
A1000C70 1000 rpm anticlockwise transmission
Three point hitch cat. ‘1N’
H1NXXC70 Three point hitch cat. ‘1N’
