BLR
Landscape rakes
16-65 HP (12-48 KW)
Cat. 1

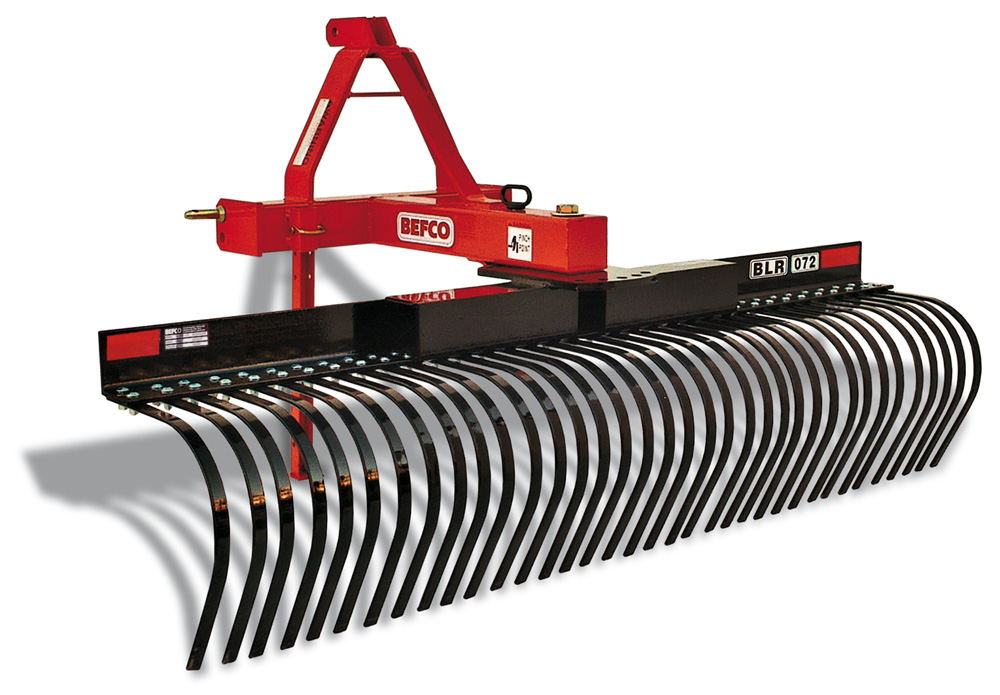

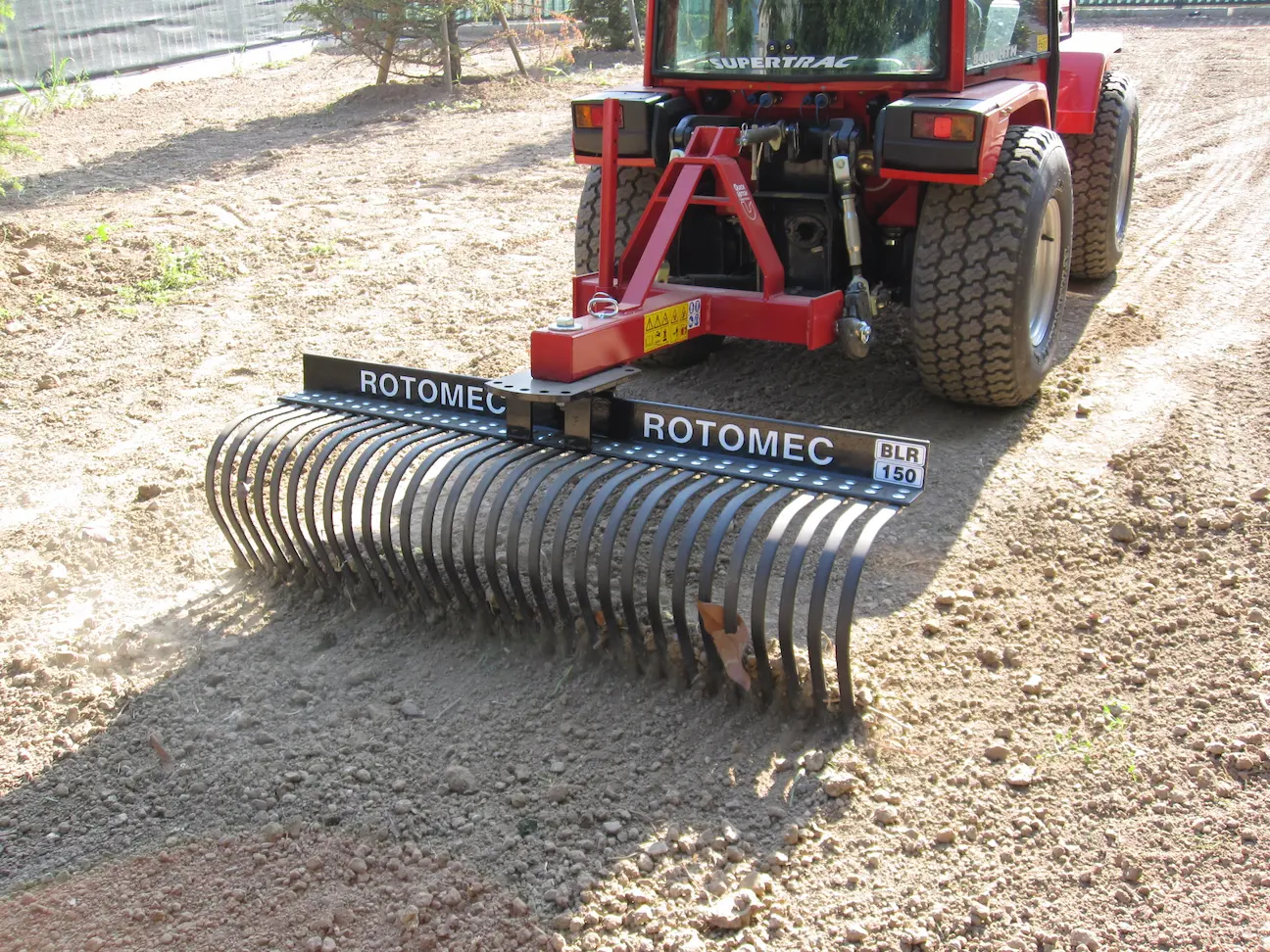

The landscape rake is designed especially for final soil preparation. It is perfect for leveling and spreading topsoil or gravel and for removing stones or trash. It is an ideal machine for hobby farmers and landscapers. Available in two working widths of 150 and 180 cm, for tractors from 16 to 65 HP, the rake can be front or rear mounted on tractors with a category 1 three point hitch or Quick Hitch. The landscape rake offers 10 different angling positions (5 forward and 5 reverse).
STANDARD DUTY MODELS
Model | BLR-060 | BLR-072 |
|---|---|---|
HP | 16-50 | 16-65 |
Hitch | Cat. 1 | Cat. 1 |
Working width (cm) | 150 | 180 |
Weight Kg | 100 | 113 |
Ship Kg | 115 | 130 |
Rake angling | 16° & 32° | 16° & 32° |
Nr of tines | 30 | 36 |
Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.

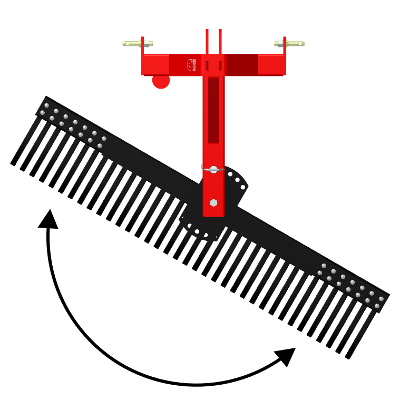

Angling
Up to 32° angling on Standard duty models with 5 forward and 5 reverse positions.
16° angling on Sub-compact models with 3 forward and 3 reverse positions.
Gauge wheels
0099159 Gauge wheels with pneumatic tires size 33 cm x 16,5 cm.
Operator’s & Parts manual
