TORNADO RMD

Medium duty rotary cutters
35-80 HP (26-60 KW)
540 rpm - Cat. 1

The Tornado rotary cutter handles the tallest grass and toughest mowing assignments including bushes. It can be used for chopping wheat, cornstalks, cotton plants and also for the maintenance of “set-aside” fields. The Tornado RMD is suitable for tractors ranging from 35 to 80 HP and is available in cutting widths of 150 and 180 cm. The top link is floating; the rotor blade holder is balanced and protected by a standard oval heavy duty stump jumper; the high carbon steel blades are free swinging to avoid possible damage when working against objects, stones and roots. Heavy duty shielded Pto shaft with slip clutch safety is standard equipment. The Tornado rotary cutter come with laminated tail wheel that can be adjusted to set the cutting height.

Model

RMD-360

RMD-372

HP

35-80

40-80

Working width (cm)

150

180

Overall width (cm)

171

198

Weight Kg

315

356

Ship Kg

330

370

Rotor rpm

855

855

Blades tip speed (m/s)

67

80

Nr blades & sizes (mm)

(2) 100x12

(2) 100x12

Cutting height (mm)

25-235

25-235

Laminated wheel size (mm)

(1) 380x100

(1) 380x100

Driveline 1 3/8"

ASAE cat. 4 slip clutch

ASAE cat. 4 slip clutch

WARNING: Because of possible injury from thrown objects, all rotary cutters are potenitally dangerous.
Any rotary cutter intedended for use along roadways or other locations where people may be present must be used with safety shielding in place.

Laminated tail wheel

All Tornado RMD rotary cutters are delivered with heady duty laminated tail wheels (Size 380 mm x 100 mm).

Carbon steel rotor

Heavy duty, hardened carbon steel rotor.

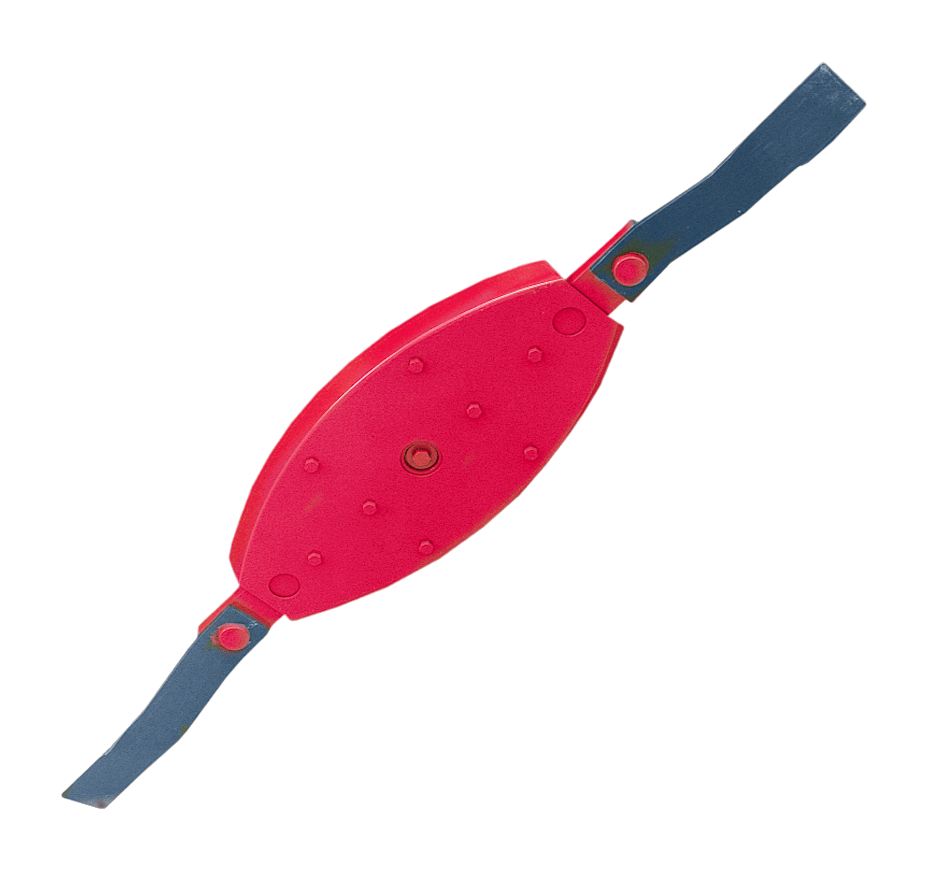

Oval stump jumper

Oval stump jumper protects rotor from impacts. Two heavy duty 100 mm x 12 mm spring steel blades mounted at the ends of the rotor.

Shafety chains and guards

RMD cutters are equipped standard with front and rear safety chains and rear metal guards.

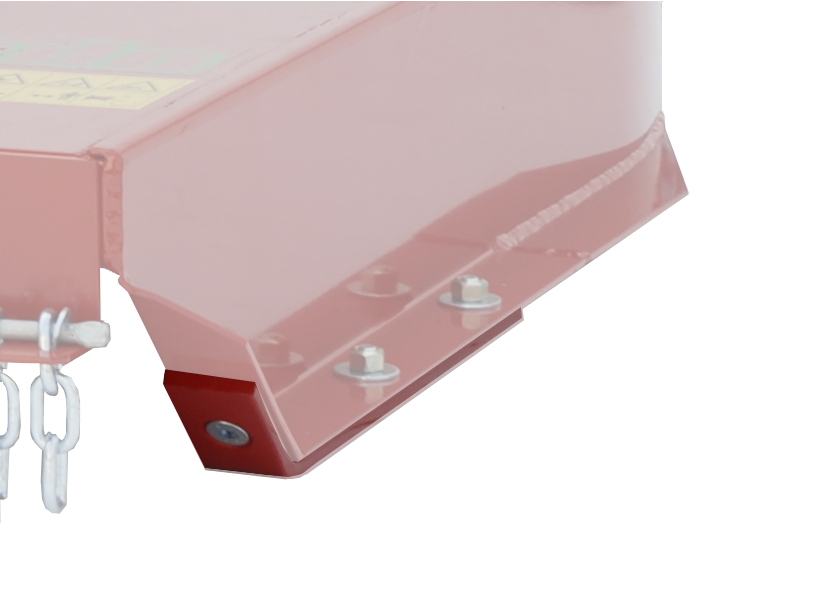

Side skids

All RMD rotary cutter mower decks are delivered with replaceable side skids.
