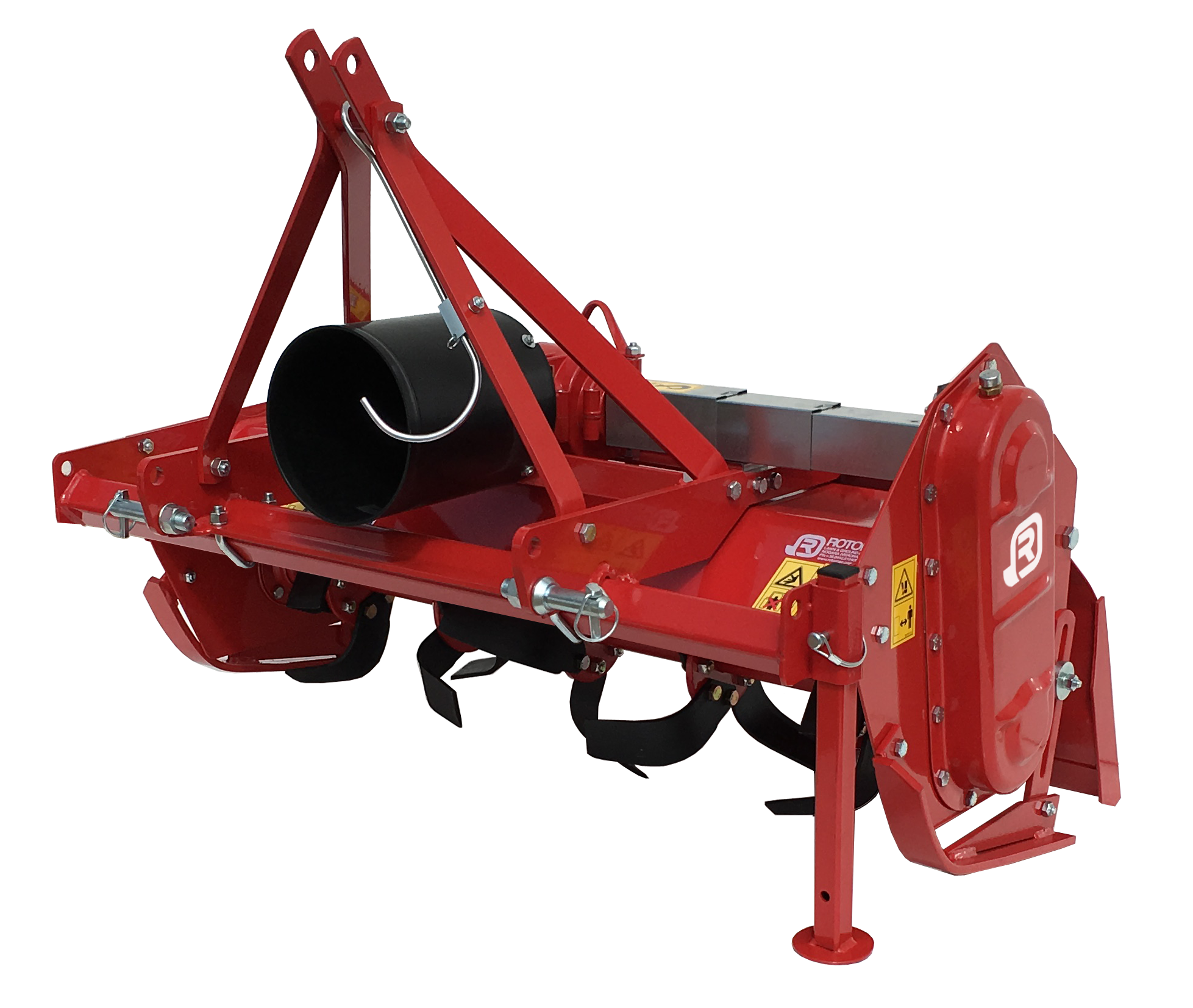

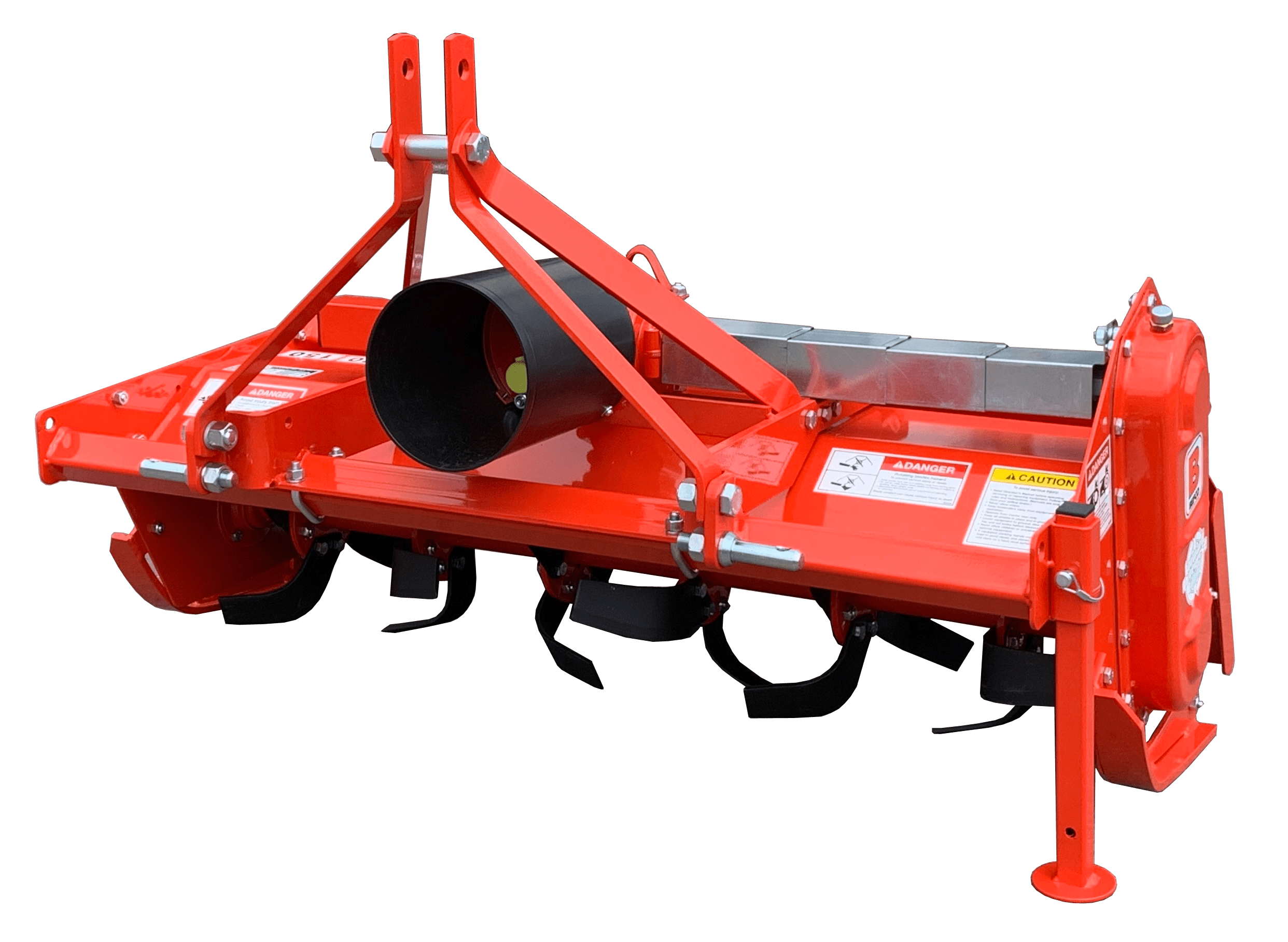

TILL-RITE T30
Rotary tillers with side-shift
16-30 HP (12-22 KW)
540 or 2000 rpm - Cat. 1
The T30 is a side-shift rotary tiller designed to work with low power tractors ranging from 16 to 30 HP at 540 rpm. It is the ideal machine for use anywhere from orchards to nurseries, from vineyards to greenhouses and all other types of landscaping. The high carbon solid steel round rotor shaft allows for a deeper working depth (up to 18 cm). The T30 can come with a front or rear blade rotation. The smooth manual side-shift system requires no lever to operate. These rotary tillers can work totally shifted to the right, therefore under plants, sidewalks and flowerbeds, as well as in central position just like any normal centered tiller covering both tractor tire tracks.
MODELS WITH 540 RPM GEARBOX AND SHEAR BOLT
Model | T30-134 | T30-142 | T30-150 |
|---|---|---|---|
HP | 16-30 | 20-30 | 25-30 |
Hitch | Cat.1 | Cat.1 | Cat.1 |
Working width (cm) | 85 | 105 | 125 |
Overall width (cm) | 100 | 120 | 125 |
Weight Kg | 135 | 155 | 170 |
Ship Kg | 150 | 170 | 185 |
Side-shift (cm) | 60 | 80 | 100 |
Nr flanges | 4 | 5 | 6 |
Nr blades | 16 | 20 | 24 |
Chain sprockets | 14-16 | 14-16 | 14-16 |
Rotor rpm | 205 | 205 | 205 |
Maximum working depth (mm) | 180 | 180 | 180 |
Driveline 1 3/8" | ASAE cat. 2 shear bolt | ASAE cat. 2 shear bolt | ASAE cat. 2 shear bolt |
MODELS WITH 540 RPM GEARBOX AND SLIP CLUTCH
Model | T30-234 | T30-242 | T30-250 |
|---|---|---|---|
HP | 16-30 | 20-30 | 25-30 |
Hitch | Cat.1 | Cat.1 | Cat.1 |
Working width (cm) | 85 | 105 | 125 |
Overall width (cm) | 100 | 120 | 55 |
Weight Kg | 140 | 160 | 175 |
Ship Kg | 155 | 175 | 190 |
Side-shift (cm) | 60 | 80 | 100 |
Nr flanges | 4 | 5 | 6 |
Nr blades | 16 | 20 | 24 |
Chain sprokets | 14-16 | 14-16 | 14-16 |
Rotor rpm | 205 | 205 | 205 |
Maximum working depth (mm) | 180 | 180 | 180 |
Driveline 1 3/8" | ASAE cat. 3 slip clutch | ASAE cat. 3 slip clutch | ASAE cat. 3 slip clutch |
Built-in manual side shift
Rotomec tillers feature a built-in manual side shift system that allows operator to either keep the tiller center mounted behind the tractor, like a traditional unit, or offset the tiller to the right of the tractor. This is particularly beneficial when trying to till over the right tractor tire and closer to obstacles.
Forward or reverse tilling rotation
Rotomec tillers may be set up with either a forward or reverse rotating rotor. When the rotor rotates forward the tiller will have a tendency to bury the rocks while when the tiller rotates backwards it will have a tendency to bring any rocks to the surface.
Gearbox manufactured by Rotomec
Unlike other manufacturers who purchase gearboxes from outside suppliers, Rotomec utilizes a gearbox built in-house using high strength steel for its gears and top of the line bearings and seals. Cooling fins on the gearbox reduce heat build up.
ASA 60 Chain drive
Lateral ASA 60 chain drive transmission in oil bath. Our chain transmissions are oversized specifically to avoid any downtime due to maintenance. Our Chain transmissions also offer over 180° gear coverage resulting in a smoother and better distributed power transmission.
Side skids with Infinite adjustments
Side skids allow for tiller depth adjustment to be set anywhere from 0 cm to 18,42 cm.
Transmission 2000 rpm
O2000T30 2000 rpm transmission.
