BRB
Rear blades
16-50 HP (12-37 KW)
Cat. 1

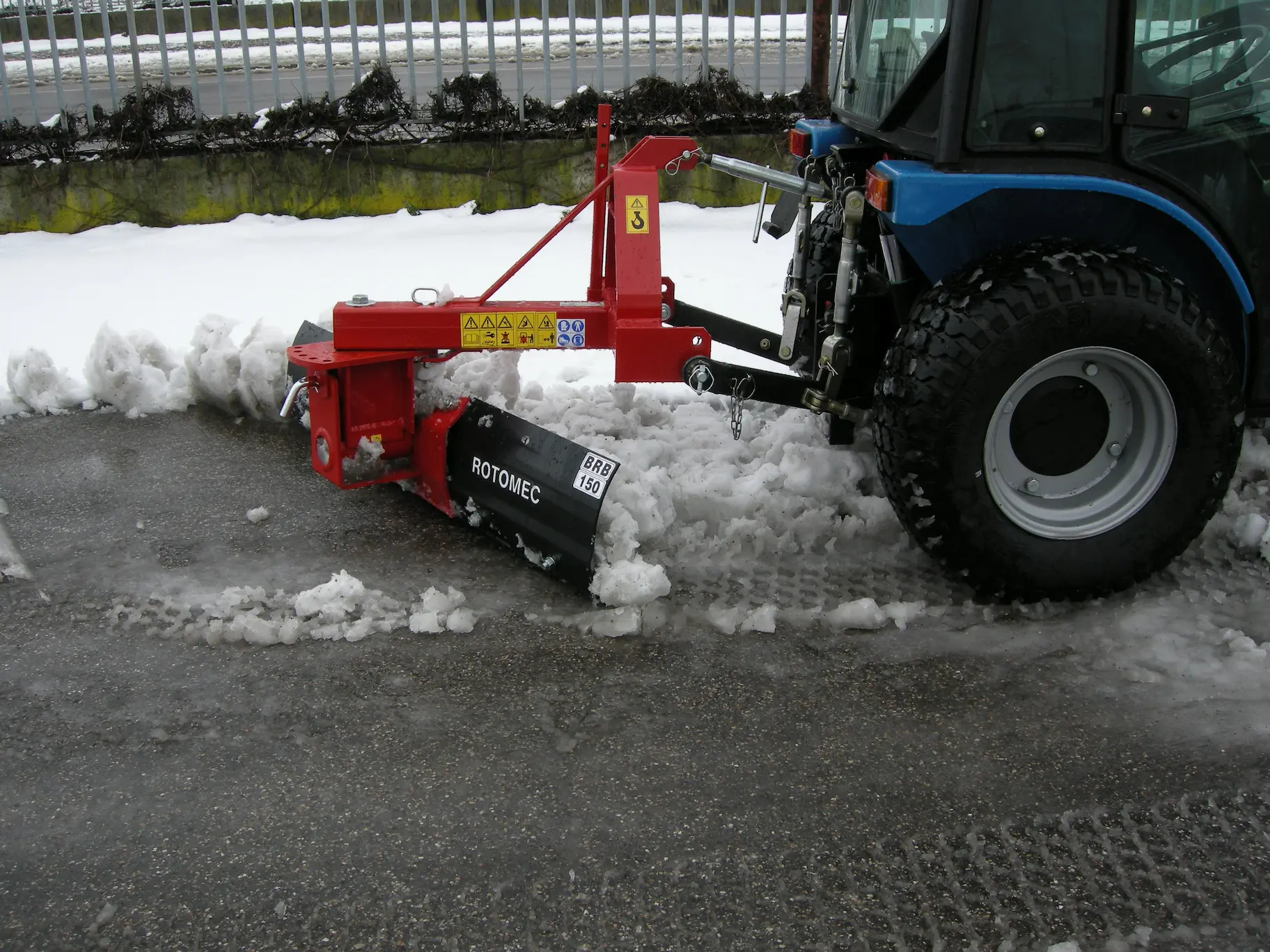

The rear blade is designed for snow removal, landscape grading and construction clean up. The rear blade can be front or rear mounted on tractors with a category 1 three point hitch or category 1 Quick Hitch. These blades feature a sturdy frame construction with 13,5 x150 mm heat treated reversible cutting edge blade and 6 mm moldboard thickness. Various adjustment possibilities include 5 forward and 5 reverse horizontal angling positions, 3 vertical tilt positions and left or right offset capabilities.
STANDARD DUTY MODELS
Model | BRB-060 | BRB-072 |
|---|---|---|
HP | 16-50 | 16-50 |
Hitch | Cat. 1 | Cat. 1 |
Working width (cm) | 150 | 180 |
Weight Kg | 150 | 180 |
Ship Kg | 165 | 195 |
Tilt adjustment | 14° | 14° |
Blade angling | 16° & 32° | 16° & 32° |
Offset adjustment (cm) | 15 or 30 | 15 or 30 |
Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.
Angling
Up to 32° angling on Standard duty models with 5 forward and 5 reverse positions.
16° angling on Sub-compact models.
Offset
Up to 30 cm right or left offset adjustment on Standard duty models.
15 cm right or left offset adjustment on Sub-compact models.

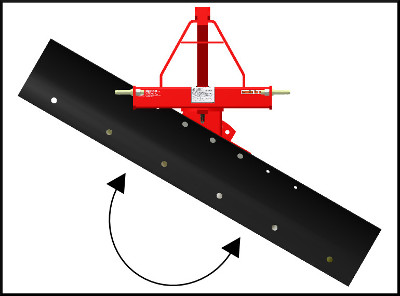

Tilt
Up to 14° right or left tilt adjustment on Standard duty models with 3 tilt positions to choose from.
1,27 × 15,24 cm heat treated blades
All BRB models are equipped with two 1,27 × 15,24 cm heat treated blades with reversible cutting edge.
Operator’s & Parts manual
