MOLE

Post hole diggers
15-90 HP (11-67 KW)
540 rpm - Cat. 1 & 2

200-512 scontornato
300-512 scontornato
0703 PHD con logo Rotomec
DSCN2874
previous arrow
next arrow

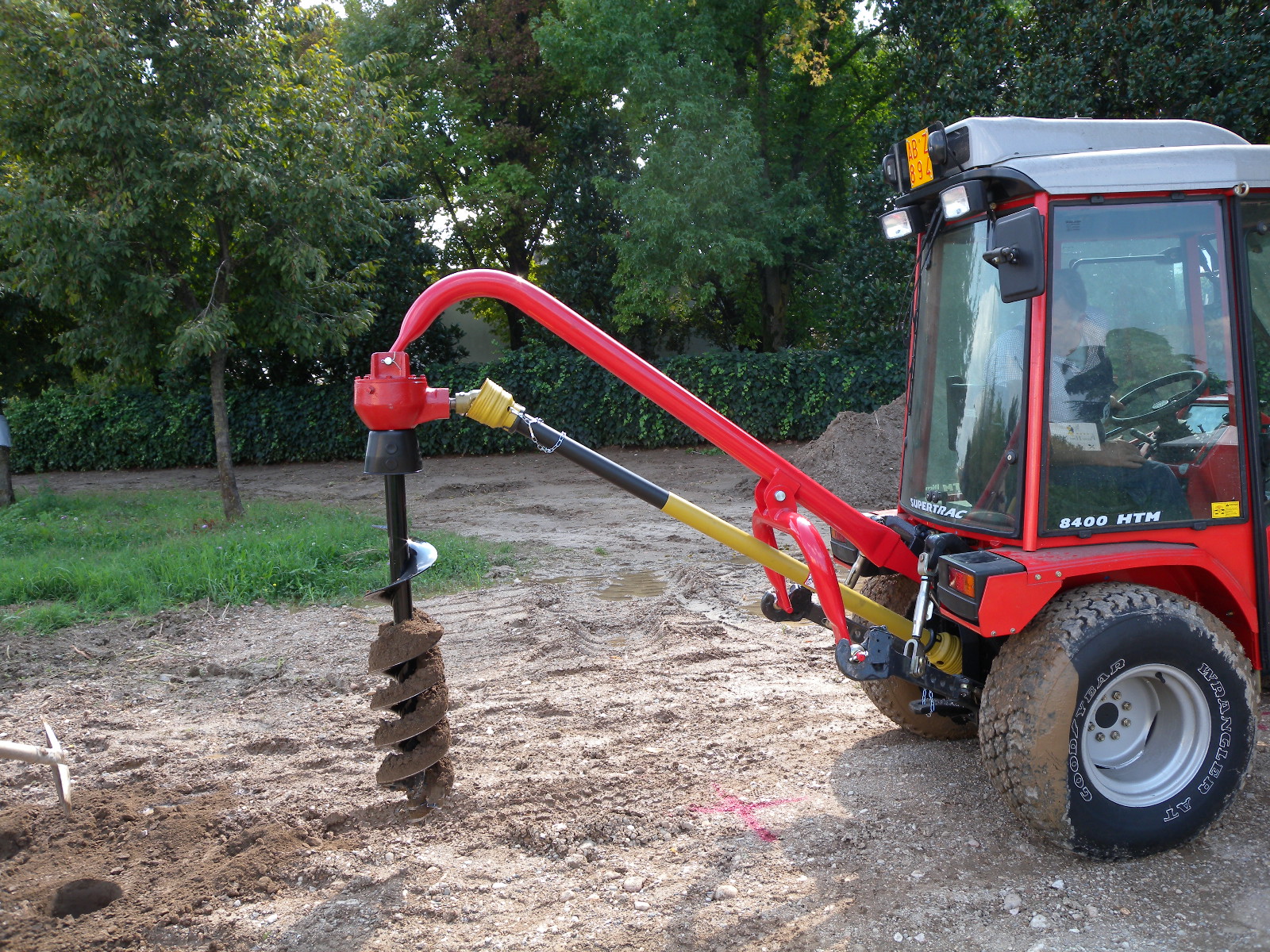

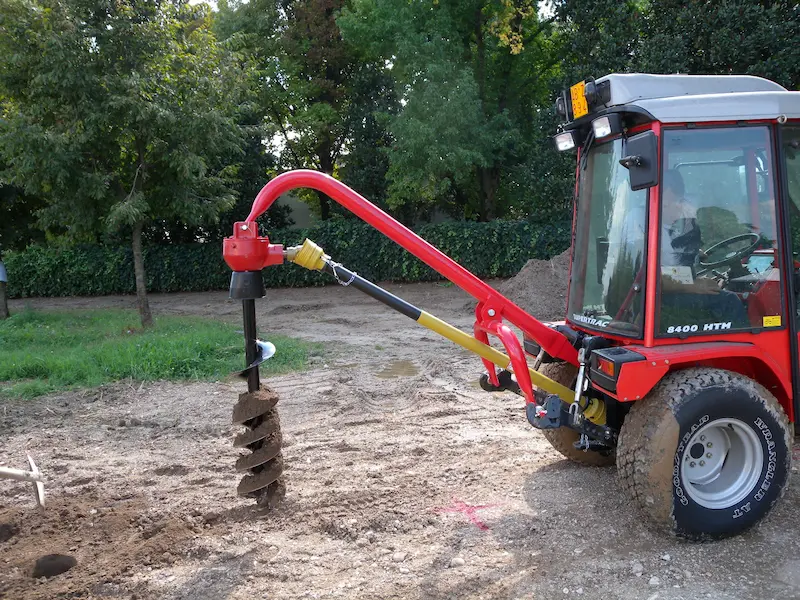

The Post hole diggers are simple but sturdy machines useful for planting trees, vineyard poles, light poles and fences. Two models are available: the 200-512 for tractors ranging from 18 to 40 HP and the 300-512 for tractors ranging from 18 to 50 HP. They are equipped with a solid frame made of reinforced tubes and a heavy duty gearbox to ensure great reliability under any working condition. The augers are available in diameters of 15, 23, 30, 46 and 61 cm and all sizes, except for the smaller one, are equipped with double flighting. The flighting is fully welded and the augers also feature a welded reinforcement collar where they are secured to the gearbox. Knives and points are replaceable.

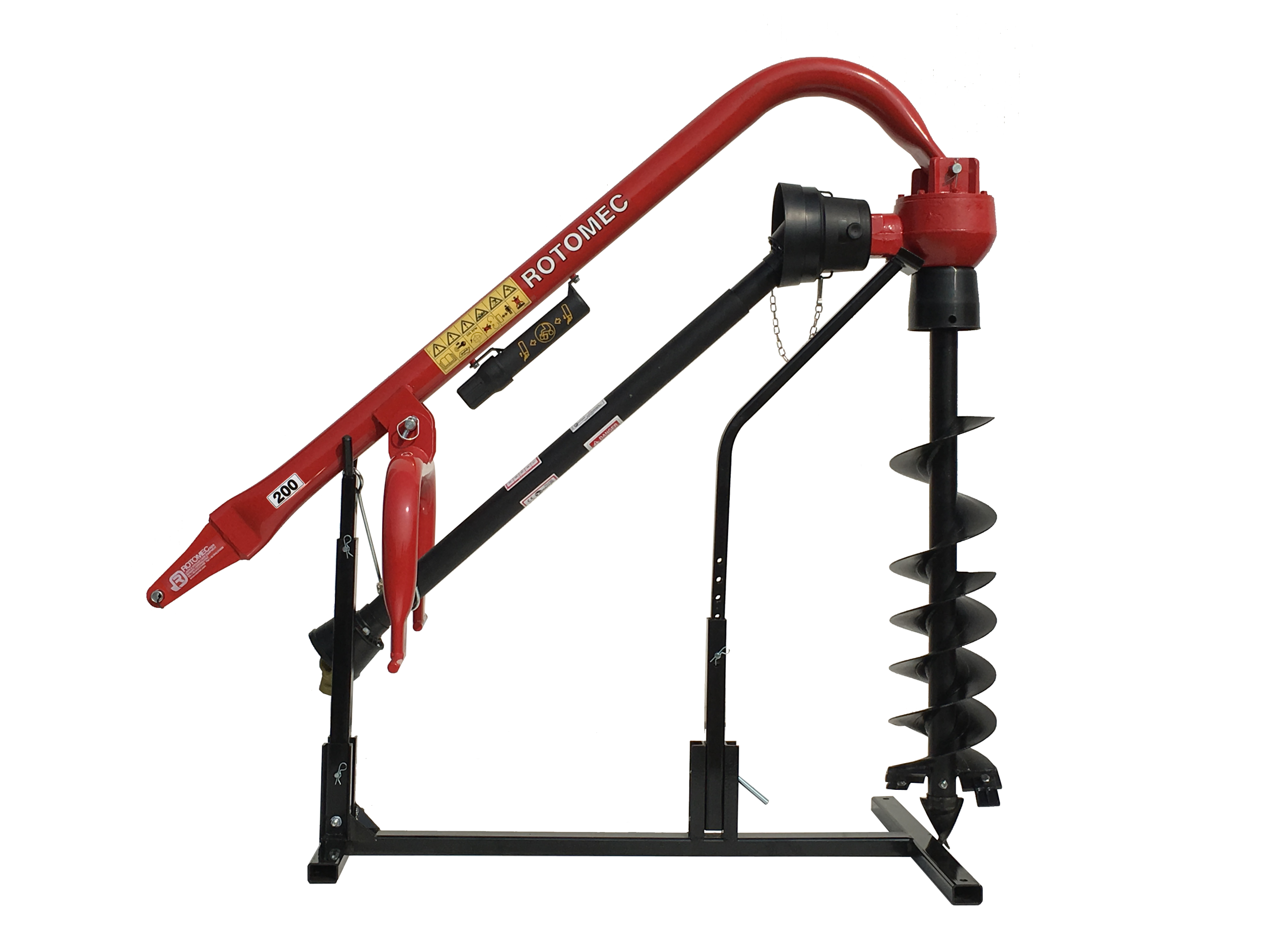

200-512 scontornato

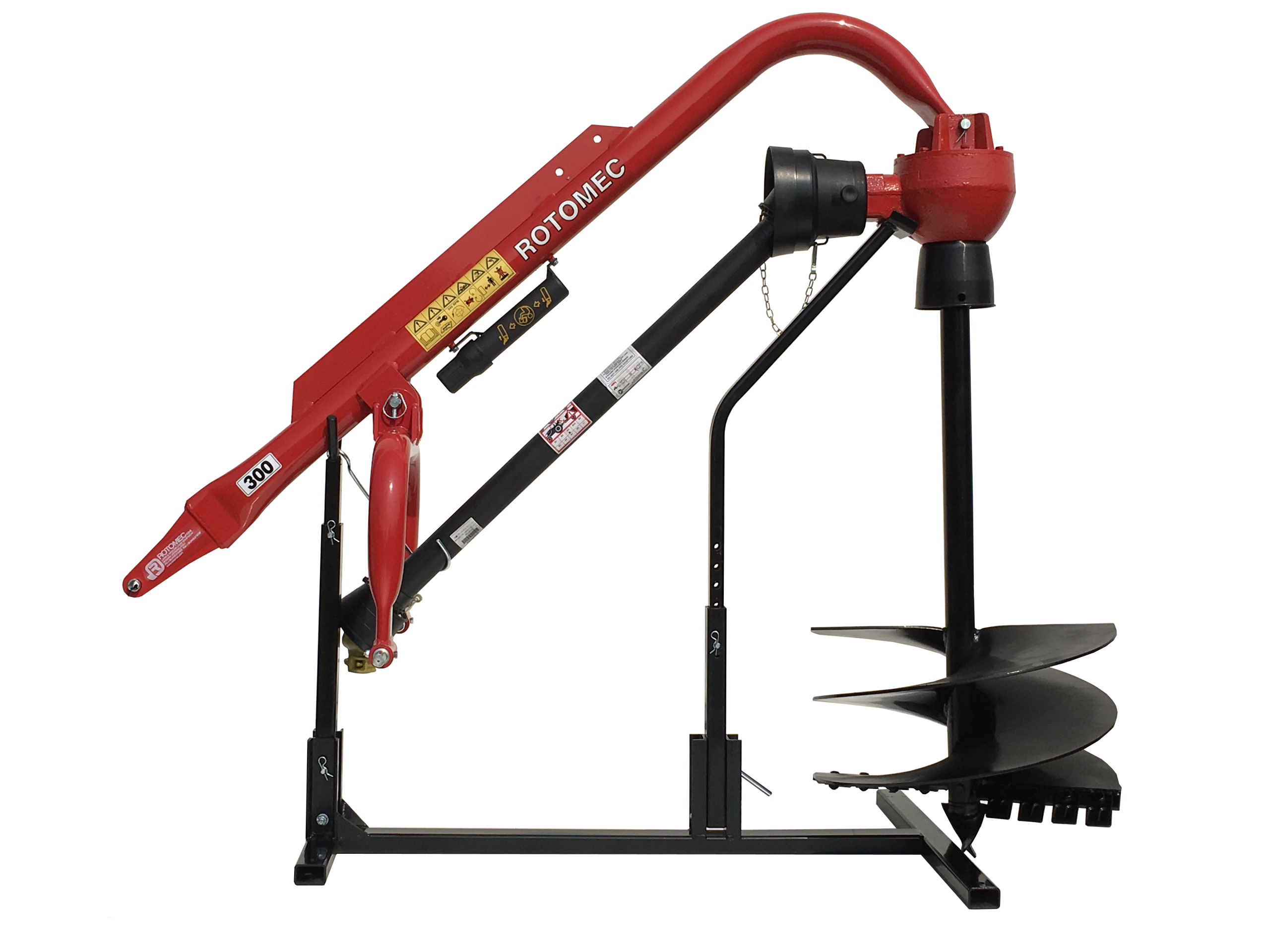

300-512 scontornato
0703 PHD con logo Rotomec
DSCN2874
previous arrow
next arrow

POST HOLE DIGGERS

Model

200-512

300-512

HP

18-40

18-50

Hitch

Cat. 1

Cat. 1 & 2

Boom OD (mm)

90

90 reinforced

Yoke OD (mm)

70

70 reinforced

Auger rpm

180

154

Gear ratio

3:1

3.5:1

Weight Kg

90

105

Ship Kg

105

120

Driveline 1 3/8"

ASAE cat. 3 shear bolt

ASAE cat. 3 shear bolt

AUGERS

Model

206-531

209-531

212-531

218-531

224-531

Fits models

200, 300

200, 300

200, 300

300

300

Size (mm)

150

230

300

460

610

Length (mm)

1220

1220

1220

1220

1220

Weight Kg

14

24

26

30

45

Flighting type

Single

Double

Double

Double

Double

Flighting thickness (mm)

4,76

4,76

4,76

6,35

6,35

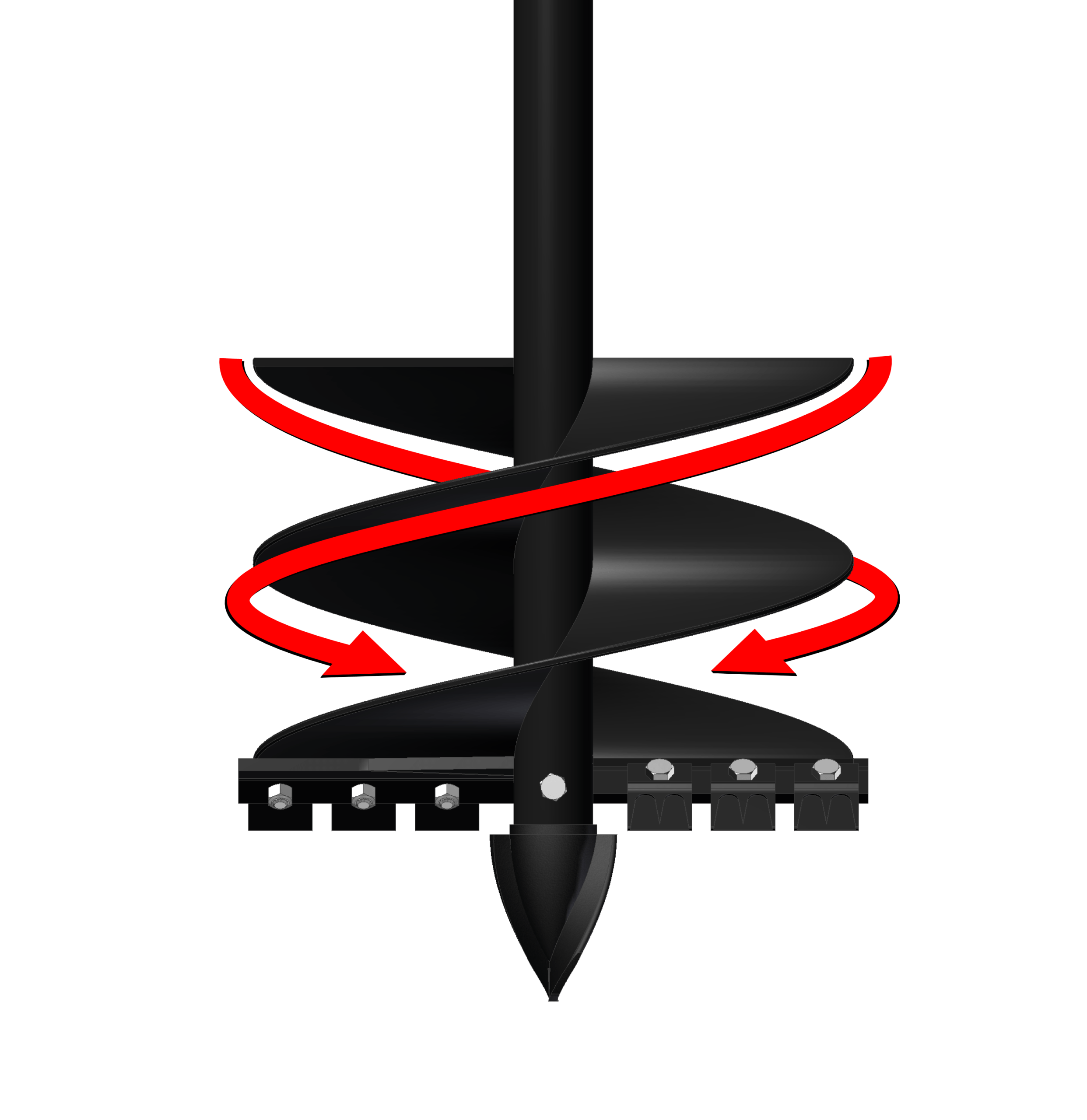

Double flighting

Heavy duty fully welded double flighting on all 230, 300, 460 and 610 mm augers.

Fish tail auger point

Fish tail auger point is standard on every auger size

Fully enclosed shear pin safety

Our driveline yokes have the industries first fully enclosed shear pin safety.

Reinforced boom

Models 300-512 and 400-512 have a reinforced boom and three point hitch.

Line of augers

Choice of 150, 230, 300, 460 and 610 mm with 1220 mm auger length.

Hydraulic downforce kit

0099154 Hydraulic downforce kit for model 200-512

Hydraulic downforce kit

0099155 Hydraulic downforce kit for model 300-512

Hook-up stand

0099851 Hook-up stand fits all models of Rotomec post hole diggers

Auger positioning handle

PHD003 Auger positioning handle fits all models of Rotomec post hole diggers

Operator’s manual

Parts manual
