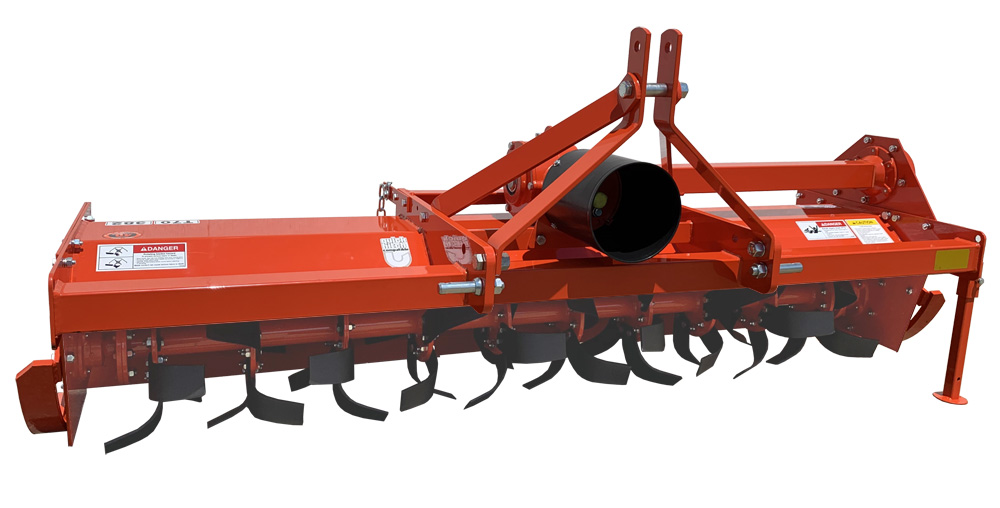

Till-Rite T70 rotary tillers

TILL-RITE T70

Rotary tillers with side-shift
40-70 HP (30-52 KW)
540 - Cat. 1

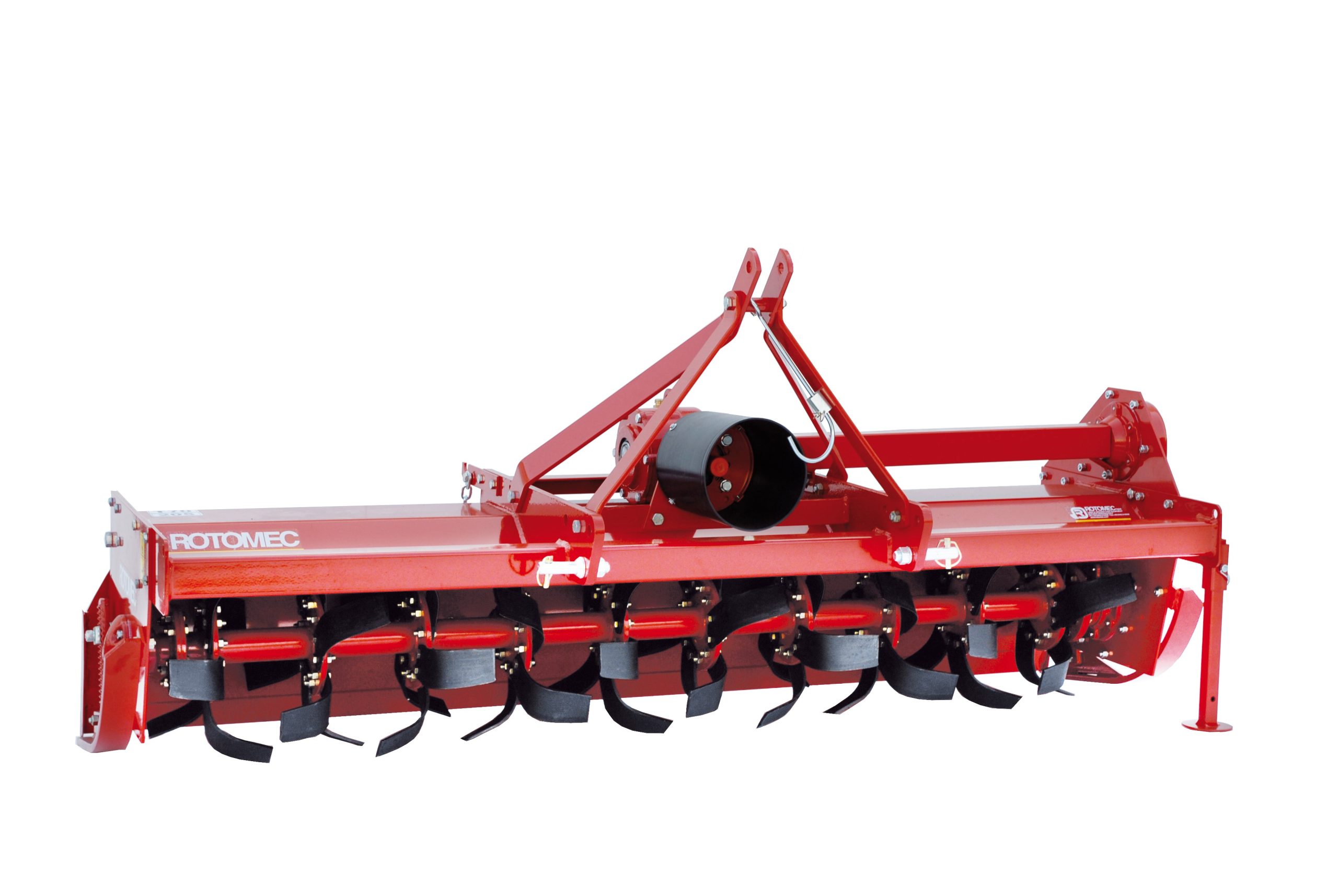

T70 chiara

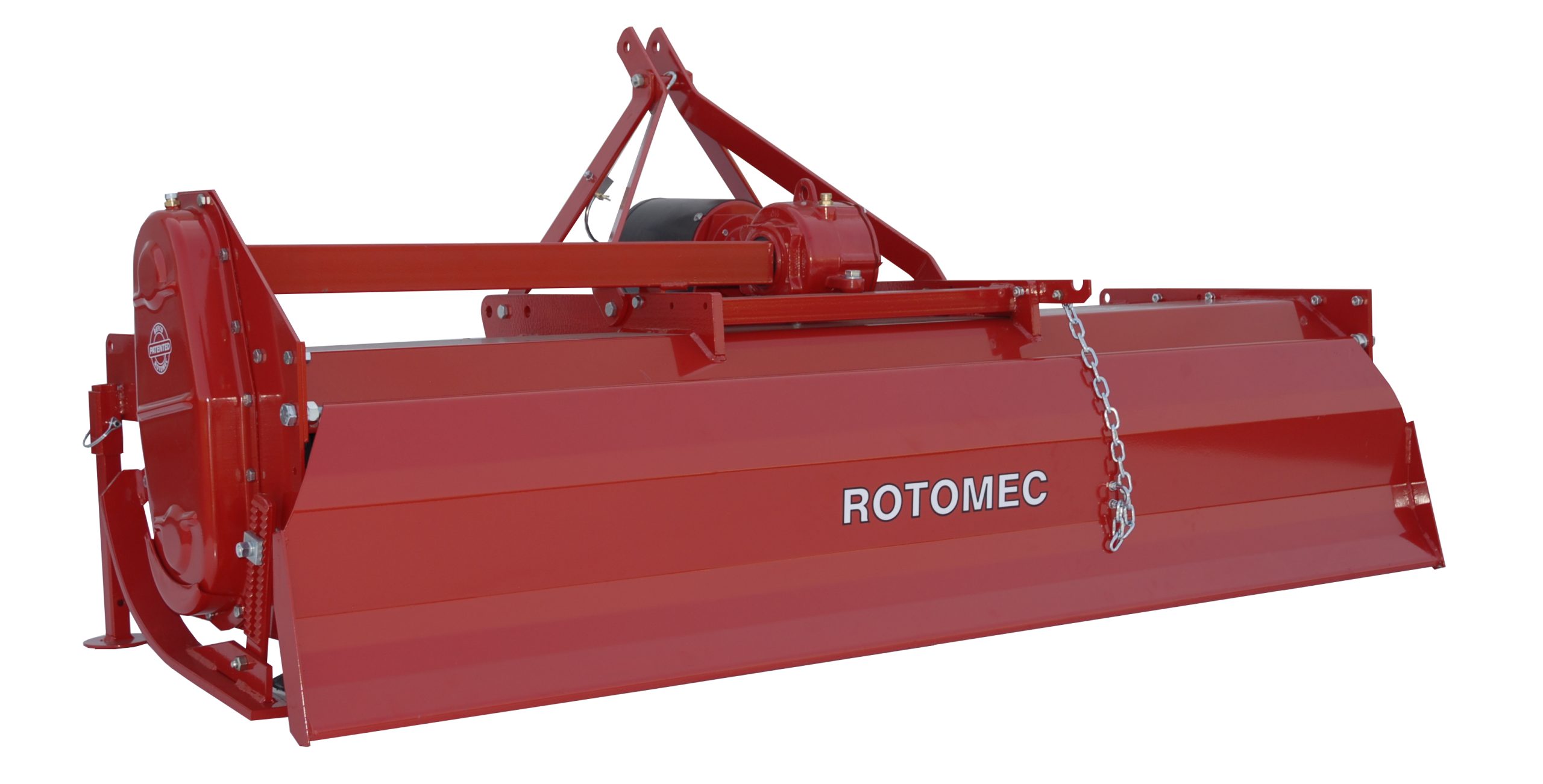

T70 lato cofano scontornata

T70 con logo Rotomec

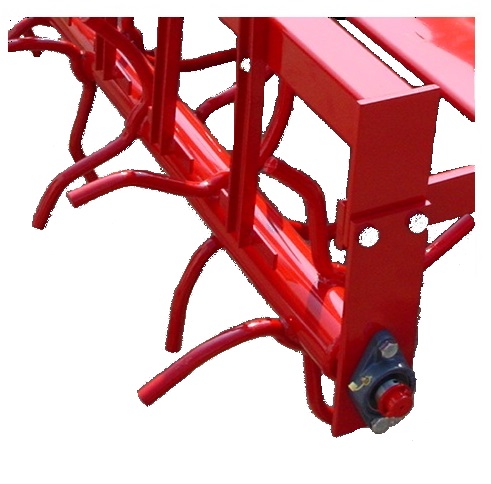

The T70 is a rotary tiller designed to work with tractors ranging from 30 to 70 HP at 540 rpm. It is the ideal machine for use anywhere from orchards to nurseries, from vineyards to greenhouses and all other types of landscaping. The high carbon steel rotor shaft allows for a working depth up to 22 cm. The rotor shaft also comes with double flanges on the side to facilitate blade replacement. These rotary tillers are available with forward or reverse tilling rotation. The tiller may be equipped either with side skids, or with a rear depth control roller that can either be caged or toothed.

T70 chiara

T70 lato cofano scontornata

T70 con logo Rotomec

TECHNICAL FEATURES
STANDARD FEATURES
OPTIONAL EQUIPMENT
MANUALS

MODELS WITH SLIP CLUTCH

Model	T70-366	T70-374	T70-382
HP	30-70	35-70	40-70
Working width (cm)	165	185	205
Overall width (cm)	185	205	225
Weight Kg	347	373	400
Ship Kg	362	388	415
Nr flanges	8	9	10
Nr blades	48	54	60
Chain sprockets	12-14	12-14	12-14
Rotor rpm	221	221	221
Maximum working depth (mm)	220	220	220
Driveline 1 3/8"	ASAE cat.6 slip clutch	ASAE cat.6 slip clutch	ASAE cat.6 slip clutch

Forward or reverse tilling rotation

Rotomec tillers may be set up with either a forward or reverse rotating rotor. When the rotor rotates forward the tiller will have a tendency to bury the rocks while when the tiller rotates backwards it will have a tendency to bring any rocks to the surface.

Gearbox manufactured by Rotomec

Unlike other manufacturers who purchase gearboxes from outside suppliers, Rotomec utilizes a gearbox built in-house using high strength steel for its gears and top of the line bearings and seals.

ASA 100 Chain drive

Lateral ASA 100 chain drive transmission in oil bath. Our chain transmissions are oversized specifically to avoid any downtime due to maintenance. Our Chain transmissions also offer over 180° gear coverage resulting in a smoother and better distributed power transmission.

Rotor supports

Rotor supports are made out of stamped steel making them more durable than those offered by competitors.

Flanged rotor shaft

The flanged rotor shaft allows operator to quickly disassemble the rotor from the tiller for easy and comfortable blade service and replacement.

Six blades per flange

The higher horsepower tractor for which this tiller is designed for, means that it is capable of handling the additional power requested for a rotor with six blades per flange.
