CYCLONE C50
Grooming mowers
20-50 HP (15-37 KW)
540 rpm - Cat. 1

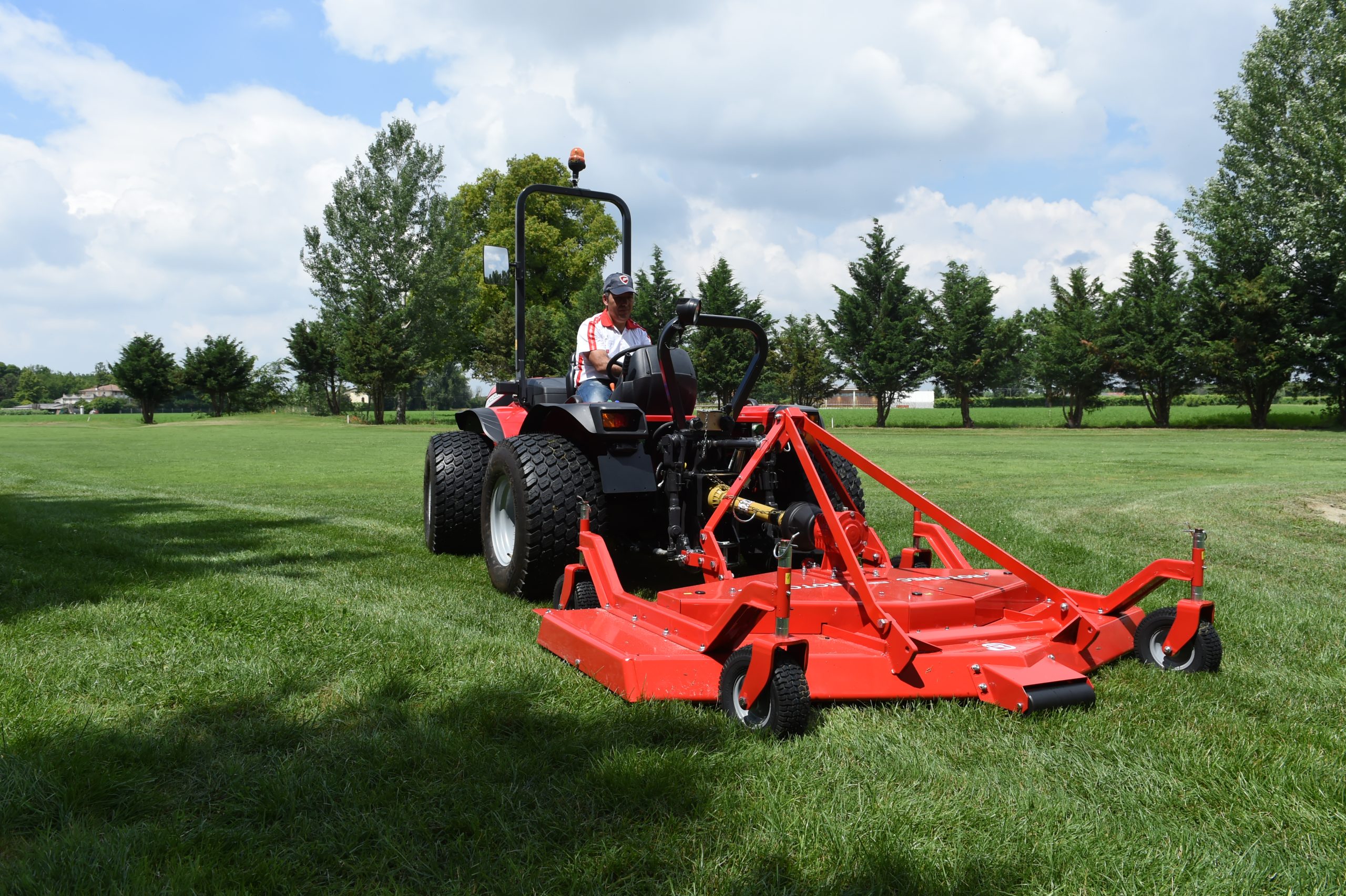

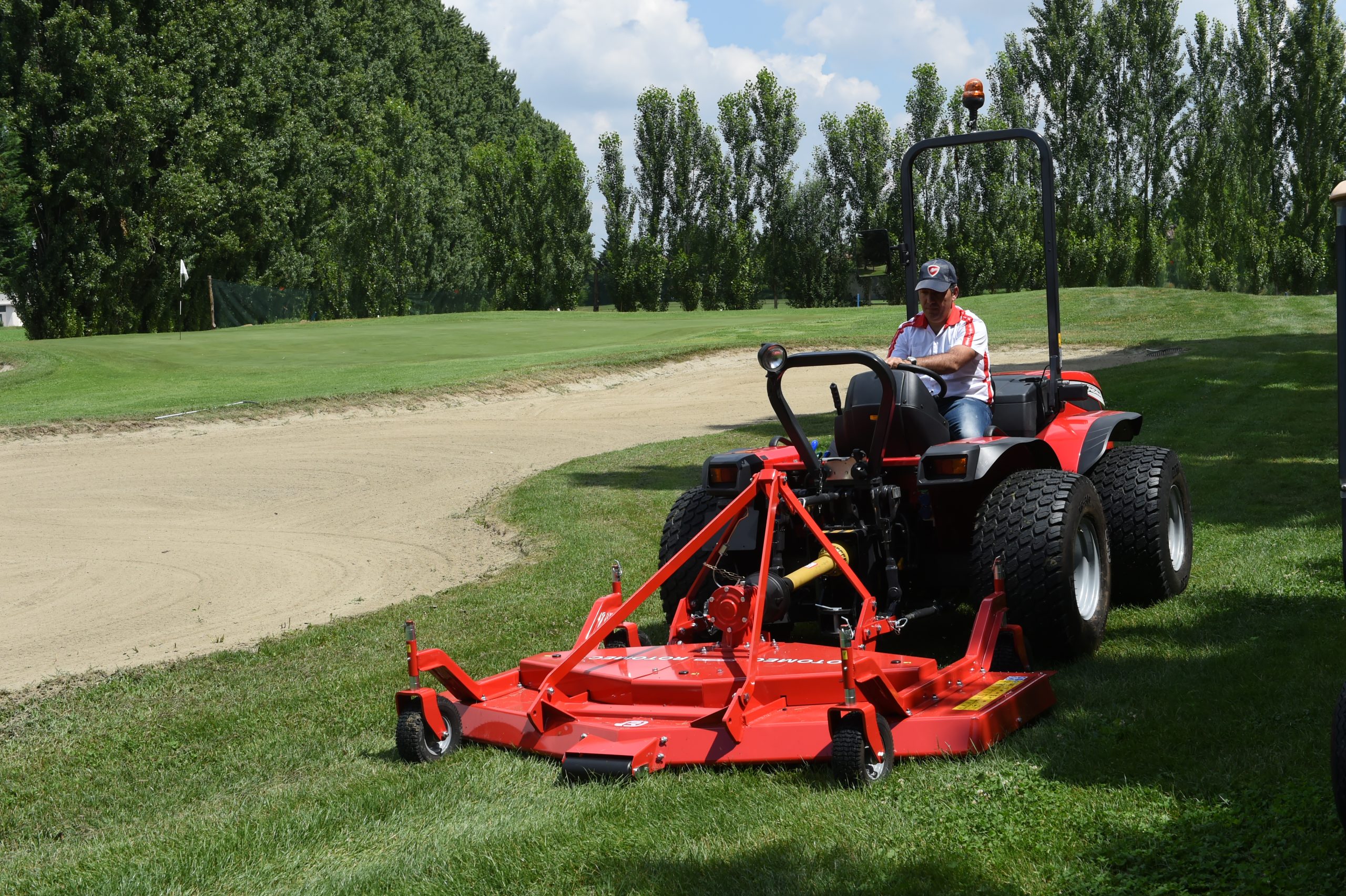

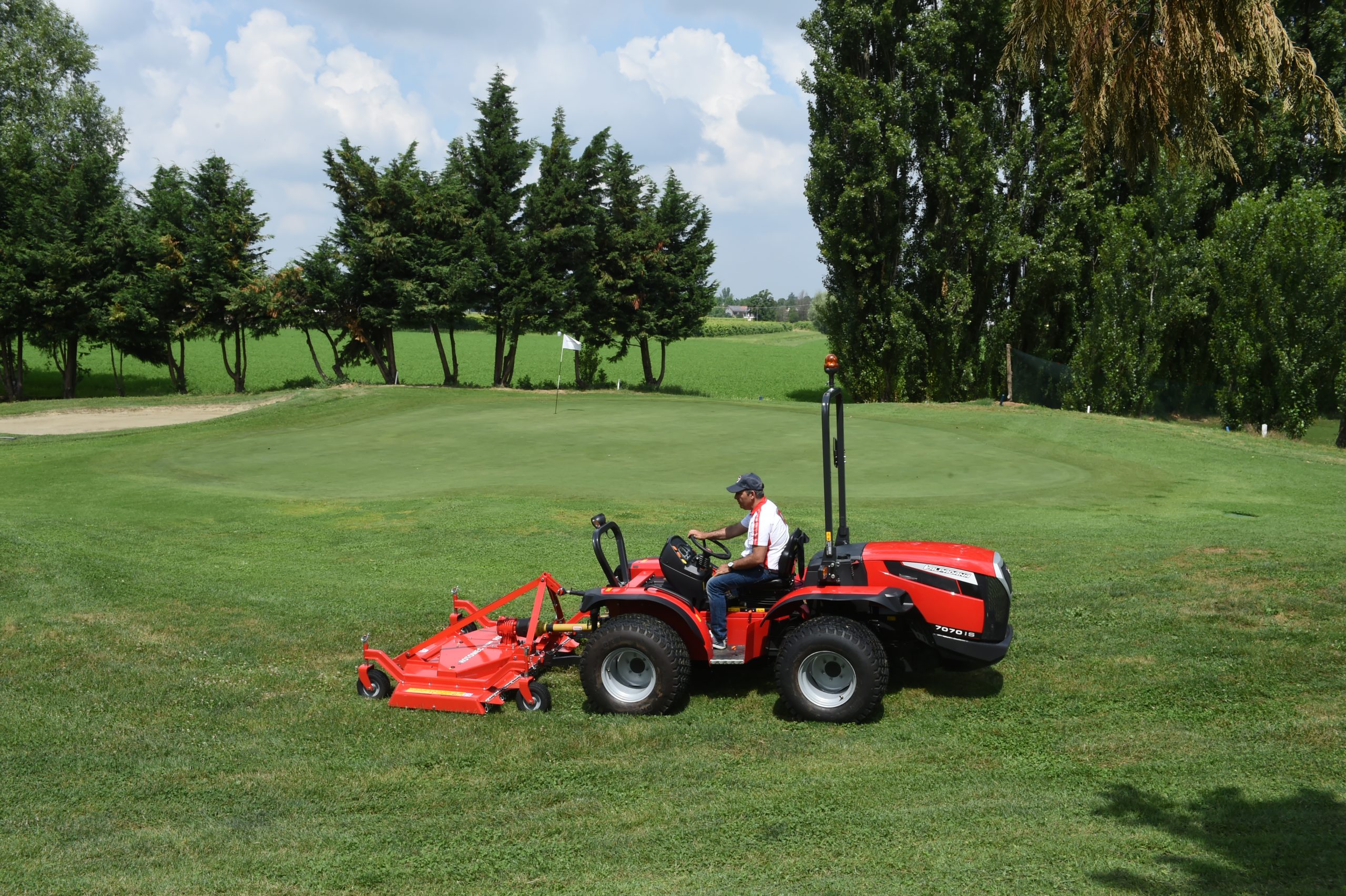

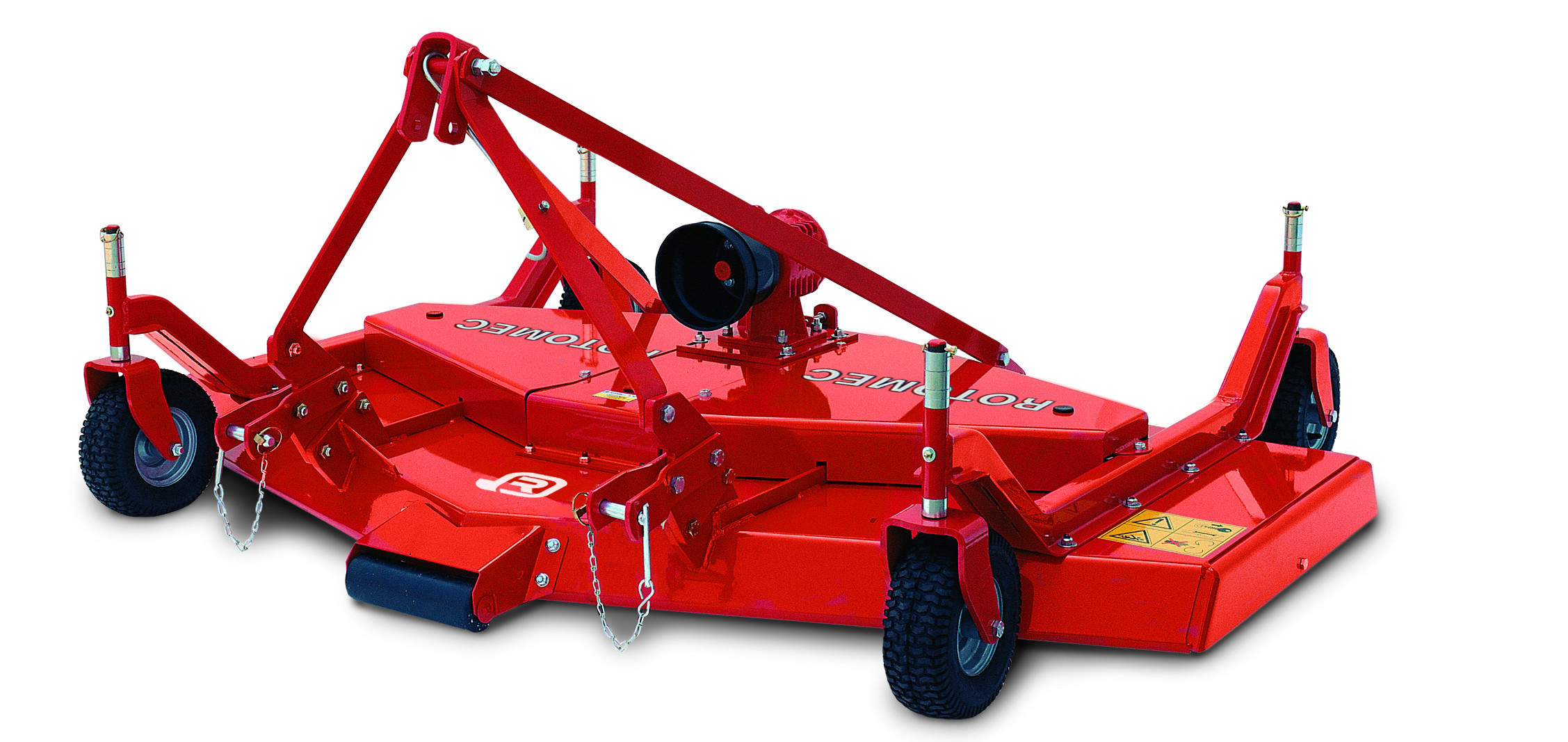

The Cyclone C50 is a three-spindle mower suitable for tractors ranging from 20 to 50 HP. It is available in four models with rear discharge and working widths of 120, 150, 180 and 210 cm. The machine is equipped with a sturdy frame with reinforcements in the areas where it is subject to the most strain and a double belt drive with manual tensioning of the belts. This solution allows for a perfect belt tension combined with longer belt life. The rear chains that are fitted with on all C50 mowers, divert any thrown objects towards the ground and are therefore indispensable for anyone who cuts grass in public parks, near roads, or near residential areas.
MODELS WITH SOLID TIRES (SIZE 250 mm x 80 mm)
Model | HP | Working width (cm) | Overall width (cm) | Weight Kg | Ship Kg | Rotor rpm | Blade tip speed (m/s) | Nr of blades | Cutting height (mm) | Nr Belts & type | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|
C50-RD4 | 20-50 | 120 | 130 | 240 | 255 | 3.475 | 77 | 3 | 25-125 | 2 SPBX | ASAE cat. 3 |
C50-RD5 | 20-50 | 150 | 157 | 250 | 265 | 3.210 | 86 | 3 | 25-125 | 2 SPBX | ASAE cat. 3 |
C50-RD6 | 25-50 | 180 | 189 | 272 | 287 | 2.605 | 85 | 3 | 25-125 | 2 SPBX | ASAE cat. 3 |
C50-RD7 | 30-50 | 210 | 219 | 313 | 328 | 2.195 | 83 | 3 | 25-125 | 2 SPBX | ASAE cat. 3 |
Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.
Gearbox with spiral gears
Gearboxes are manufactured by Rotomec and come equipped with spiral gears that ensure better power transmission, increase longevity and reduce noise.
540 rpm clockwise and anticlockwise transmission
Manual belt tensionning
Manual belt tensionner maintains constant tension on belts without stretching them like a typical spring loaded idler would. This means that belts last much longer and there is no spring loaded idler that needs to be disassembled at the end of the mowing season to prevent it from stretching the belts during the winter months.
Double belt transmission
Two heavy duty reinforced belts (SPBX) with manual tensionner provide over 180° coverage of all pulleys and reduce belt maintenance.
Axial grease fittings
Spindles are quipped with axial grease fittings that allow operator to grease spindle from the top without having to remove the belt shields.
Stamped steel reinforced wheel arms
Only Rotomec mowers are equipped with reinforced stamped steel wheel arms. These wheel arms are stronger than the ones made of bent tubing used by the competition and always guarantee a perfectly even surface for the mower to rest on.
Hard tires
Customers can choose between solid (250 mm x 80 mm) or pneumatic tires (280 mm x 100 mm)
During the purchase process the customer can choose the type of blade
Standard blades
Complete kit high lift blades
Complete kit flat blades
Transmission 1000 rpm
O1000C50 1000 rpm clockwise transmission
A1000C50 1000 rpm anticlockwise transmission
Mulching kit
0099511 Mulching kit for model C50-RD4
0099184 Mulching kit for model C50-RD5
0099185 Mulching kit for model C50-RD6
0099186 Mulching kit for model C50-RD7
Note: Mulching blades are also included in Mulching kits
Front antiscalp roller
0099915 Front antiscalping roller (standard on C50-RD7 model)
Three point hitch cat. ‘1N’
H1N48C50 Three point hitch cat ‘1N’ for C50-RD4
H1N60C50 Three point hitch cat ‘1N’ for C50-RD5
H1N60C50 Three point hitch cat ‘1N’ for C50-RD6
H1N84C50 Three point hitch cat ‘1N’ for C50-RD7
P.T.O. shaft tractor end yoke
P.T.O. shaft tractor end yoke Z6x21x25 for all C50 models
Air tires
AIRXXC50 4 air tires 280 mm ×100 mm for all C50 models
Triangular quick hitch kit (only female) for tractor
TRI48C50 Triangular quick hitch kit (only female) for tractor for C50-RD4
TRI60C50 Triangular quick hitch kit (only female) for tractor for C50-RD5
TRI72C50 Triangular quick hitch kit (only female) for tractor for C50-RD6
TRI84C50 Triangular quick hitch kit (only female) for tractor for C50-RD7
Triangular quick hitch kit for tractor
0099840 Triangular quick hitch kit for tractor for all C50 models
Mulching blades
0006795M Mulching blade for model C50-RD4
0006641M Mulching blade for model C50-RD5
0006845M Mulching blade for model C50-RD6
0006690M Mulching blade for model C50-RD7
Note: Mulching blades are also included in Mulching kits
