Cyclone C30-CE5H grooming mowers

CYCLONE C30-CE5H

Grooming mowers
Lawn tractors & ATV's
11.5 Hp Briggs & Stratton motor

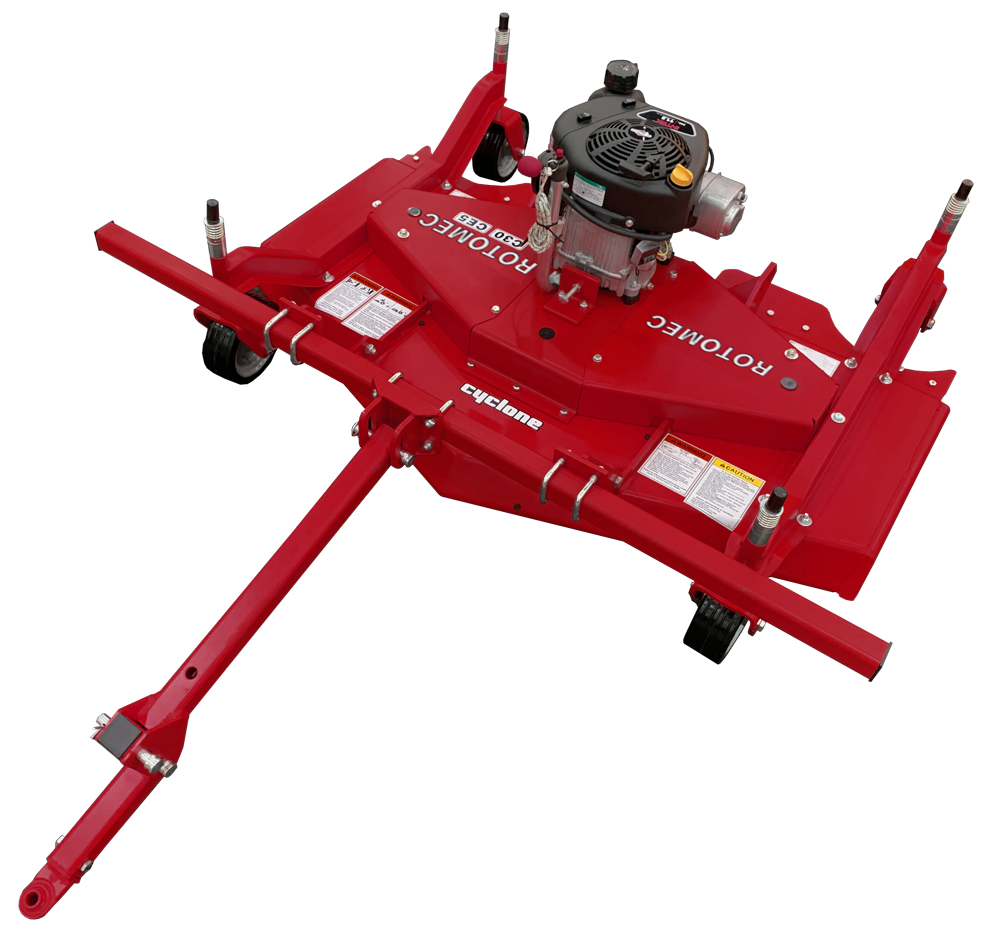

Cyclone C30-CE5H grooming mower

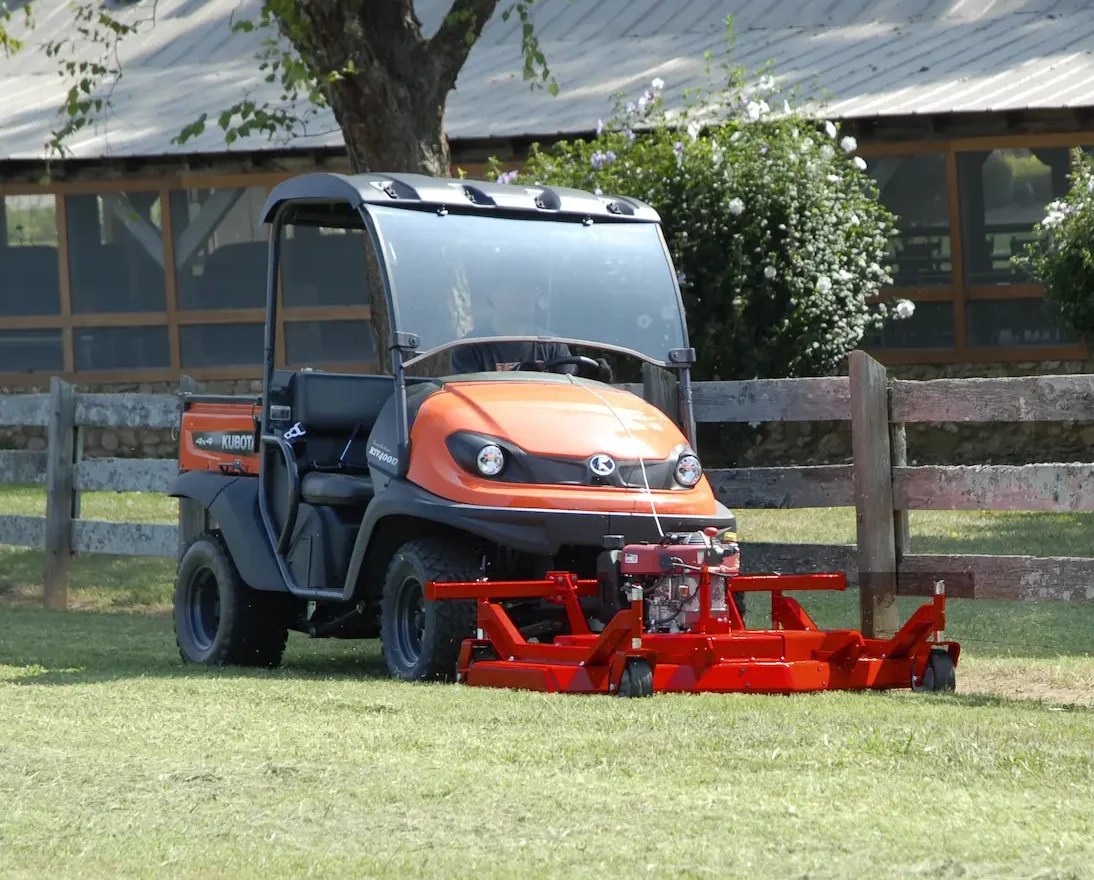

C30-CE5-working-2

The C30-CE5 is a push or pull type rear discharge three spindle engine driven finishing mower ideal for lawn tractors without PTO and for ATVs. The engine is a 10,5 HP Briggs & Stratton with a centrifugal clutch and comes with a safety kill switch.
The cutting height is adjustable from a minimum of 2,5 cm to a maximum of 10 cm and is done by adding or removing the spacers on each wheel yoke.

Cyclone C30-CE5H grooming mower

C30-CE5-working-2

TECHNICAL FEATURES
STANDARD FEATURES
OPTIONAL EQUIPMENT
MANUALS

MODEL WITH SOLID TIRES (SIZE 210 mm x 80 mm)

Model	C30-CE5H
Working width (cm)	150
Overall width (cm)	157
Weight Kg	176
Solid tires (mm)	4-210x80
Rotor rpm	2.673
Blade tip speed (m/s)	72
Nr of blades	3
Cutting height	25-100
Nr belts & type	2 BX
Motor	10.5 Hp

Reversible hitch for front and rear mounting

Reversible three point hitch for front and rear mounting on any lawn tractor, ATV or UTV.

Briggs & Stratton 11.5 Hp motor

Powerful 11.5 Hp Briggs & Stratton OHV motor with centrifugal clutch, accelerator and safety kill switch.

Model 21R807, Power 11.5 HP, Disp. 344cc, Start recoil, Shaft Orientation Vertical, Shaft Ø 2,54 cm x 8,03 cm keyway and tapped 7/16-20, Mount 25.4 cm bolt circle, Fuel Tank 2.65 L., Size 40.64 cm x 41.91 cm x 40.64 cm

Front 5,08 cm receiver hitch and rear Cat. 1 ball hitch included

Mowers are delivered both with 5,08 cm receiver hitches for front mount applications and Cat. 1 ball hitch for when being towed behind a tractor.

UP to 195 cm offset

Hitch allows operator to offset mower up to 195 cm left or right of center.

Height adjustment bar

Tow bar doubles as height adjustment bar allowing operator to quickly set the cutting height of the mower.

Double belt transmission

Heavy duty reinforced belts (BX) with spring loaded tensioner provide over 180° coverage of all pulleys.

Cast iron pulleys

Heavy duty, individually balanced cast iron pulleys are more durable than steel or plastic ones often used by competitors and do not get damaged whenever serviced.

Axial grease fittings

Spindles are quipped with axial grease fittings that allow operator to grease spindle from the top without having to remove the belt shields.

Stamped steel reinforced wheel arms

Only Rotomec mowers are equipped with reinforced stamped steel wheel arms. These wheel arms are stronger than the ones made of bent tubing used by the competition and always guarantee a perfectly even surface for the mower to rest on.
