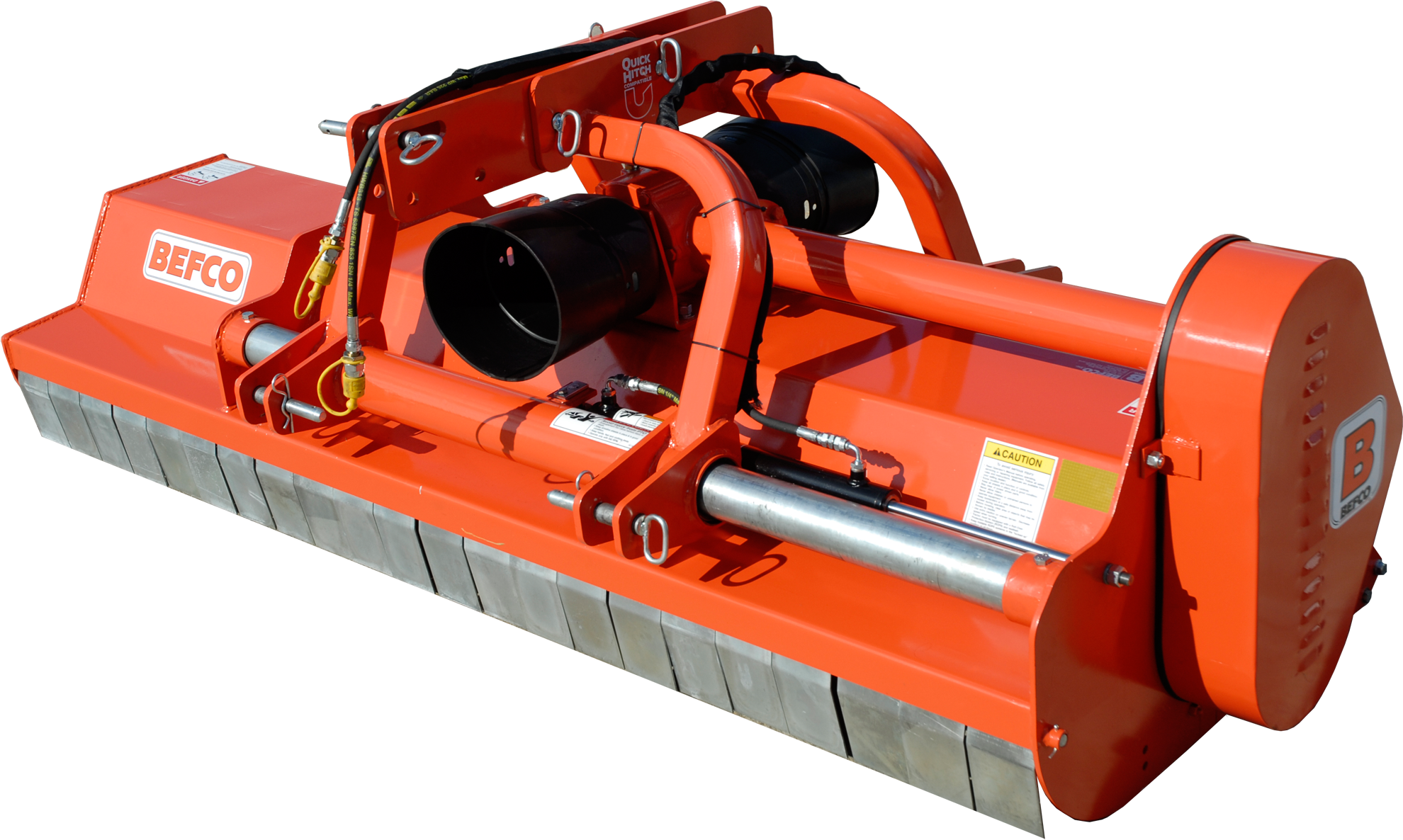

DESTROYER D90

Flail shredders with side shift
40-90 HP (30-67 KW)
540 rpm - Cat. 1 & 2

The Destroyer D90 is a sturdy, professional and easy to use shredder engineered for tractors from 40 to 90 HP with category 1 and 2 three point hitch. It is especially designed to offer the best performance in cutting and pulverizing corn stalks and other row crops, heavy grass from set-aside fields, tree prunings in orchards, municipal mowing and wherever professional, accurate and safe shredding are required. It is available in 3 working widths of 150, 180 and 220 cm. The unit is equipped with a belt driven transmission with 4 XPBX type belts and a manual belt tensioner. The rotor has a diameter of 133 mm and carries heavy hammer type blades capable of cutting stalks up to 5 cm of diameter. The D90 comes standard with a hydraulic cylinder that allows the operator to offset the shredder up to 40 cm to the right (30 cm on the 150 cm wide model). The cutting height can vary from a minimum of 2 cm to a maximum of 13 cm and is adjusted through the rear roller which is also equipped with a roller scraper. The driveline is equipped with an overrunning clutch.

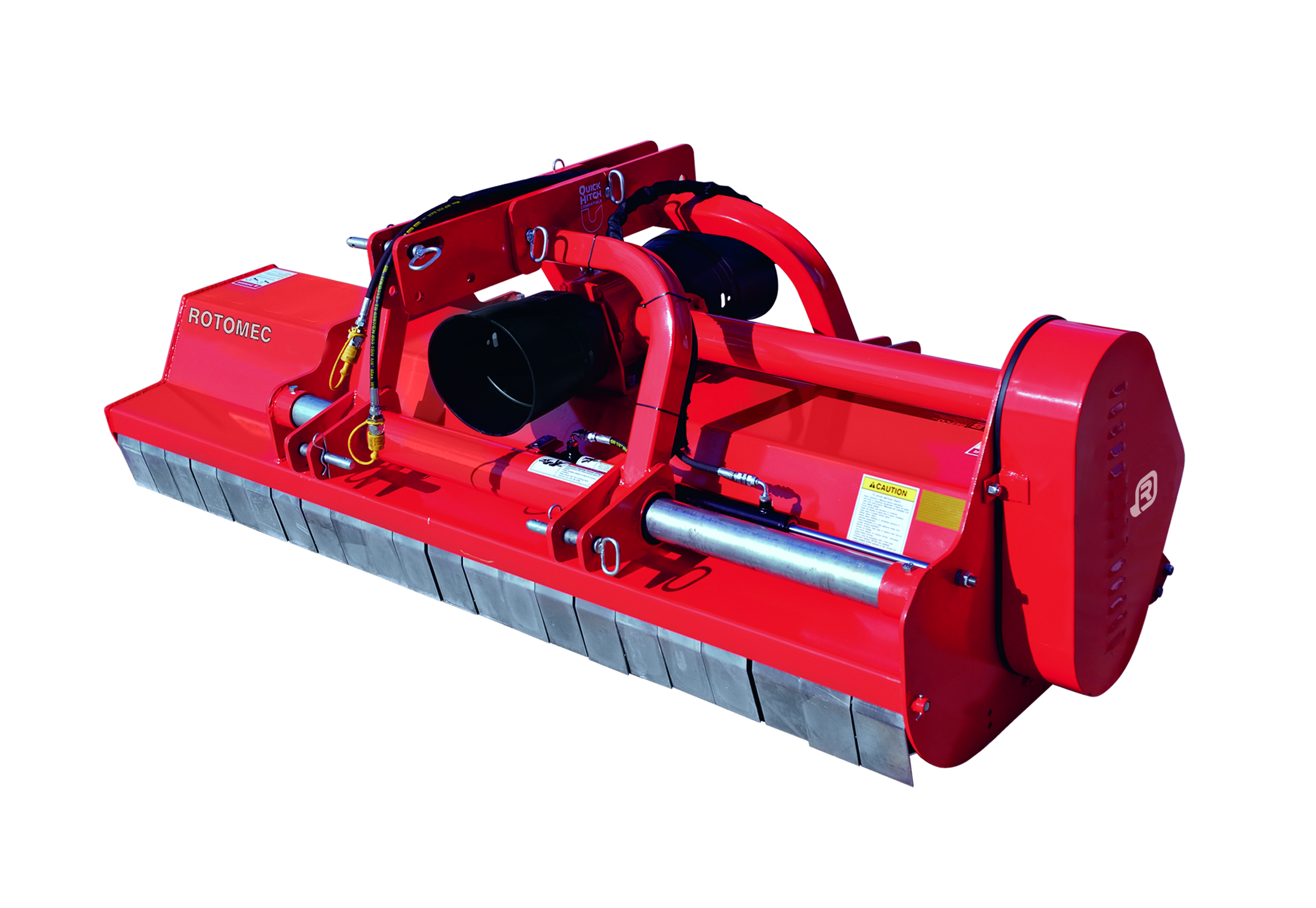

0703 D90 scontornata

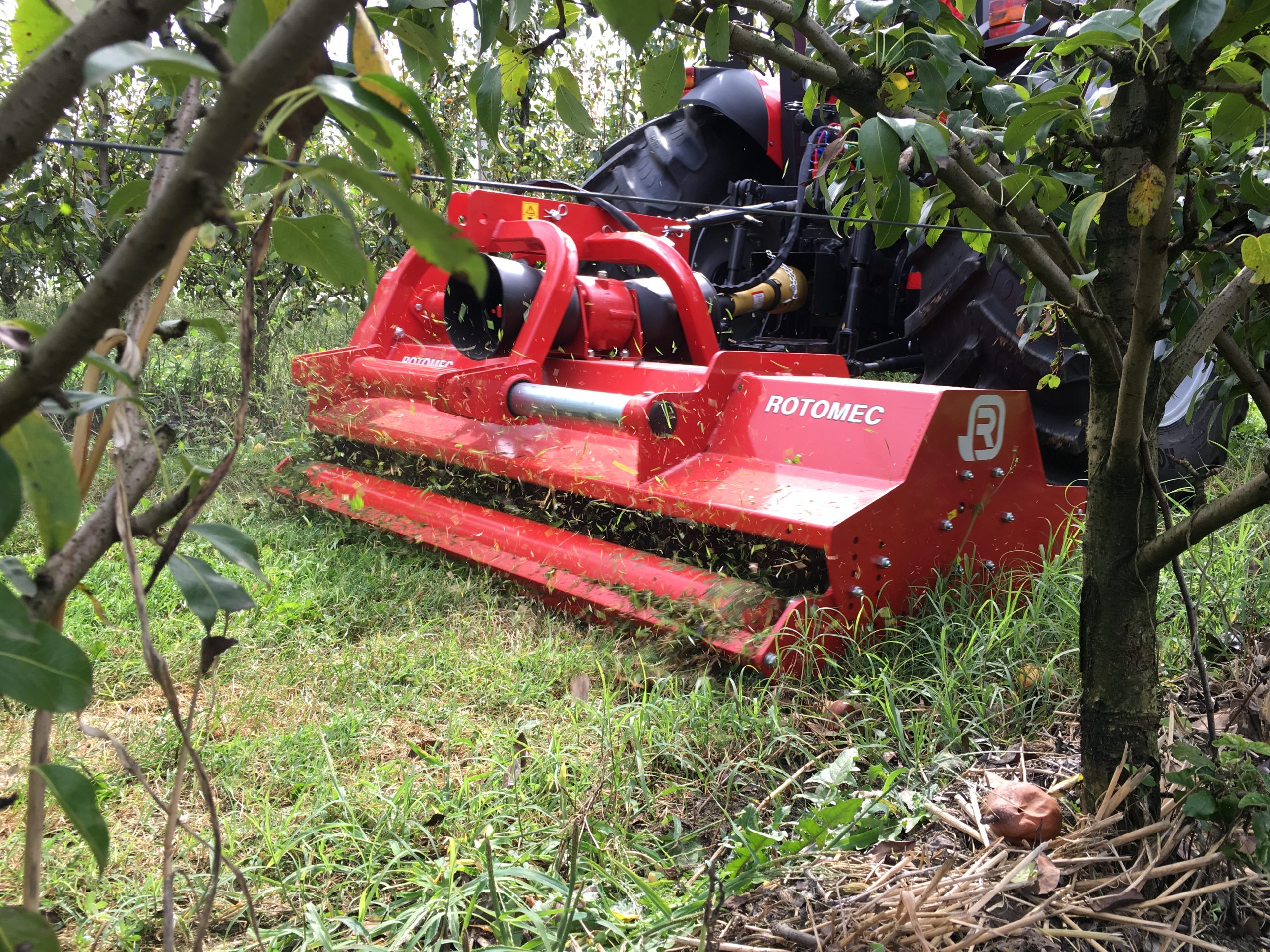

D90 FOTO PRINCIPALE

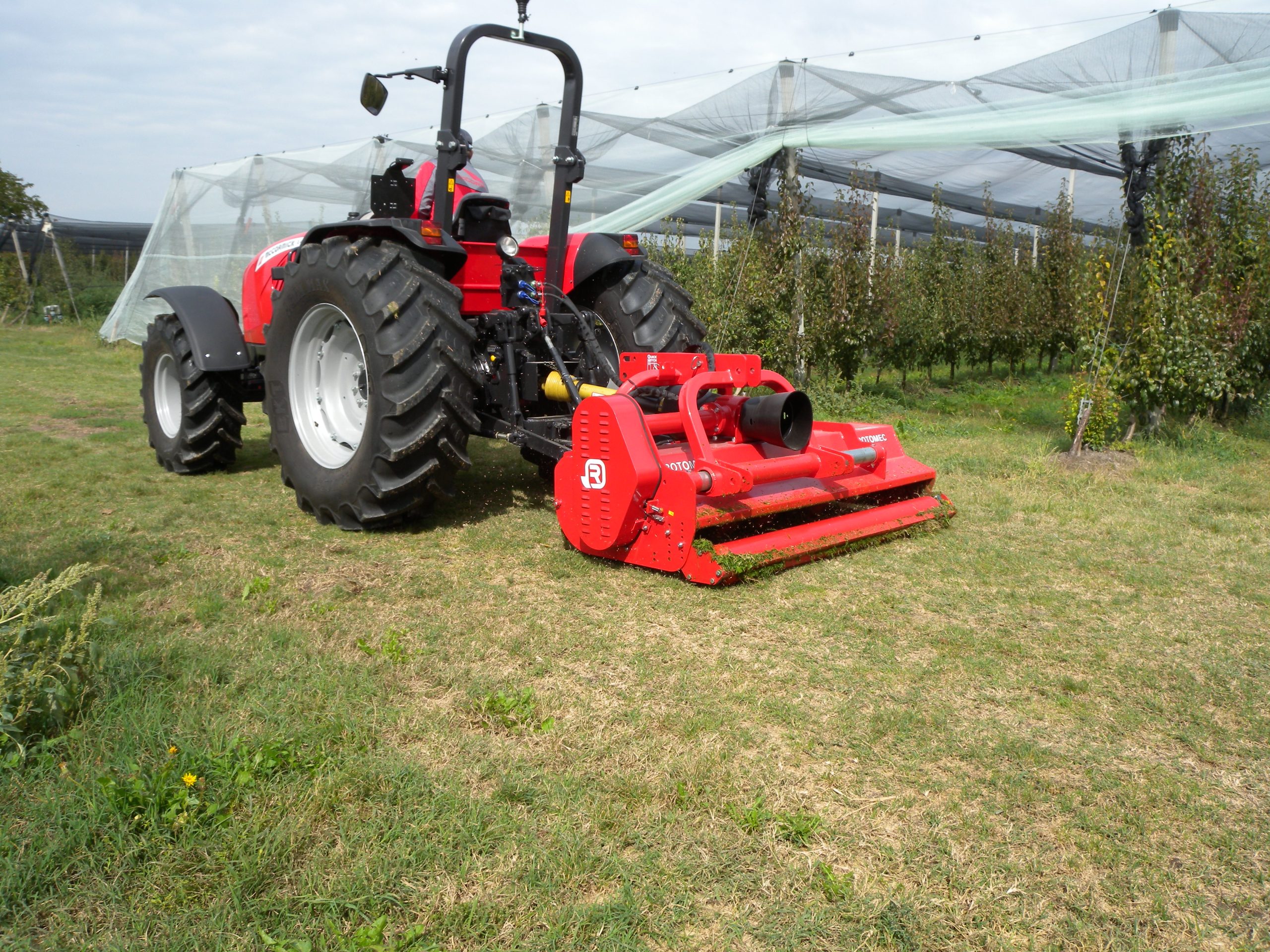

FOTO 3

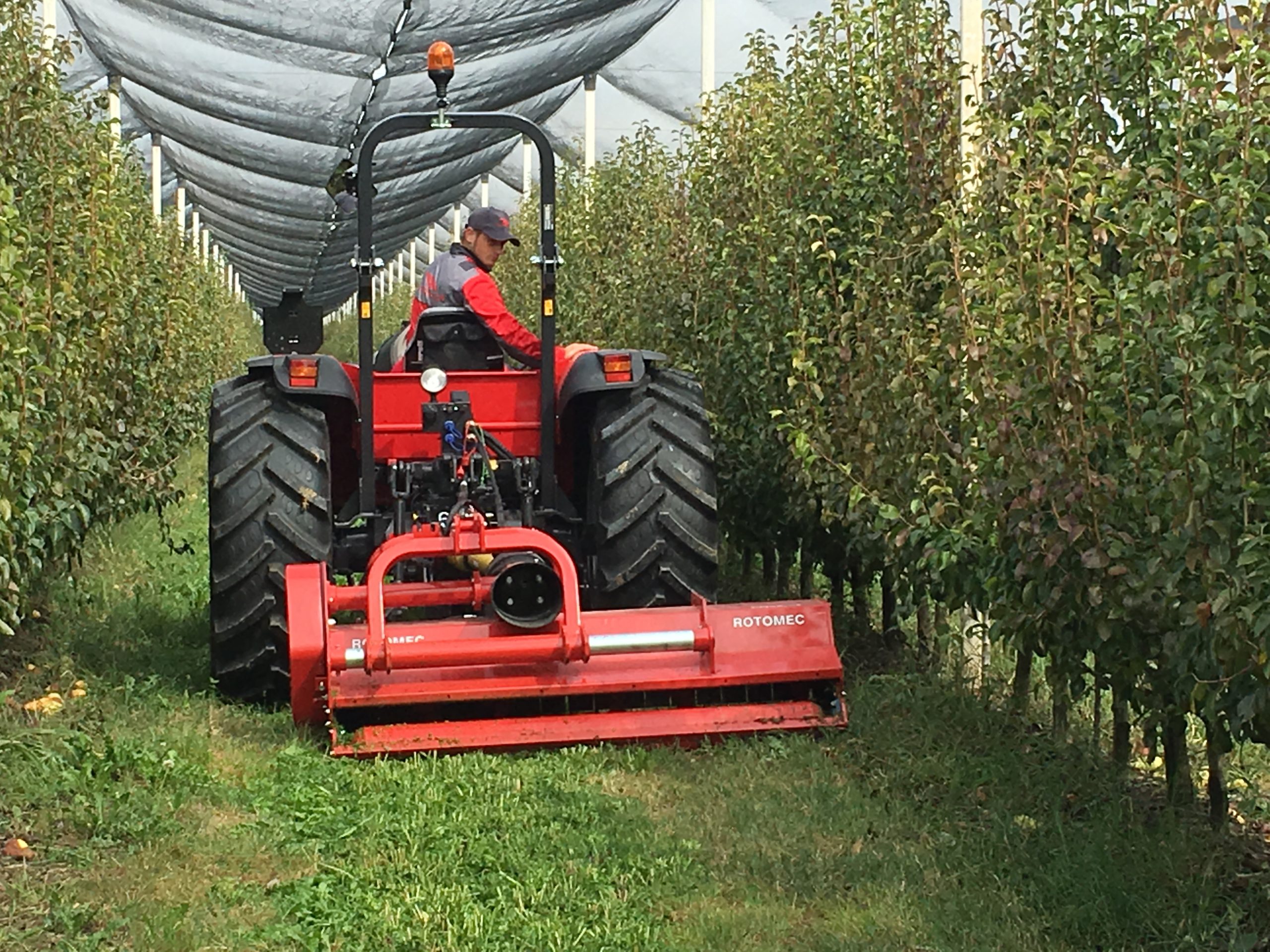

FOTO 2
previous arrow
next arrow
ModelHP

Working width (cm)

Overall width (cm)

Weight Kg

Ship Kg

Rotor rpm

Blades tip speed (m/s)

Nr of Hammers

Cutting height (mm)

Nr Belts & type

Hydraulic side-shift

Driveline 1 3/8"

D90-06040-90

150

175

570

585

1.961

42

16

20-130

4 XPBX

12"

ASAE cat. 6

overrunning clutch

D90-07250-90

180

205

610

625

1961

42

20

20-130

4 XPBX

16"

ASAE cat. 6

overrunning clutch

D90-08860-90

220

245

676

700

1.961

42

24

20-130

4 XPBX

16"

ASAE cat. 6

overrunning clutch

Reversible hitch for front and rear mounting

Reversible three point hitch for front and rear tractor mounting.

Reversible “A” frame

“A” frame design supports weight of the unit front and back and allows for quick front or rear tractor mounting.

Gearbox by Rotomec

Gearboxes are manufactured by Rotomec and always assembled with top of the line gears, bearings and seals to ensure years of trouble free usage.

Cast iron rotor supports

Our cast iron rotor supports are designed and built in-house and assembled using spherical self-aligning bearings.

Hydraulic offset cylinder

All D90’s are equipped with a hydraulic cylinder that allows operator to offset the mower to the right of the tractor by 12″ on D90-060 and 16″ on D90-072 and D90-088 models.

Heavy duty belt driven transmission

Belt driven transmission with four heavy duty XPBX type belts and manual belt tensionner

Heavy 2 lbs. hammer blades

Heavy hammer blades allow shredder to mow down material up to 2″ in diameter making it ideal for mowing in orchards, vineyards and set-aside fields.

Height adjustment roller

Adjustable cutting height from 3/4″ to 5″ is set by raising and lowering the rear roller.

Clockwise rotor rotation

Clockwise rotor rotation allows cut debris to be thrown up and around the rotor and then straight down into the ground, reducing the risk caused by thrown objects.

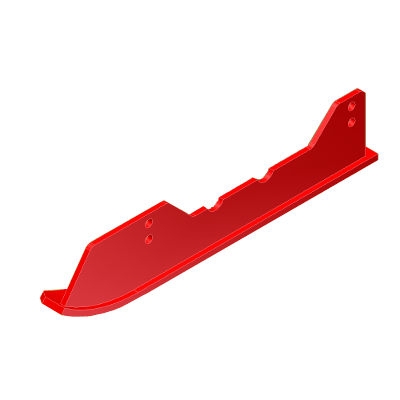

Side skids

0099969 side skids

Gearbox with dual PTO (factory installed)

GDTXXD90 Gearbox with dual PTO

Operator’s & Parts manual
