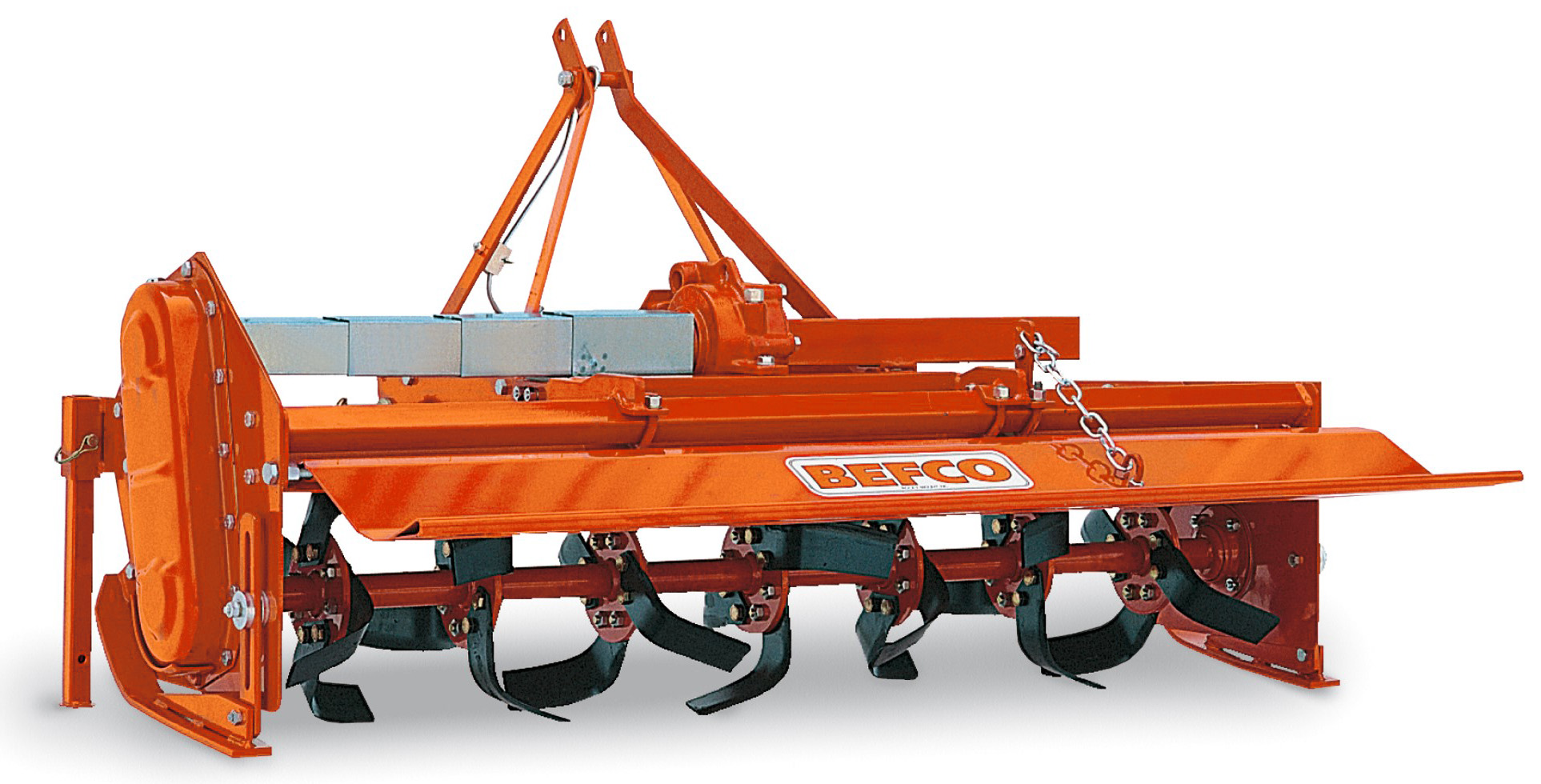

TILL-RITE T40
Rotary tillers with side-shift
20-40 HP (15-30 KW)
540 rpm - Cat. 1

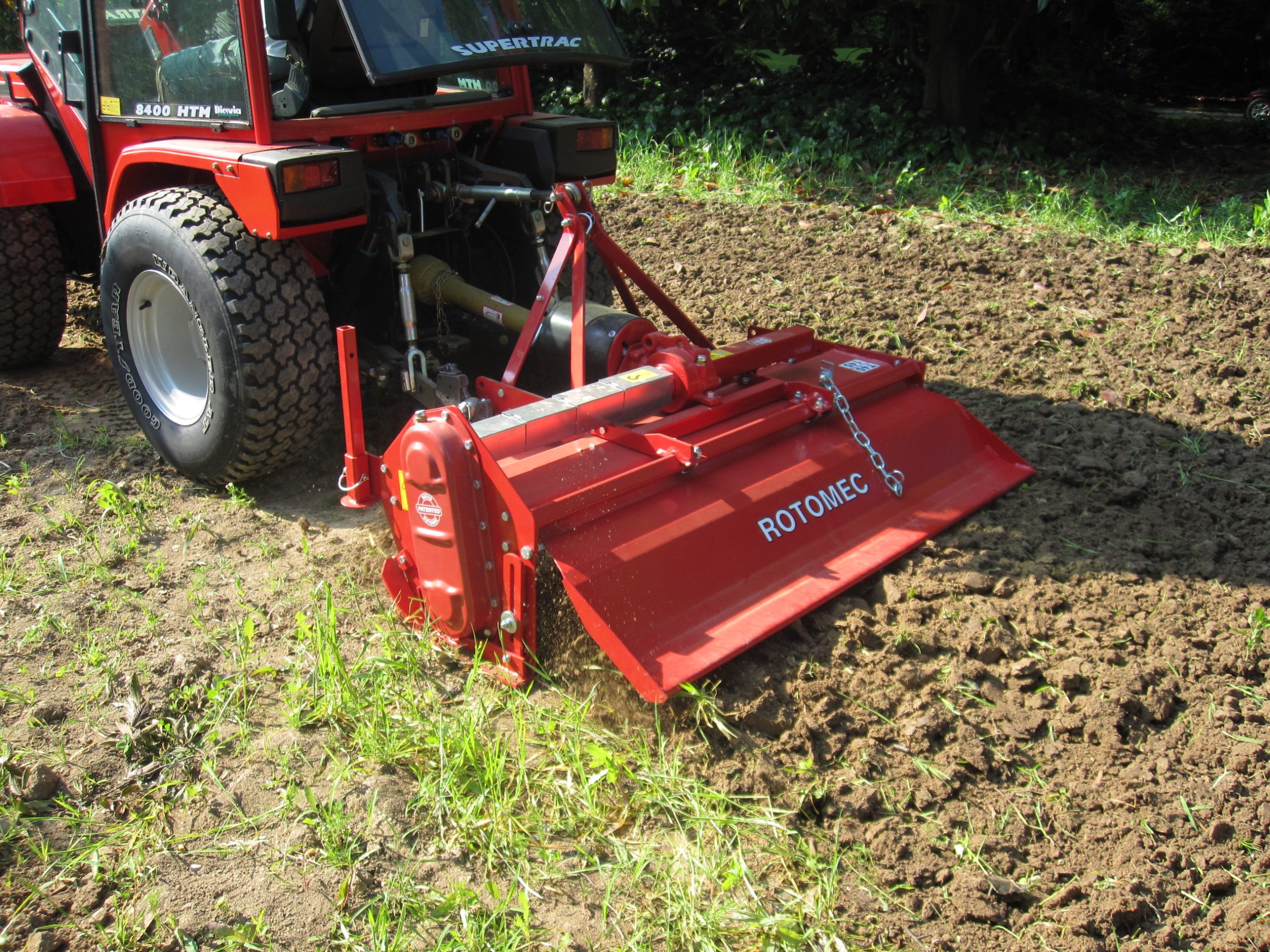

The T40 is a side-shift rotary tiller designed to work with tractors ranging from 20 to 40 HP at 540 rpm. It is the ideal machine for use anywhere from orchards to nurseries, from vineyards to greenhouses and all other types of landscaping. The high carbon solid steel rotor shaft allows for a working depth up to 18 cm. The rotor shaft also comes with double flanges on the side to facilitate blade replacement. The smooth manual side-shift system requires no lever to operate allowing the tillers to work totally shifted to the right, therefore under plants, sidewalks and flowerbeds, as well as in central position just like any normal centered tiller covering both tractor tire tracks. The T40 also offers the possibility of reversing the chain gears allowing you to increase the speed of the rotor and therefore obtain further ground pulverization on the first pass.
MODELS WITH SHEAR BOLT
| Model | HP | Working width (cm) | Overall width (cm) | Weight Kg | Ship Kg | Side-shift (cm) | Nr Flanges | Nr Blades | Chain sprockets | Rotor rpm | Maximum Working depth (mm) | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T40-142 | 20-40 | 105 | 120 | 165 | 180 | 80 | 5 | 20 | 11-14 | 231/375 | 180 | ASAE cat. 3 shear bolt |
| T40-150 | 25-40 | 125 | 140 | 185 | 200 | 100 | 6 | 24 | 11-14 | 231/375 | 180 | ASAE cat. 3 shear bolt |
| T40-158 | 30-40 | 145 | 160 | 205 | 220 | 120 | 7 | 28 | 11-14 | 231/375 | 180 | ASAE cat. 3 shear bolt |
| T40-166 | 32-40 | 165 | 180 | 235 | 250 | 140 | 8 | 32 | 11-14 | 231/375 | 180 | ASAE cat. 3 shear bolt |
MODELS WITH SLIP CLUTCH
| Model | HP | Working width (cm) | Overall width (cm) | Weight Kg | Ship Kg | Side-shift (cm) | Nr Flanges | Nr Blades | Chain sprockets | Rotor rpm | Maximum Working depth (mm) | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| T40-242 | 20-40 | 105 | 120 | 170 | 185 | 80 | 5 | 20 | 11-14 | 231/375 | 180 | ASAE cat. 3 slip clutch |
| T40-250 | 25-40 | 125 | 140 | 190 | 205 | 100 | 6 | 24 | 11-14 | 231/375 | 180 | ASAE cat. 3 slip clutch |
| T40-258 | 30-40 | 145 | 160 | 210 | 225 | 120 | 7 | 28 | 11-14 | 231/375 | 180 | ASAE cat. 3 slip clutch |
| T40-266 | 32-40 | 165 | 180 | 240 | 255 | 140 | 8 | 32 | 11-14 | 231/375 | 180 | ASAE cat. 3 slip clutch |

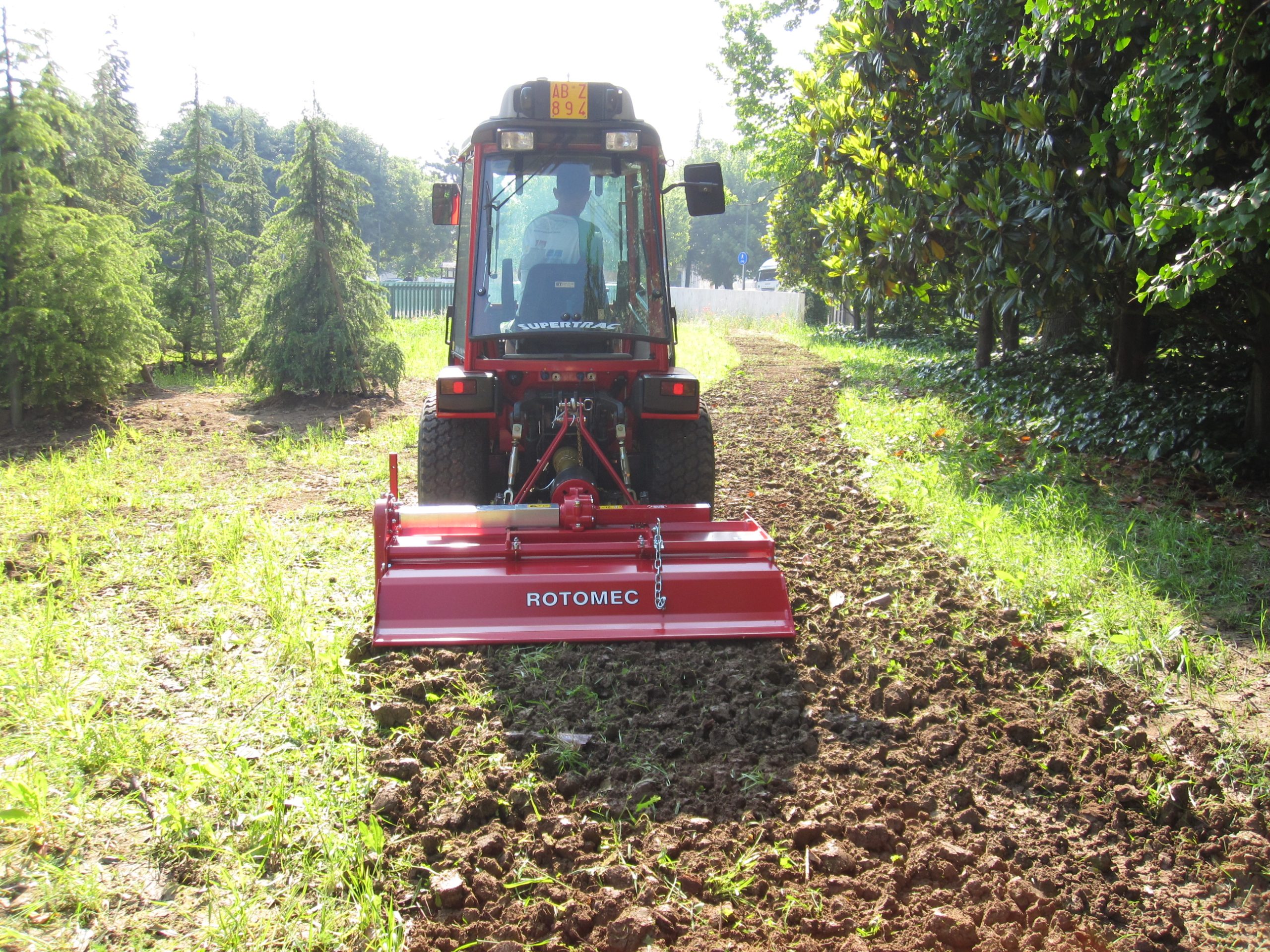

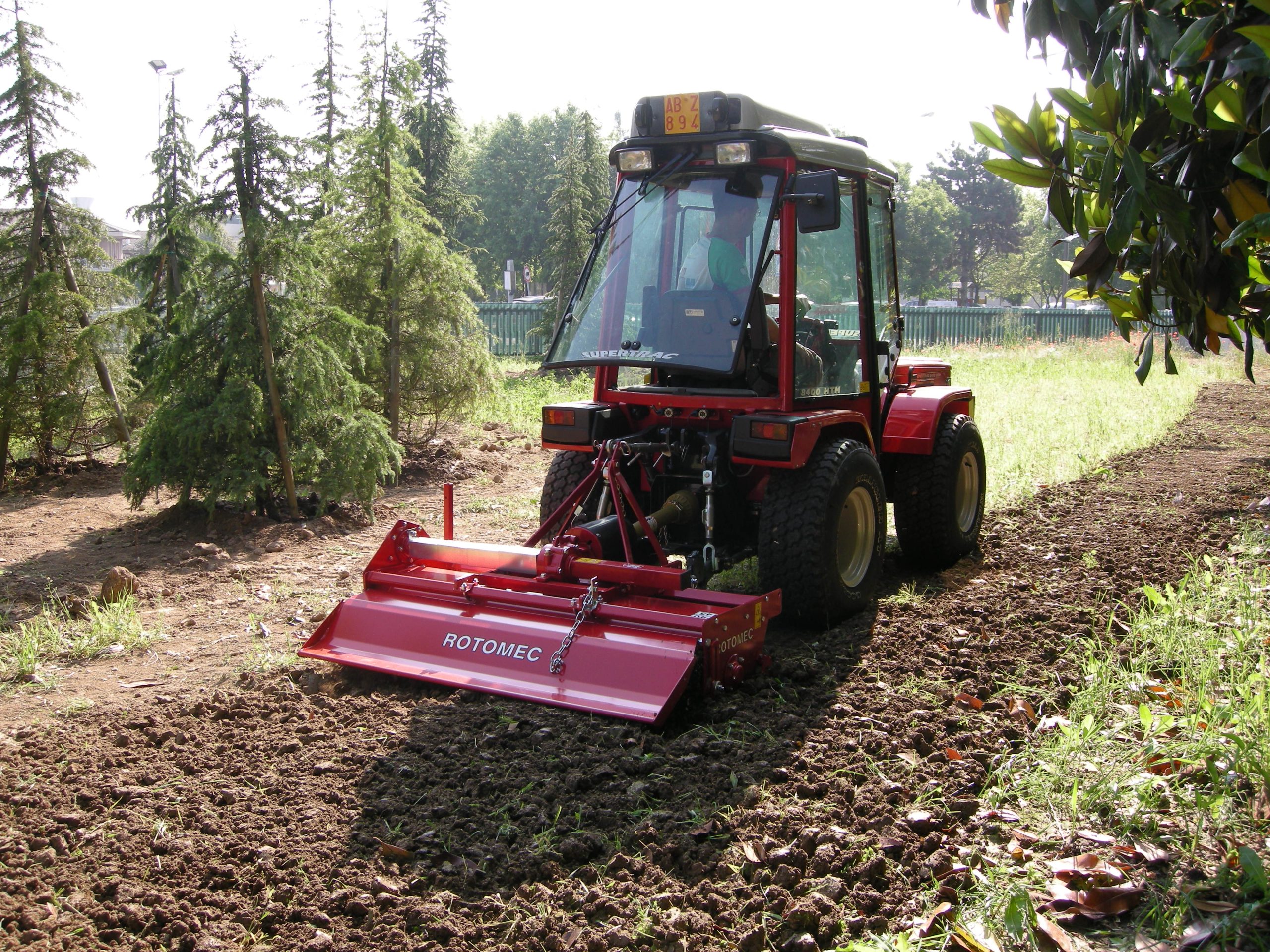

Built-in manual side shift
Rotomec tillers feature a built-in manual side shift system that allows operator to either keep the tiller center mounted behind the tractor, like a traditional unit, or offset the tiller to the right of the tractor. This is particularly beneficial when trying to till over the right tractor tire and closer to obstacles.
Forward or reverse tilling rotation
Rotomec tillers may be set up with either a forward or reverse rotating rotor. When the rotor rotates forward the tiller will have a tendency to bury the rocks while when the tiller rotates backwards it will have a tendency to bring any rocks to the surface.
Gearbox manufactured by Rotomec
Unlike other manufacturers who purchase gearboxes from outside suppliers, BEFCO utilizes a gearbox built in-house using high strength steel for its gears and top of the line bearings and seals.
ASA 80 Chain drive
Lateral ASA 80 chain drive transmission in oil bath. Our chain transmissions are oversized specifically to avoid any downtime due to maintenance. Our Chain transmissions also offer over 180° gear coverage resulting in a smoother and better distributed power transmission.
Reversible sprockets
Model T40 tillers are equipped with reversible sprockets that allow you obtain two tillage speeds: Standards speed is 231 rpm, Increased speed is 375 rpm.
Rotor supports
Rotor supports are made out of stamped steel.
Flanged rotor shaft
The flanged rotor shaft allows operator to quickly disassemble the rotor from the tiller for easy and comfortable blade service and replacement.
Side skids with Infinite adjustments
Side skids allow for tiller depth adjustment to be set anywhere from 0″ to 7 1/4″.
Aerator rotor (additional)
ROT50T40 Rotor with aerator blades for T40-150 and T40-250
ROT58T40 Rotor with aerator blades for T40-158 and T40-258
ROT66T40 Rotor with aerator blades for T40-166 and T40-266
Aerator rotor
0099852 aerator rotor for models T40-150 and T40-250
0099853 aerator rotor for models T40-158 and T40-258
0099854 aerator rotor for models T40-166 and T40-266
Operator’s & Parts manual
