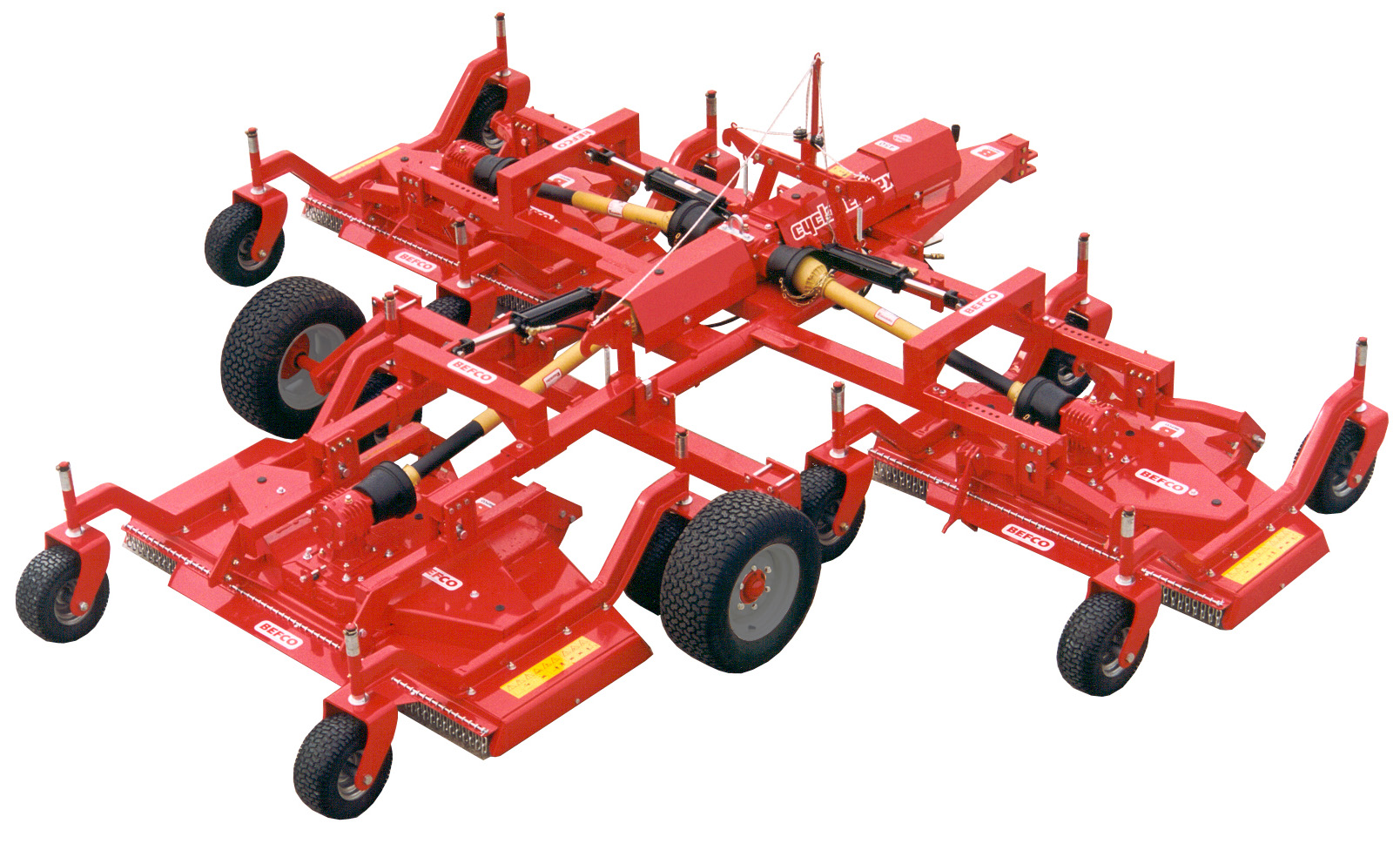

CYCLONE SUPER-FLEX
Gang grooming mowers
35-80 HP (26-60 KW)
540 rpm - Pull-type

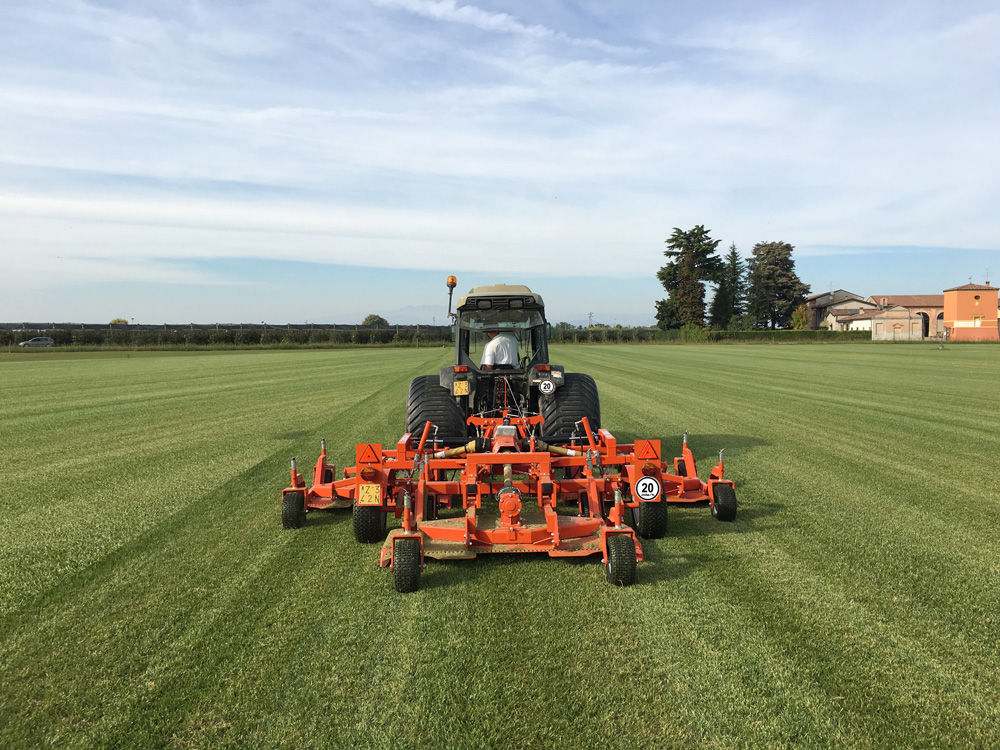

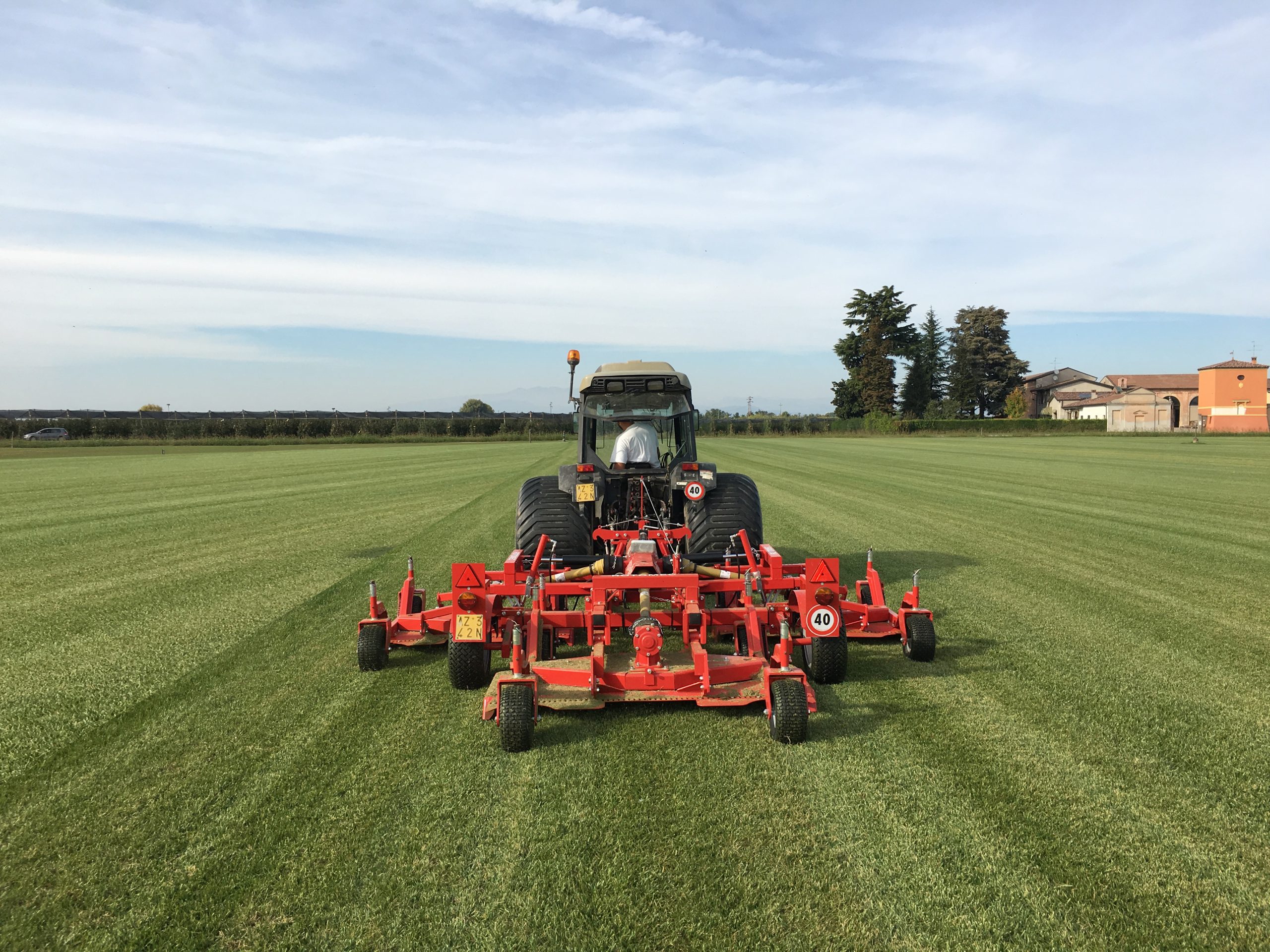

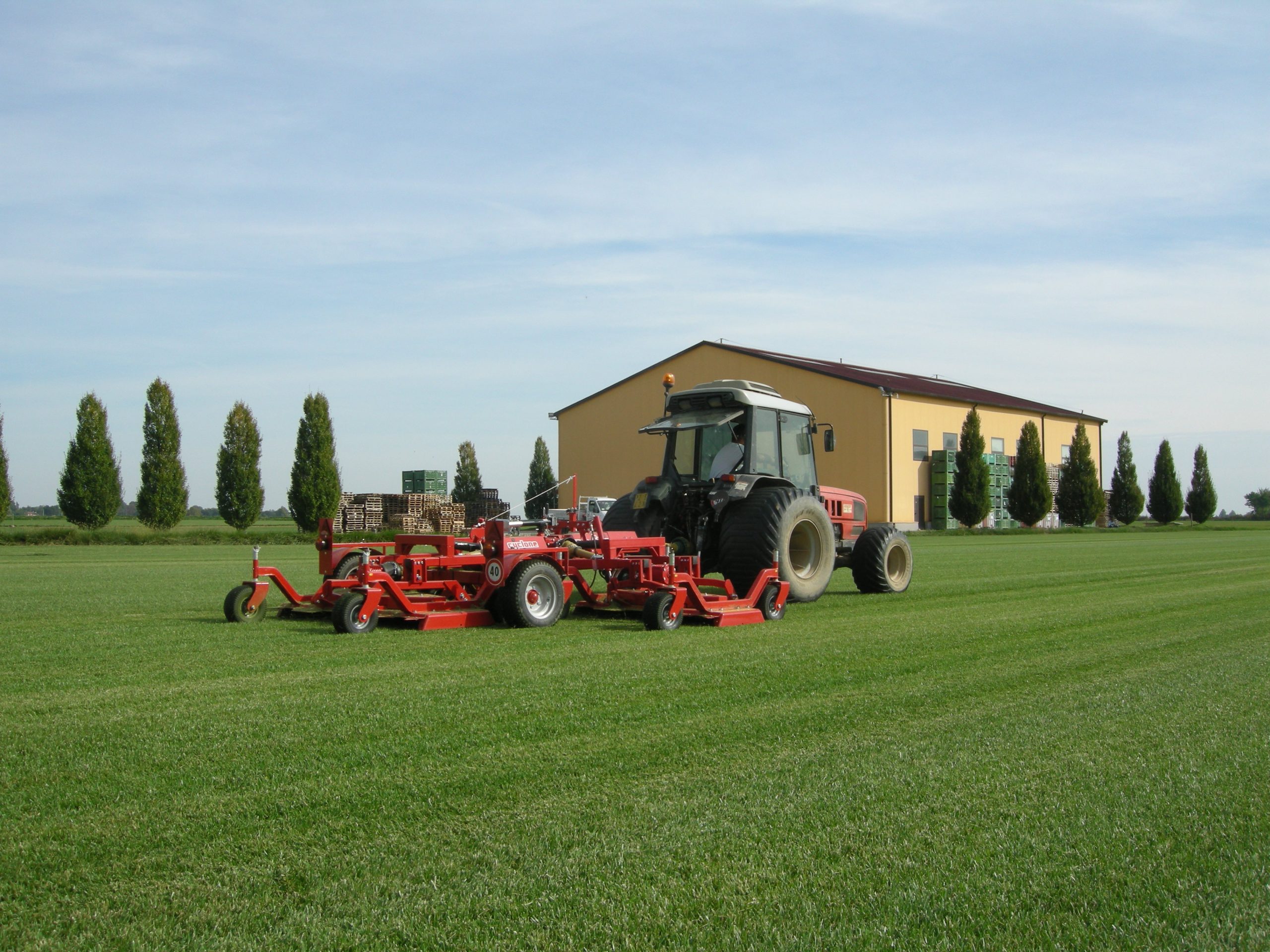

The Super-Flex gang grooming mower represents the most advanced proposal to reduce fuel costs without reducing the quality of work. The high cutting speed (12 – 15 km/h) along with the wide working widths allow to save money and time when mowing large patches of grass such as sports grounds, public parks, golf courses or sod farms. The Super-Flex differs from the Flex model mainly for its larger transport frame (including the large transport tires 585x267x305 mm) which make it more suitable to be towed over long distances, for the large 330 mm pneumatic tires mounted on the mowers helping it to distribute the weight of the unit on the ground, as well as for the larger 600 cm size available only in the Super-Flex version.
MODELS WITH 12 PNEUMATIC TIRES (SIZE 330 mm x 165 mm)
| Model | HP | Working width (cm) | Transport width (cm) | Transport height | Weight Kg | Nr of blades | Cutting height (mm) | Nr Belts | Avg. ha/hr. | Unit make-up | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|
412-SFL | 35-80 | 360 | 231 | 188 | 1.402 | 9 | 25-125 | 6 SPBX | 3,36 at 10 km/h. | 2-120 cm mowers 1-150 cm mower | ASAE cat. 6 cv slip clutch |
415-SFL | 40-80 | 450 | 246 | 234 | 1.482 | 9 | 25-125 | 6 SPBX | 4,20 at 10 km/h. | 2-150 cm mowers 1-180 cm mower | ASAE cat. 6 cv slip clutch |
417-SFL | 45-80 | 510 | 254 | 262 | 1.560 | 9 | 25-125 | 6 SPBX | 5,04 at 10 km/h. | 3-180 cm mowers | ASAE cat. 6 cv slip clutch |
420-SFL | 50-80 | 600 | 290 | 295 | 1.700 | 9 | 25-125 | 6 SPBX | 6,30 at 10 mph. | 3-210 cm mowers | ASAE cat. 6 cv slip clutch |
Zero turn radius
The Frame design along with our main constant velocity driveline, allows Rotomec’s Cyclone Super-Flex mowers to circle trees and obstacles in one pass where competitors require multiple passes.
Heavy duty four way gearbox
The heavy duty main four way gearbox on the unit is manufactured by Rotomec and equipped with SKF® bearings to ensure quality and durability.
Individual mower gearboxes with spiral gears
Individual gearboxes are also manufactured by Rotomec and come equipped with spiral gears that ensure better power transmission, increase longevity and reduce noise.
Manual belt tensionning
Manual belt tensionner maintains constant tension on belts without stretching them like a typical spring loaded idler would. This means that belts last much longer and there is no spring loaded idler that needs to be disassembled at the end of the mowing season to prevent it from stretching the belts during the winter months.
Double belt transmission
Two heavy duty reinforced belts (SPBX) with manual tensionner provide over 180° coverage of all pulleys and reduce belt maintenance.
Cast iron pulleys
Heavy duty, individually balanced cast iron pulleys are more durable than steel or plastic ones often used by competitors and do not get damaged whenever serviced.
Axial grease fittings
Spindles are quipped with axial grease fittings that allow operator to grease spindle from the top without having to remove the belt shields.
Stamped steel reinforced wheel arms
Only Rotomec mowers are equipped with reinforced stamped steel wheel arms. These wheel arms are stronger than the ones made of bent tubing used by the competition and always guarantee a perfectly even surface for the mower to rest on.
Telescopic wings
The telescopic wings on the mowers allow for adjustable cutting width to increase or decrease mower overlap.
Floating linkage
Mower decks are secured to the main transport frame using a double pivot floating linkage that allows each deck to independently float side to side or front to back.
Front antiscalp roller
All Super-Flex mowers are equipped standard with front antiscalp rollers to help prevent scalping the ground when mowing over uneven terrain.
Hexagonal yokes
Hexagonal yokes on the front tires of the rear mower deck prevent the mower from sliding when going over slopes.
330 mm x 165 mm pneumatic tires
All Cyclone Super-Flex gang grooming mowers are equipped with 330 mm x 165 mm pneumatic tires with maintenance free sealed bearings.
Pins that stay in place
Mowers that use traditional cotter pins often loose them when the mower gets too close to a bush. This not only causes the loss of the pin but may also cause the loss of the height adjustment spacers and in some cases even the wheel yokes.
For this reason, Rotomec designed and manufactured a pin that will stay securely fastened under almost any circumstances.
Chain shielding
Mowers are equipped with chain shields to provide additional safety from thrown objects.
Narrow transport widths and heights
The compact transport widths and heights allow these mowers to be transported on narrow roads, bridges and tunnels.
231 cm transport width and 188 cm transport height for model 412-SFL
246 cm transport width and 234 cm transport height for model 415-SFL
254 cm transport width and 262 cm transport height for model 417-SFL
290 cm transport width and 295 cm transport height for model 420-SFL
Standard blades
0006640 Standard blade for 120 cm mower deck
0006641 Standard blade for 150 cm mower deck
0006845 Standard blade for 180 cm mower deck
0006690 Standard blade for 210 cm mower deck
Hydraulic unlocking system
0099817 hydraulic unlocking system
Floating hitch (additional)
PIVHTFLX Front turning hitch
Floating hitch
FLTHFLX Floating hitch
Roadway kit
RDKITSFL Roadway kit
Rear roller
HRDXXSFL 12 hard tires 310 mm x 100 mm with ball bearings for all Super-Flex models
Mulching kit
0099304 Mulching kit for model 412-SFL
0099305 Mulching kit for model 415-SFL
0099306 Mulching kit for model 417-SFL
0099307 Mulching kit for model 420-SFL
Note: Mulching blades are also included in Mulching kits
Low lift blades
0006640F Low lift blade for 120 cm mower deck
0006641F Low lift blade for 150 cm mower deck
0006845F Low lift blade for 180 cm mower deck
0006690F Low lift blade for 210 cm mower deck
High lift blades
0006640B High lift blade for 120 cm mower deck
0006641B High lift blade for 150 cm mower deck
0006845B High lift blade for 180 cm mower deck
0006690B High lift blade for 210 cm mower deck
Mulching blades
0006640M Mulching blade for 120 cm mower deck
0006641M Mulching blade for 150 cm mower deck
0006845M Mulching blade for 180 cm mower deck
0006690M Mulching blade for 210 cm mower deck
Note: Mulching blades are also included in Mulching kits
