Poly-Hop broadcast spreaders

POLY-HOP

Broadcast spreaders
16-50 HP (12-37 KW)
540 rpm - Cat. 1

The Hop fertilizer spreader, with a conic hopper and a distribution disc, is an easy and economical tool for spreading granular and powdered fertilizers. It also serves as a salt or sand spreader. It is available in four sizes with hopper capacity of 105, 150, 250 and 350 liters. Hop fertilizer spreaders are designed for tractors ranging from 16 to 50 HP at 540 rpm. They are equipped standard with a fixed agitator or are available with a wheel agitator upon request.

All models of the Poly-Hop line are also available in the Hop version with steel hopper and steel components.

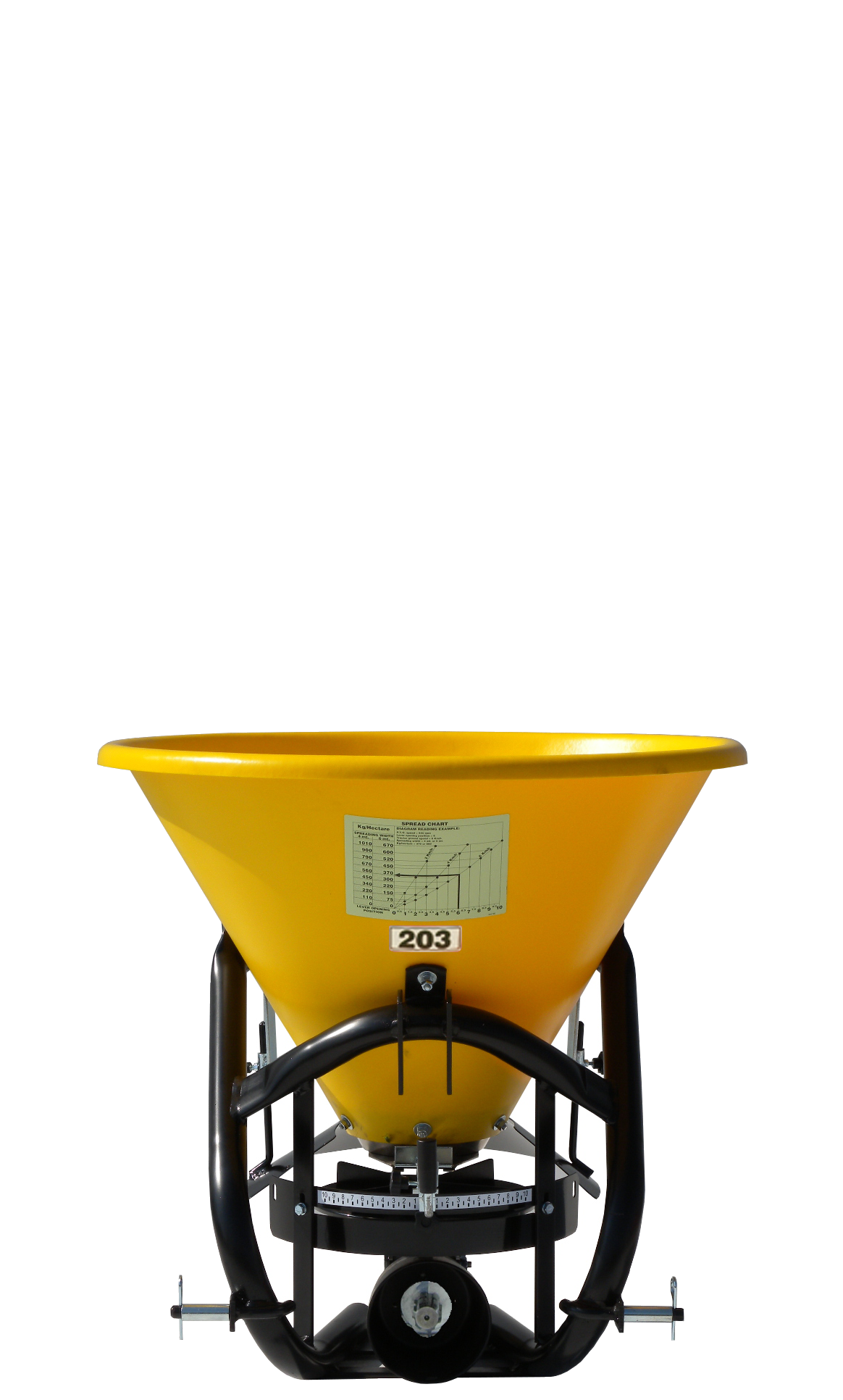

203 scontornato

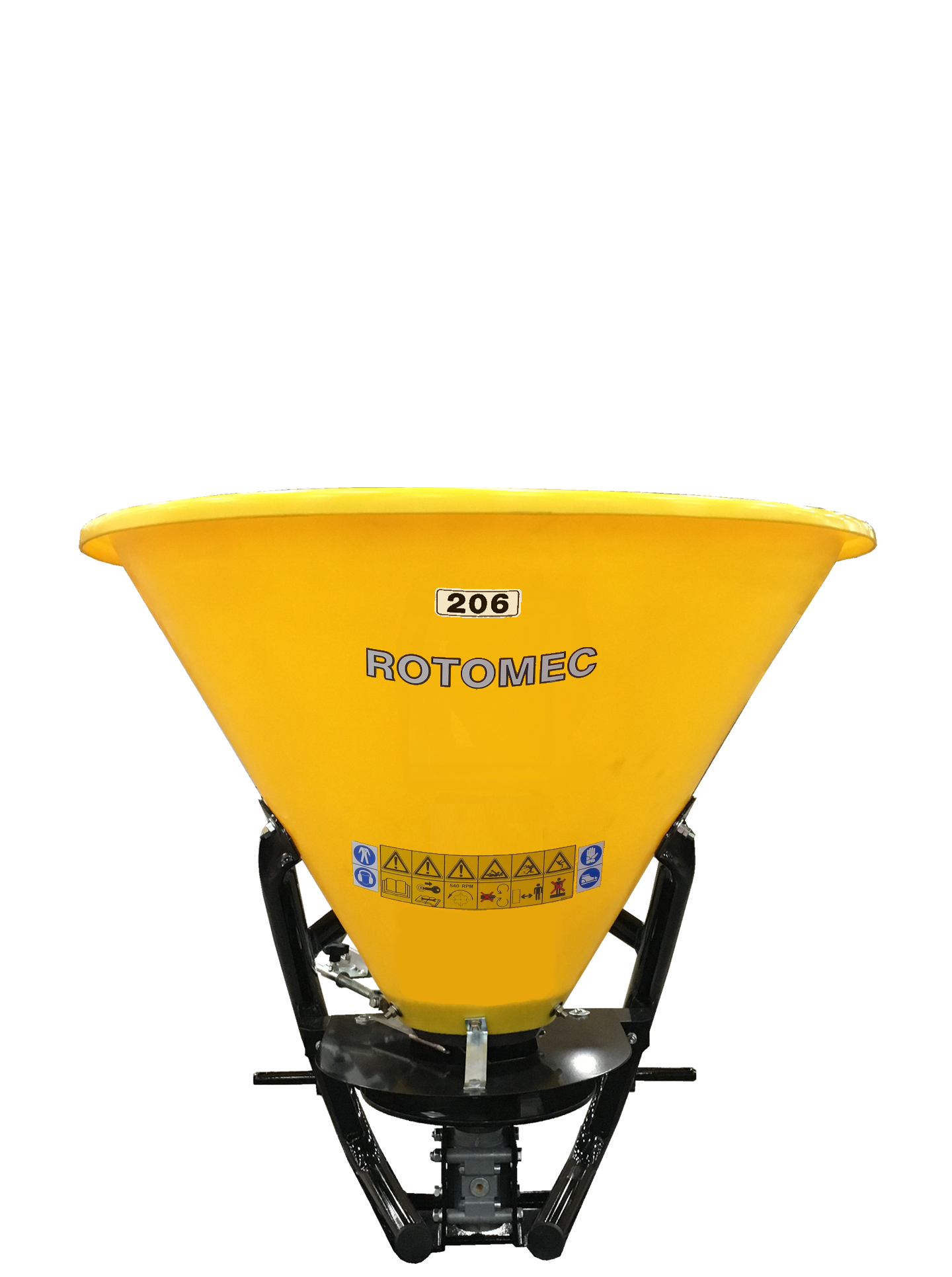

206 scontornato

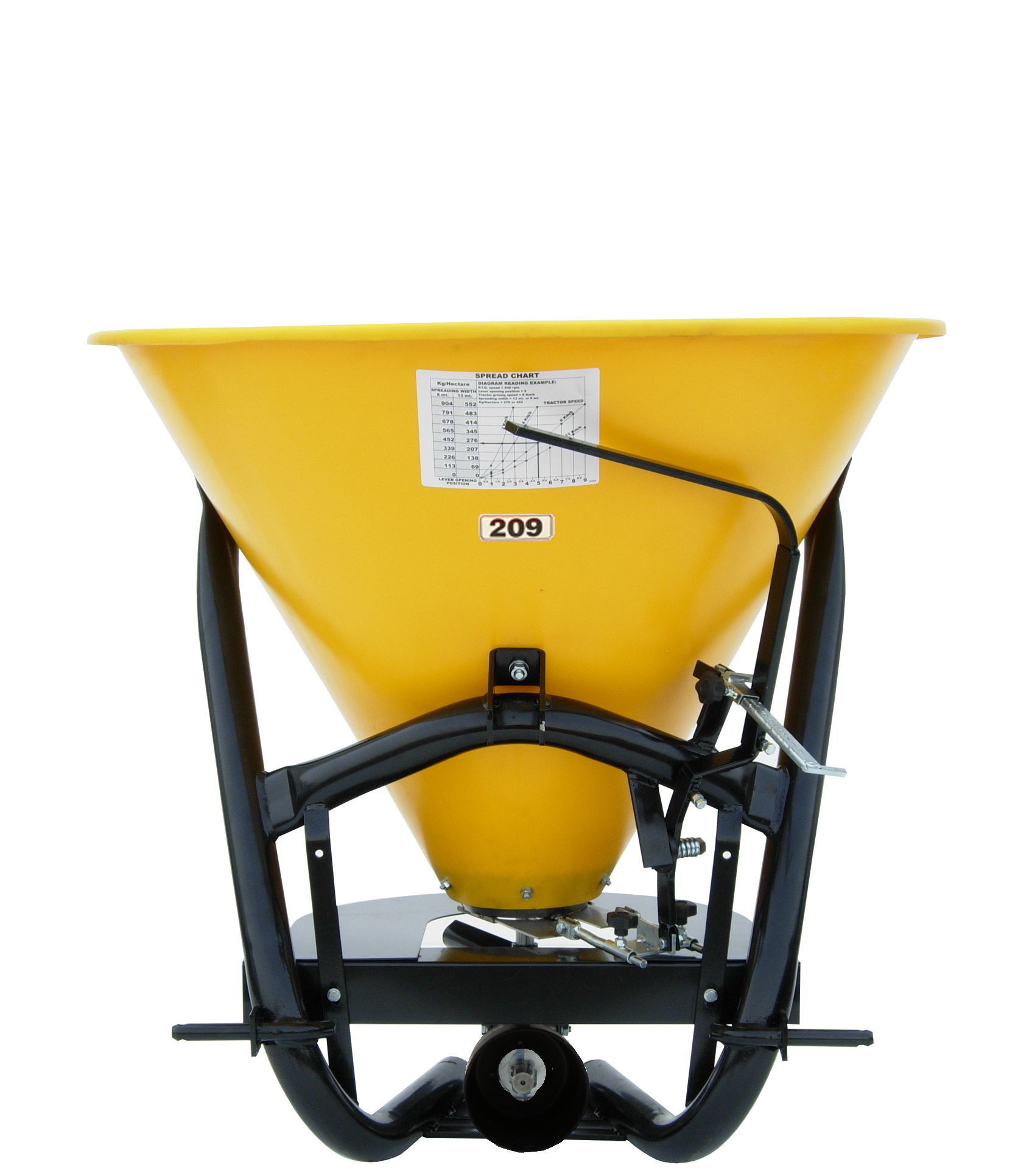

209 scontornato

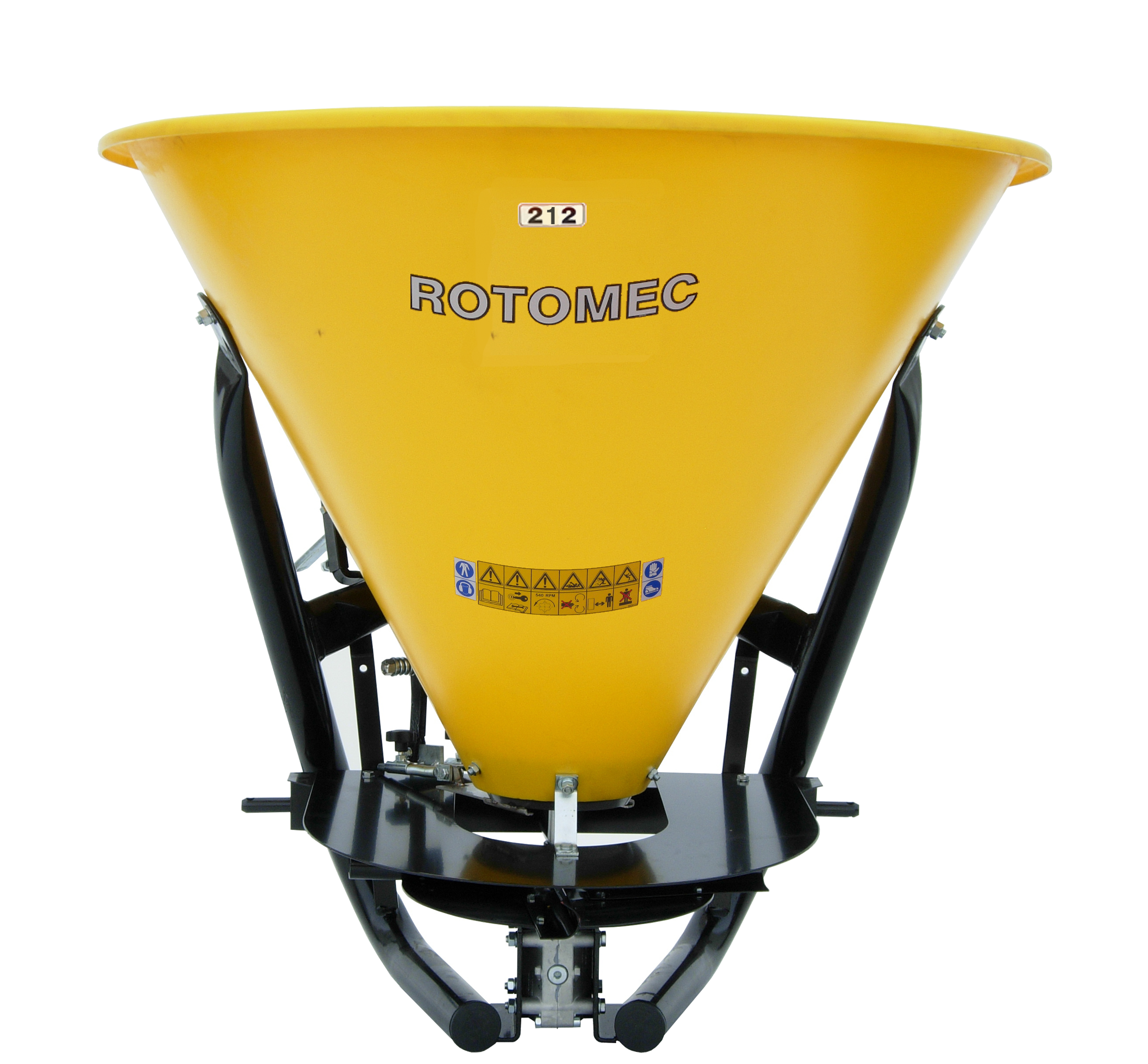

212 scontornato

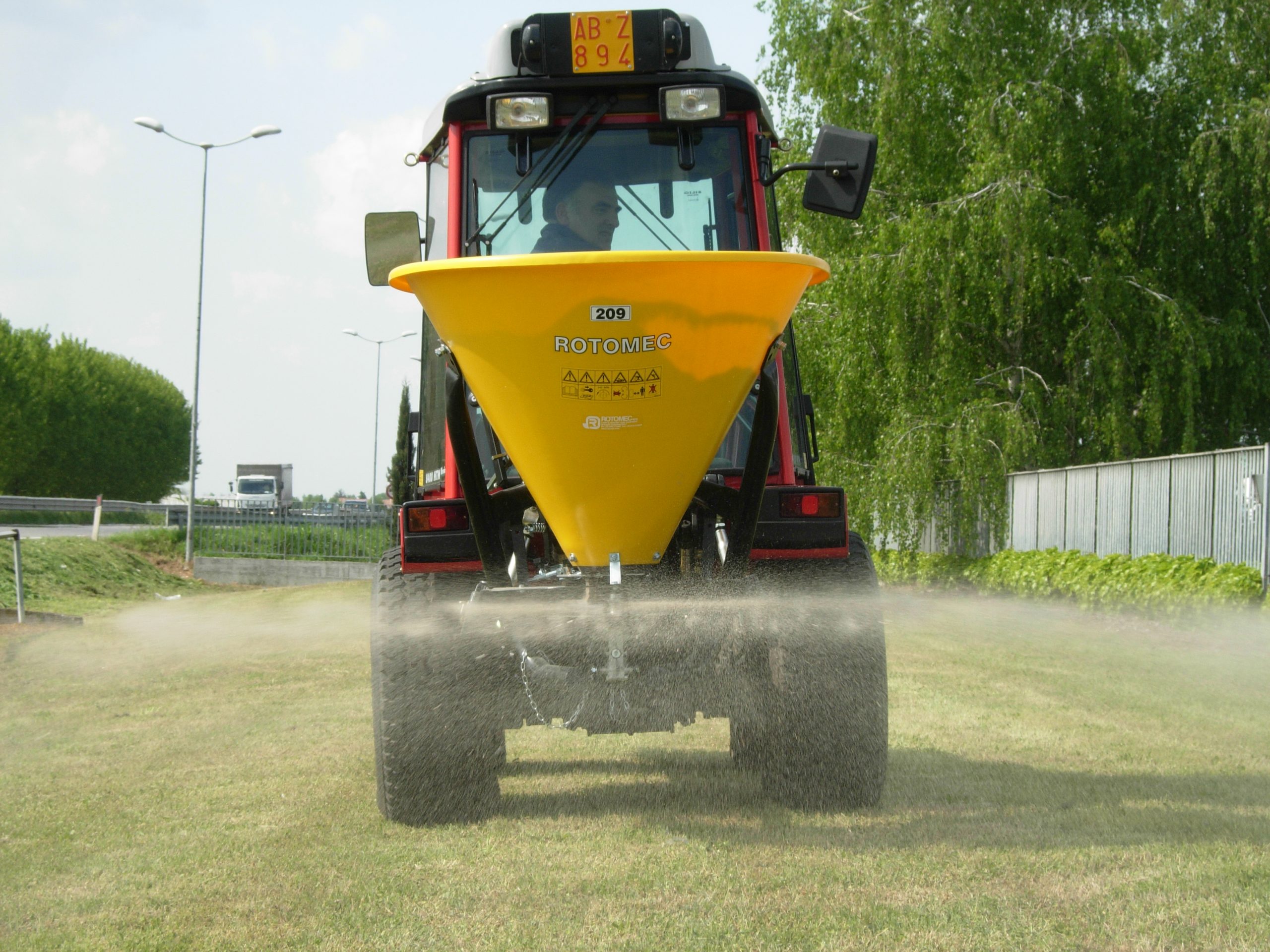

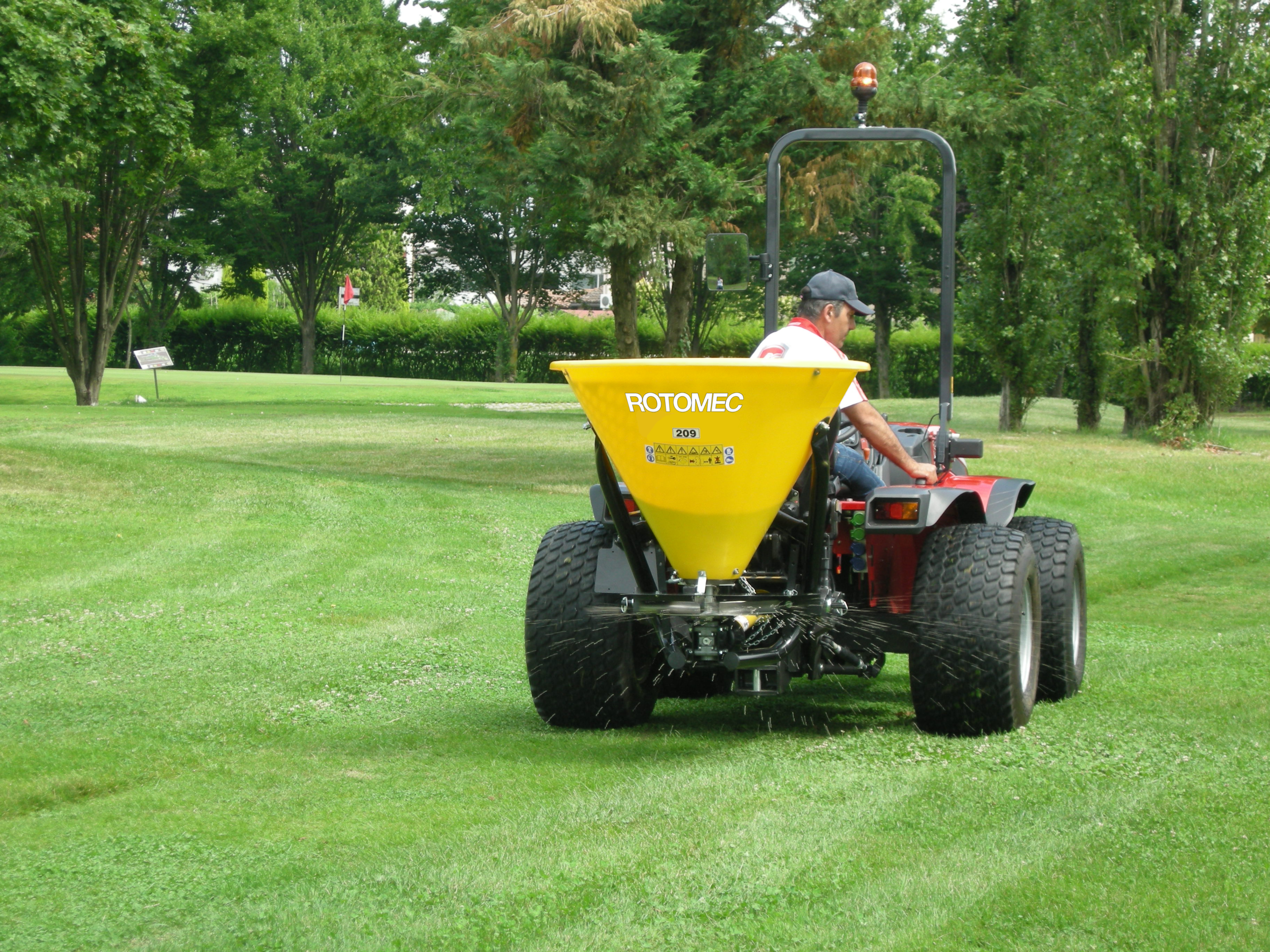

209 working

POLY HOP_scritta Rotomec

TECHNICAL FEATURES
STANDARD FEATURES
OPTIONAL EQUIPMENT
MANUALS

MODELS WITH STAINLESS STEEL BOTTOM & NYLON SPREADER DISC

Model	HP	Weight Kg	Ship Kg	Capacity L/Kg	Swath spread (cm)	Hopper width (cm)	Hopper height (cm)	Driveline 1 3/8"

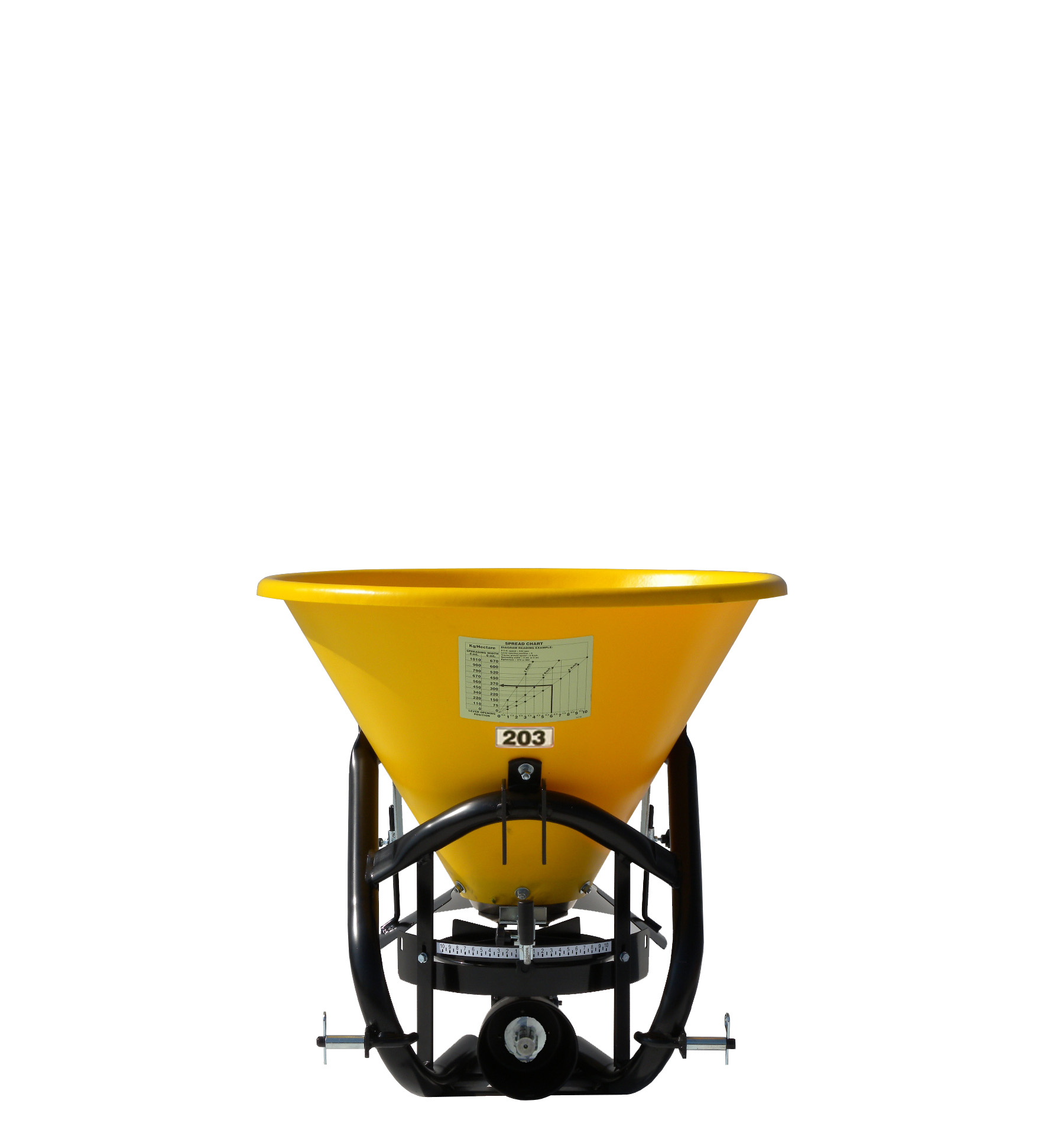

203-220	16-30	37	50	105/135	700	81,28	78,74	ASAE cat. 1

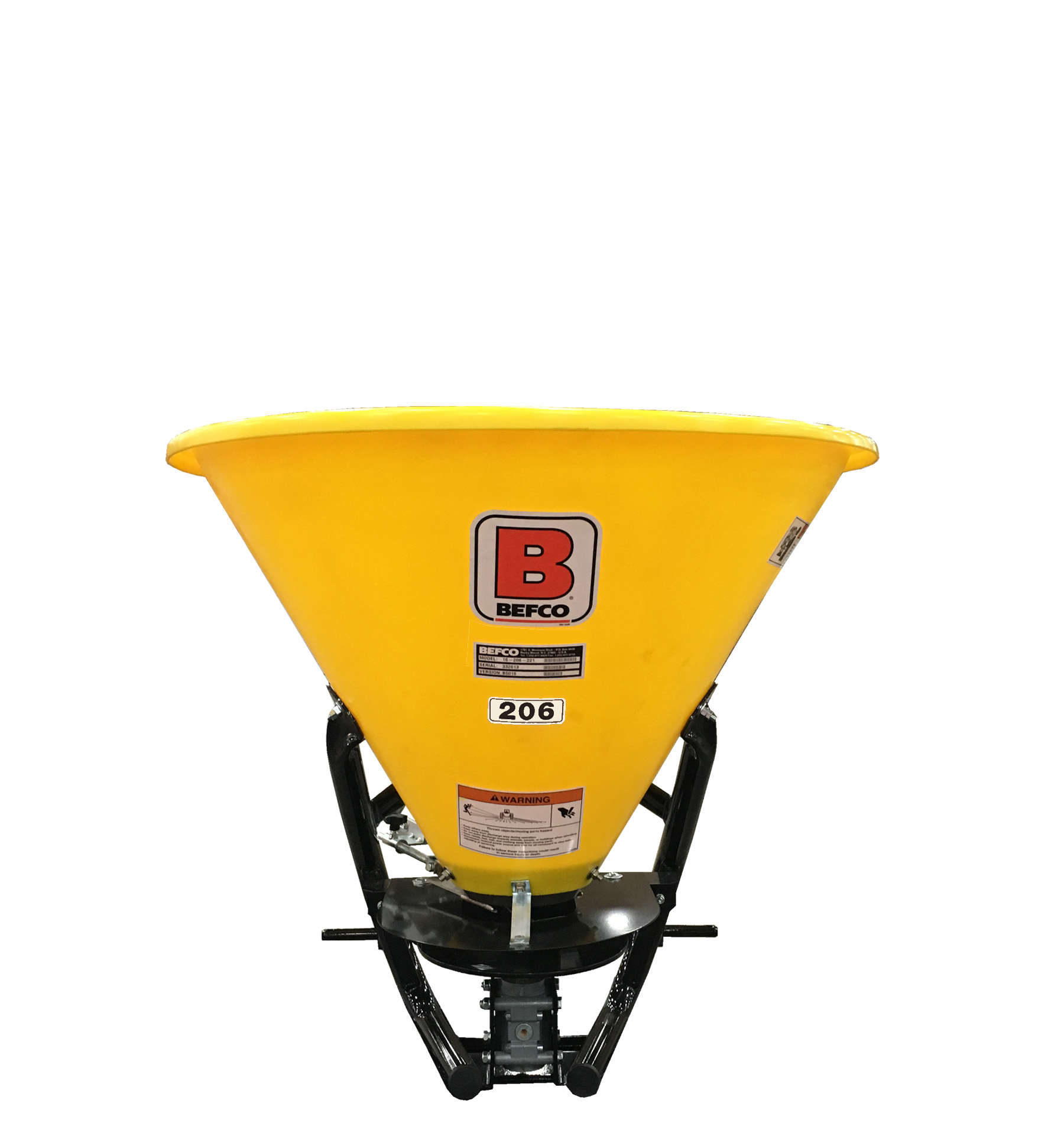

206-221	16-30	46	60	150/180	700	88,90	86,36	ASAE cat. 1

NOTE: Capacity in kg calculated @ 13-13-13 fertilizer weight of 30 kg per m³

MODELS WITH STAINLESS STEEL BOTTOM & STAINLESS STEEL SPREADER DISC

Model	HP	Weight Kg	Ship Kg	Capacity L/Kg	Swath spread (cm)	Hopper width (cm)	Hopper height (cm)	Driveline 1 3/8"

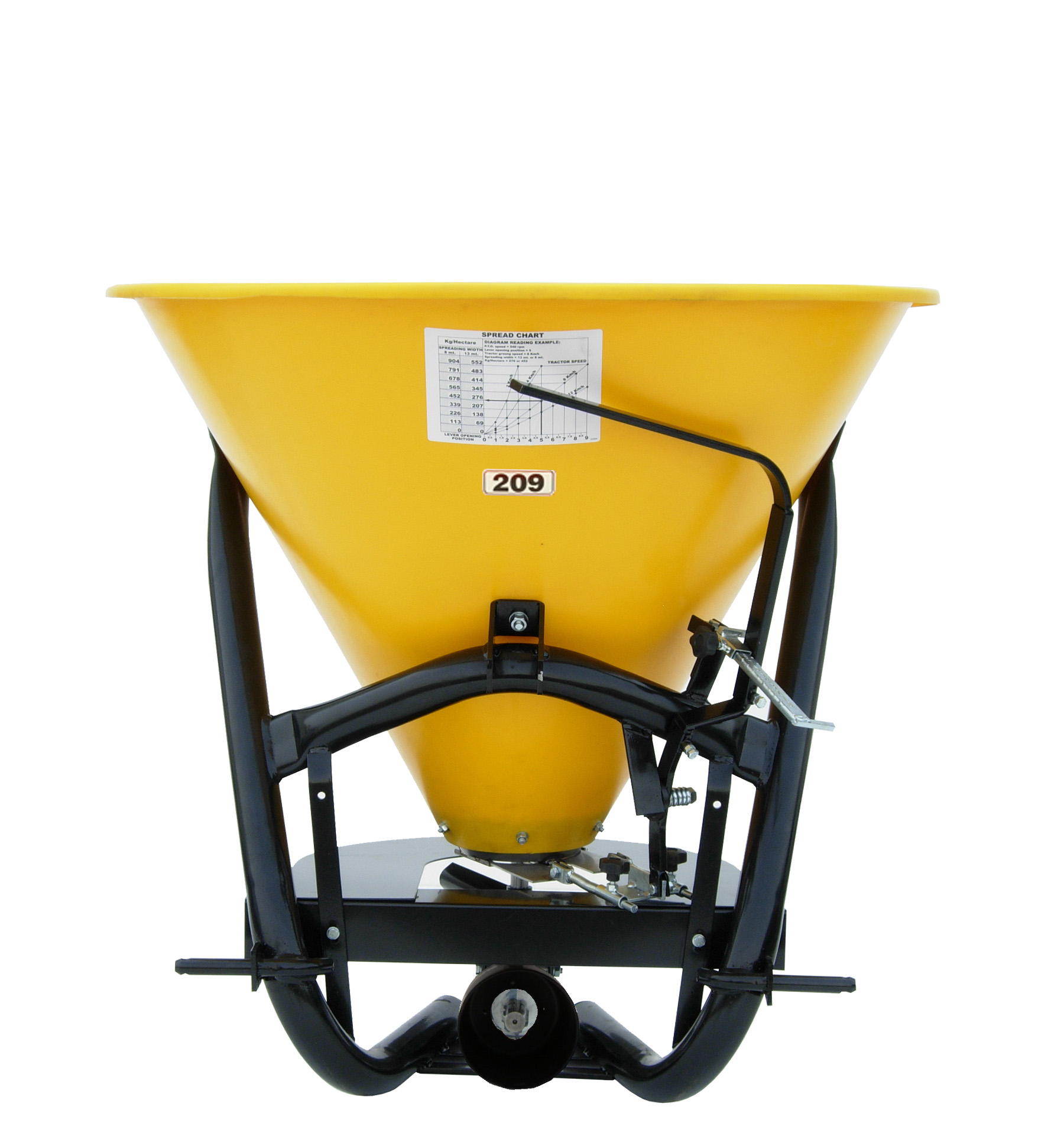

209-421	20-50	57	70	250/350	1400	106,68	101,60	ASAE cat. 1
212-421	20-50	62	75	325/500	1400	121,92	116,84	ASAE cat. 1

NOTE: Capacity in kg calculated @ 13-13-13 fertilizer weight of 30 kg per m³

Adjustable spread pattern

Hop spreaders are equipped with an adjustable spread pattern that allows operator to spread, prevalently right, prevalently center or prevalently left.

Polyethylene hopper

While competitor’s spreaders utilize ultra-thin “see through” polyethylene hoppers, Rotomec’s polyethylene hoppers are so thick and durable that they weigh as much as our metal hoppers.
