BABY-HOP
Broadcast spreaders
Lawn tractors & ATV's
Pull-type

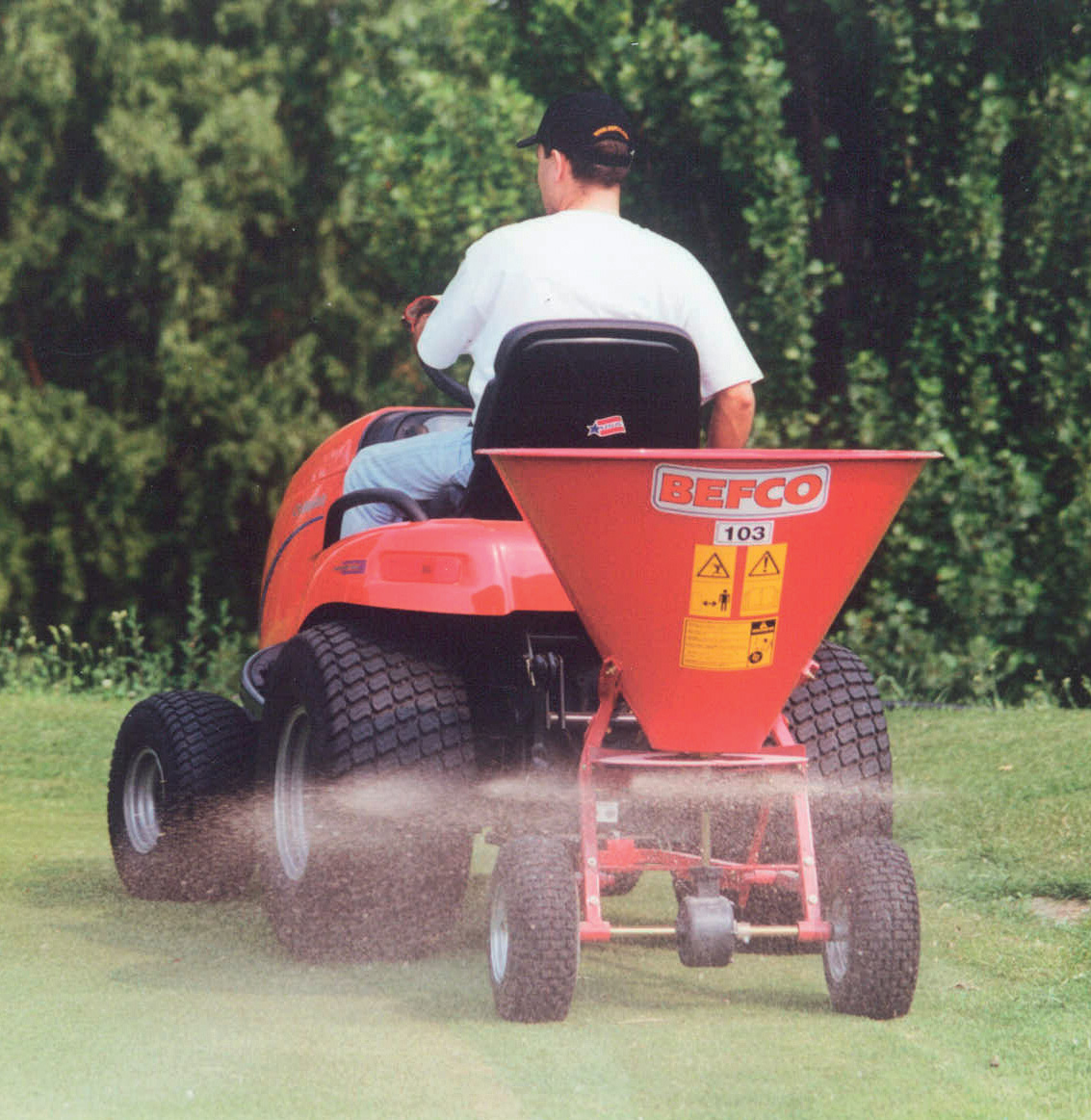

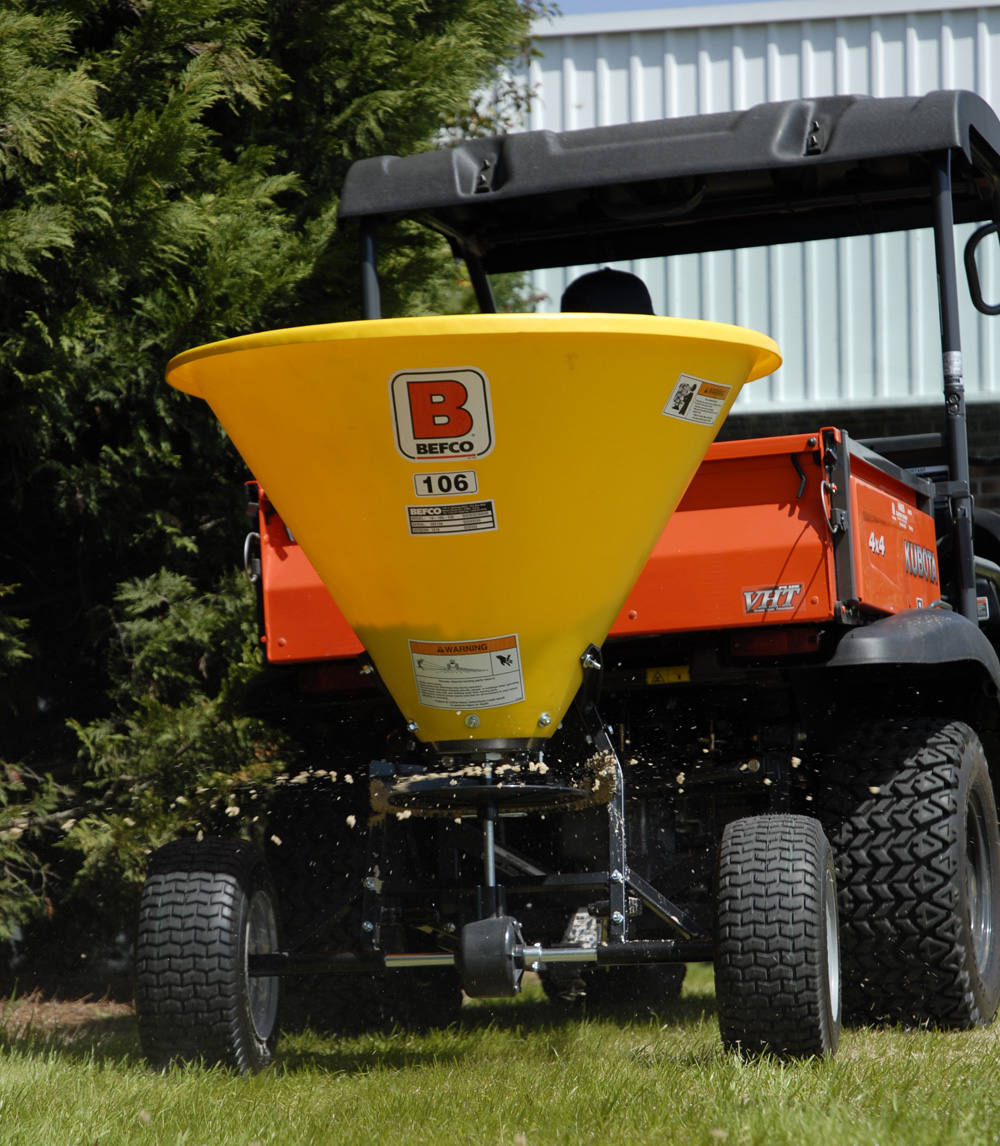

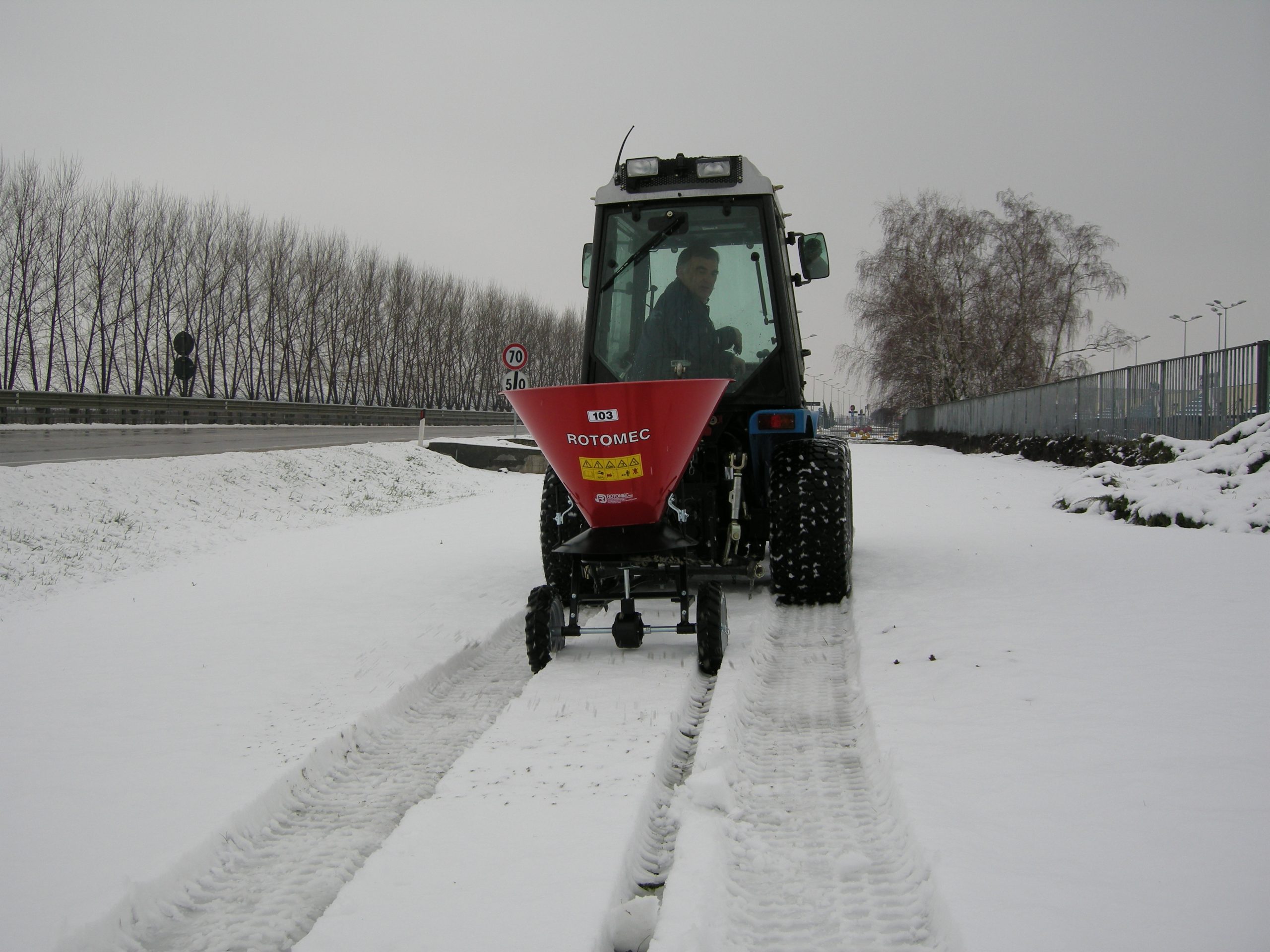

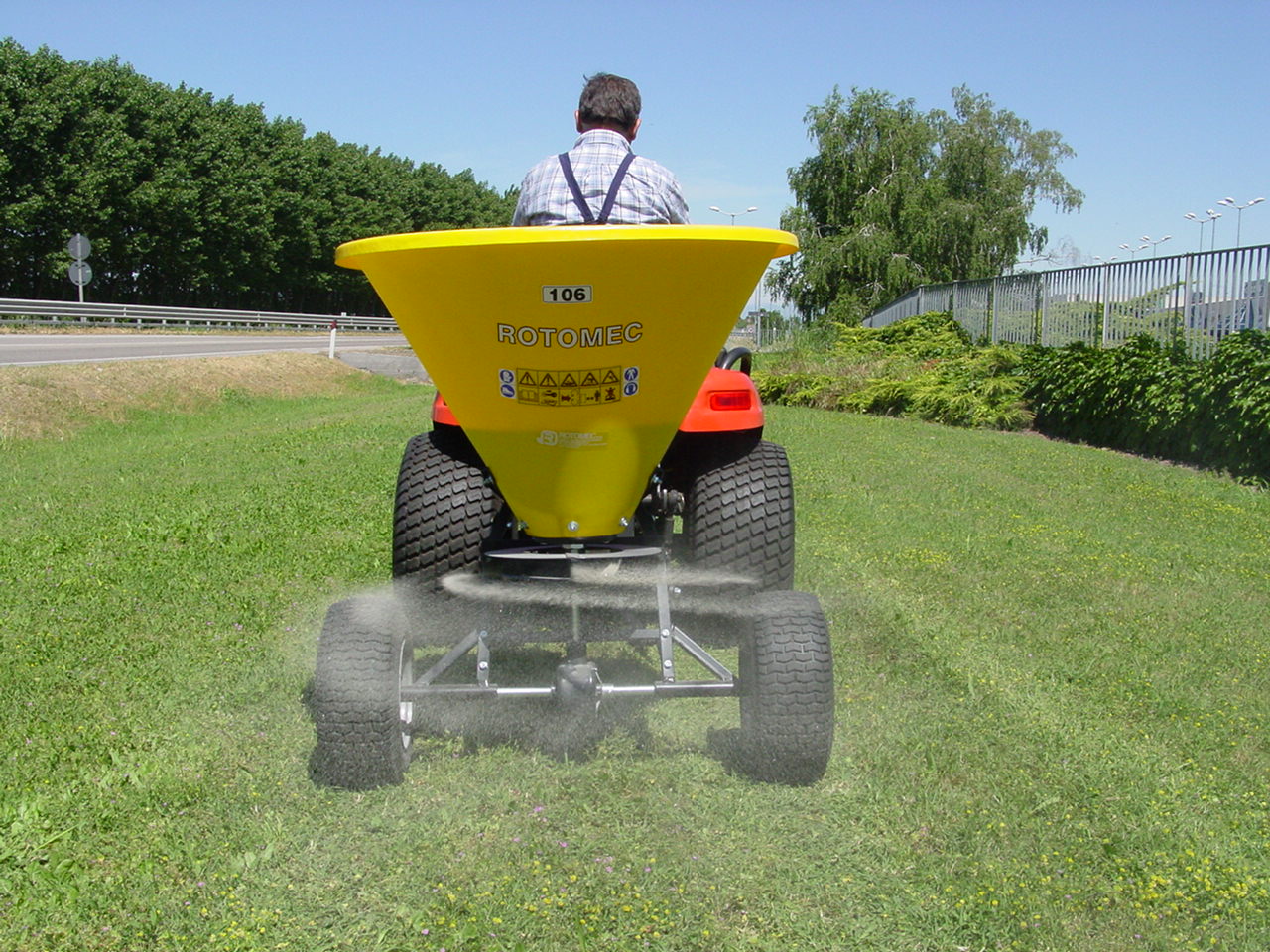

The Baby-Hop series ground driven fertilizer spreader, with 45, 105 and 150 liters capacity, are designed and sized for small tractors, ATVs or other equipment without pto. They are ideal for gardens, greenhouses, nurseries and athletic fields. The Baby-Hop also proves reliable during the winter months to spread salt on snow. The Baby-Hop spreader distributes the material up to a distance of 6m. By adjusting the lever, the material can be spread mainly to the right or to the left. The spreader is available with air or solid tires. As the tires begin to turn they transmit motion to the gearbox which then allow the distribution to work.

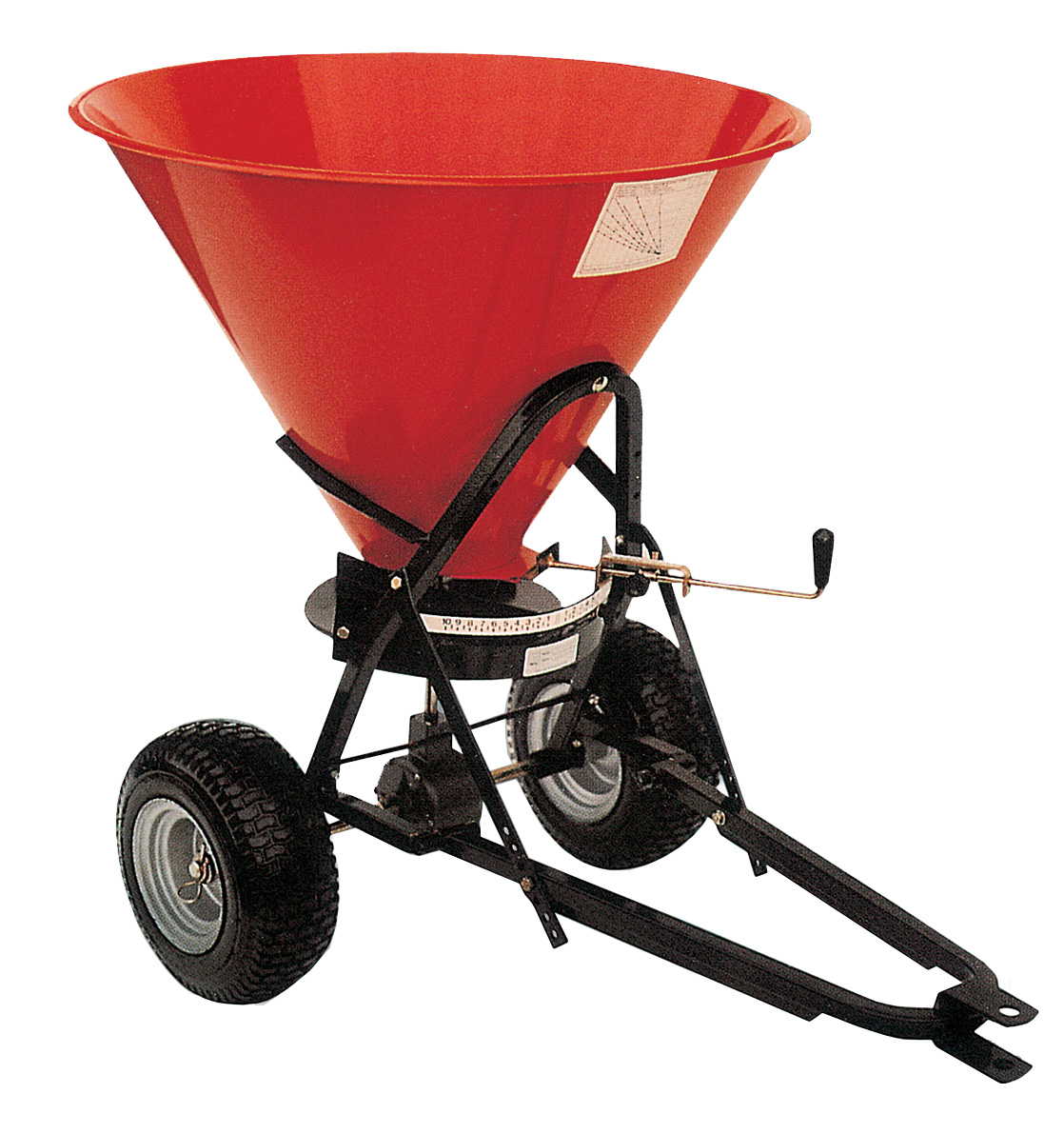

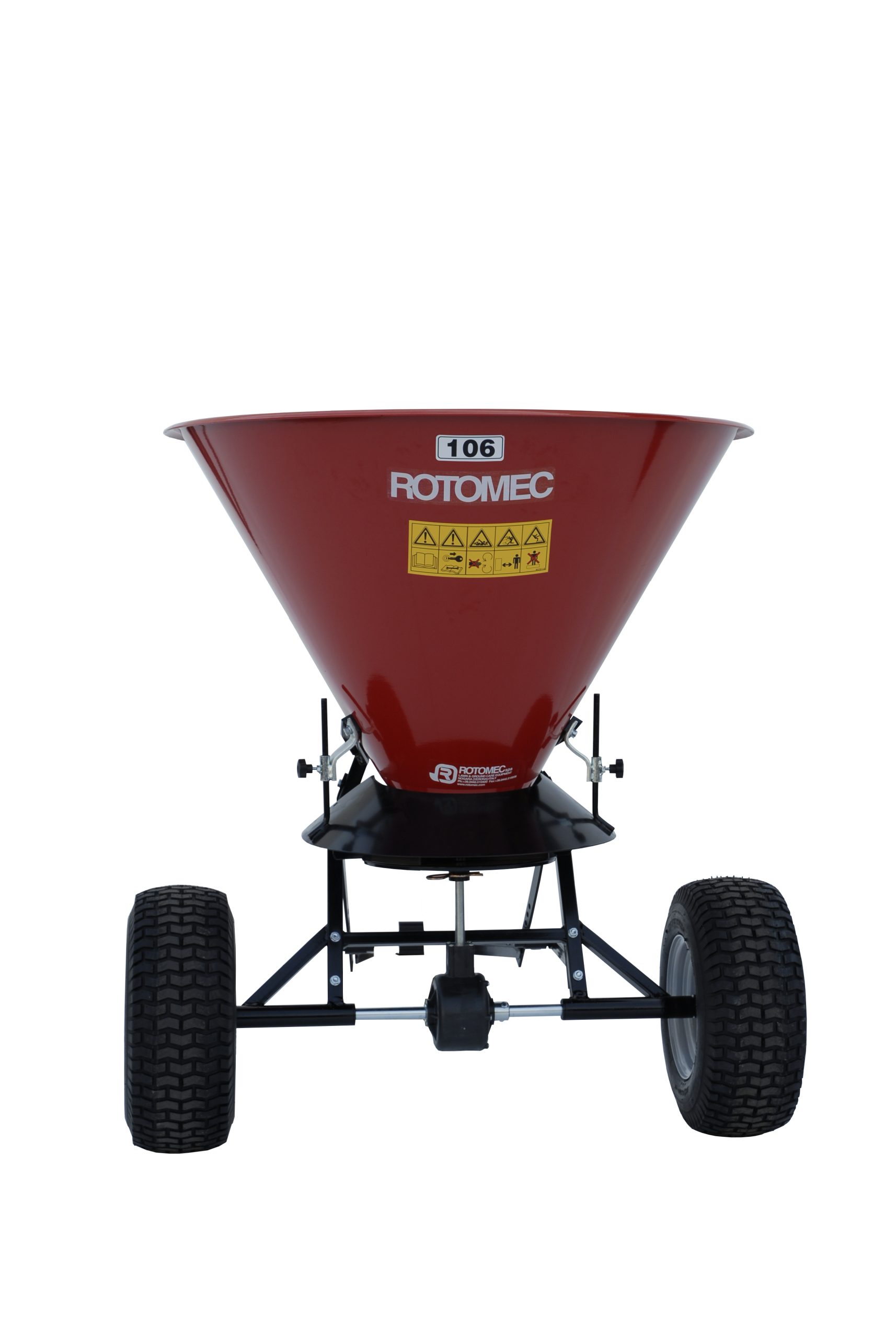

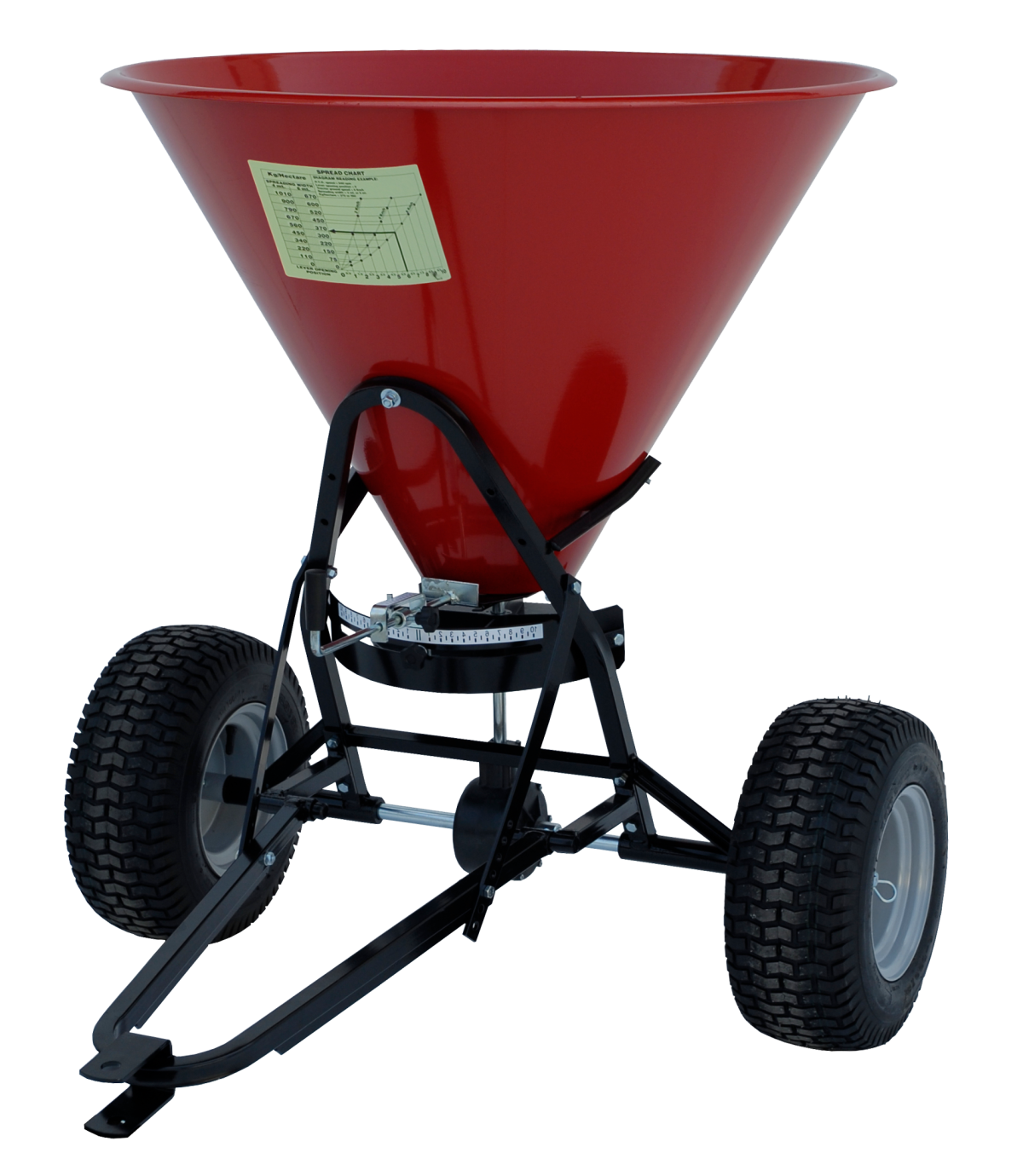

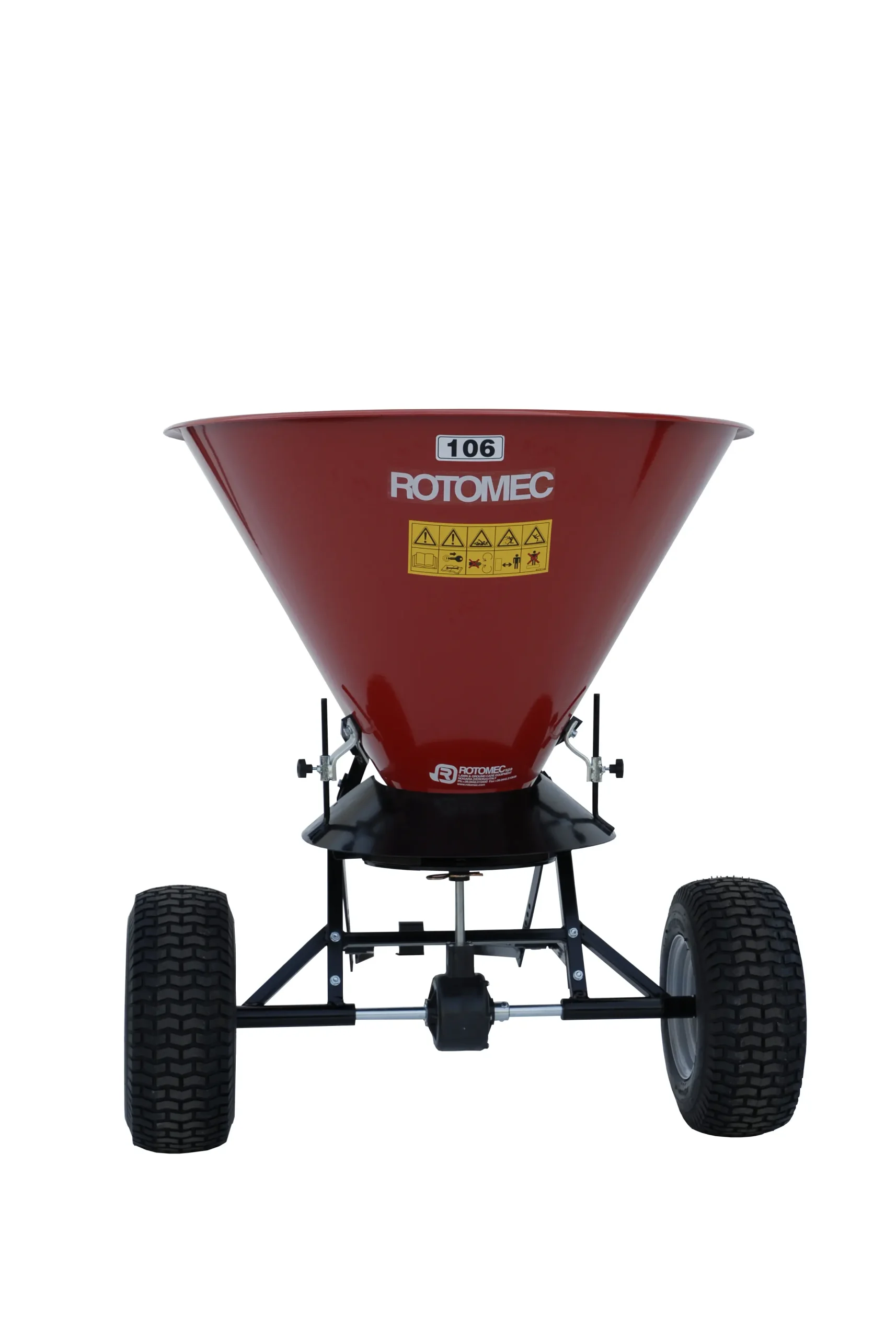

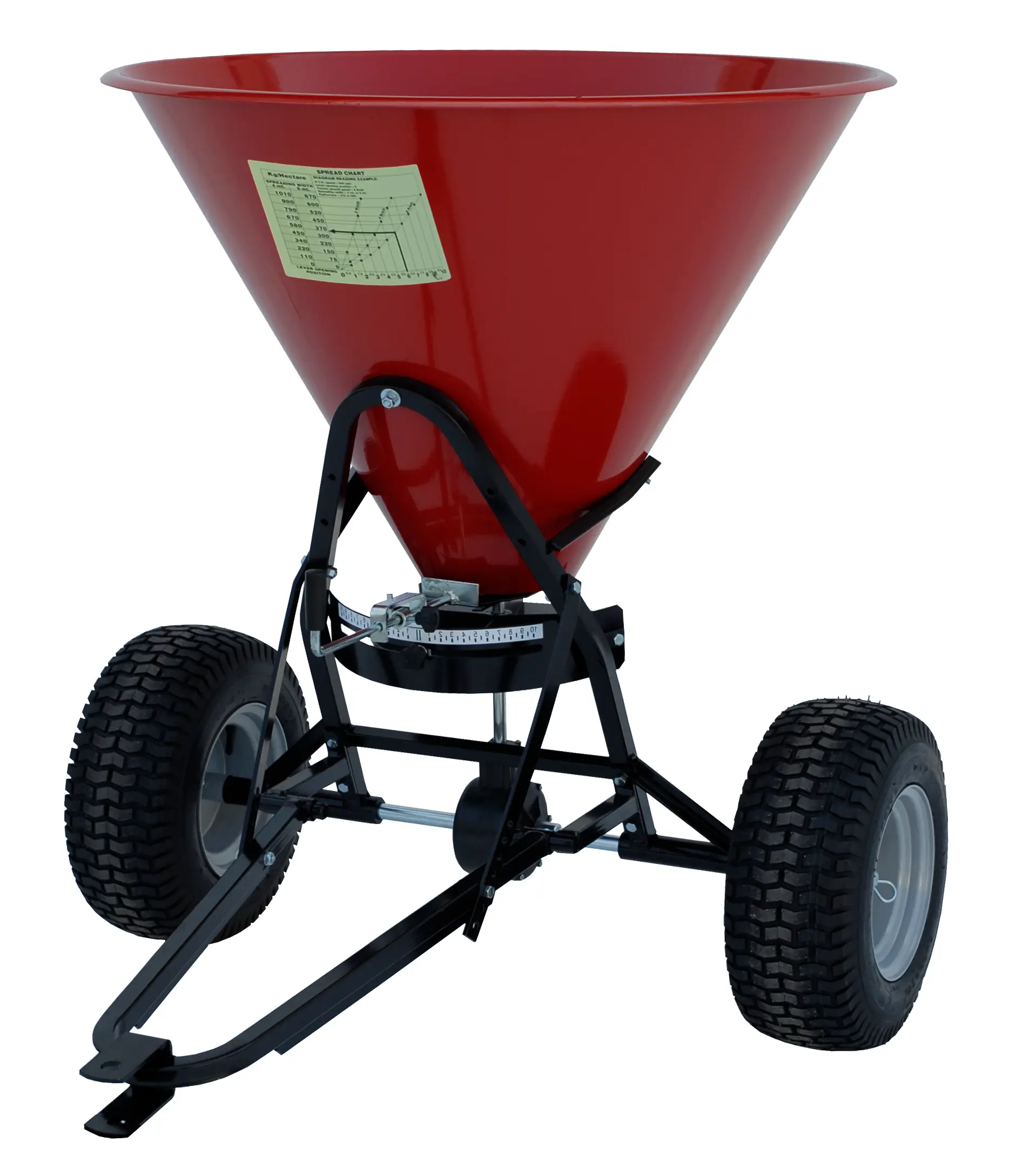

MODELS WITH STEEL HOPPER
Model | 101-130 | 103-130 | 106-130 |
|---|---|---|---|
Weight Kg | 26 | 28 | 38 |
Ship Kg | 40 | 42 | 52 |
Capacity cu. L/Kg | 45/55 | 105/135 | 150/180 |
Swath spread (cm) | 100-600 | 100-600 | 100-600 |
Hopper width (cm) | 62,00 | 81,28 | 88,90 |
Hopper height (cm) | 82,00 | 101,60 | 114,30 |
Nr tires & size | 2 330,2 mm x 152,4 mm | 2 330,2 mm x 152,4 mm | 2 330,2 mm x 152,4 mm |
NOTE: Capacity in kg calculated @ 13-13-13 fertilizer weight of 30 kg. per m³.

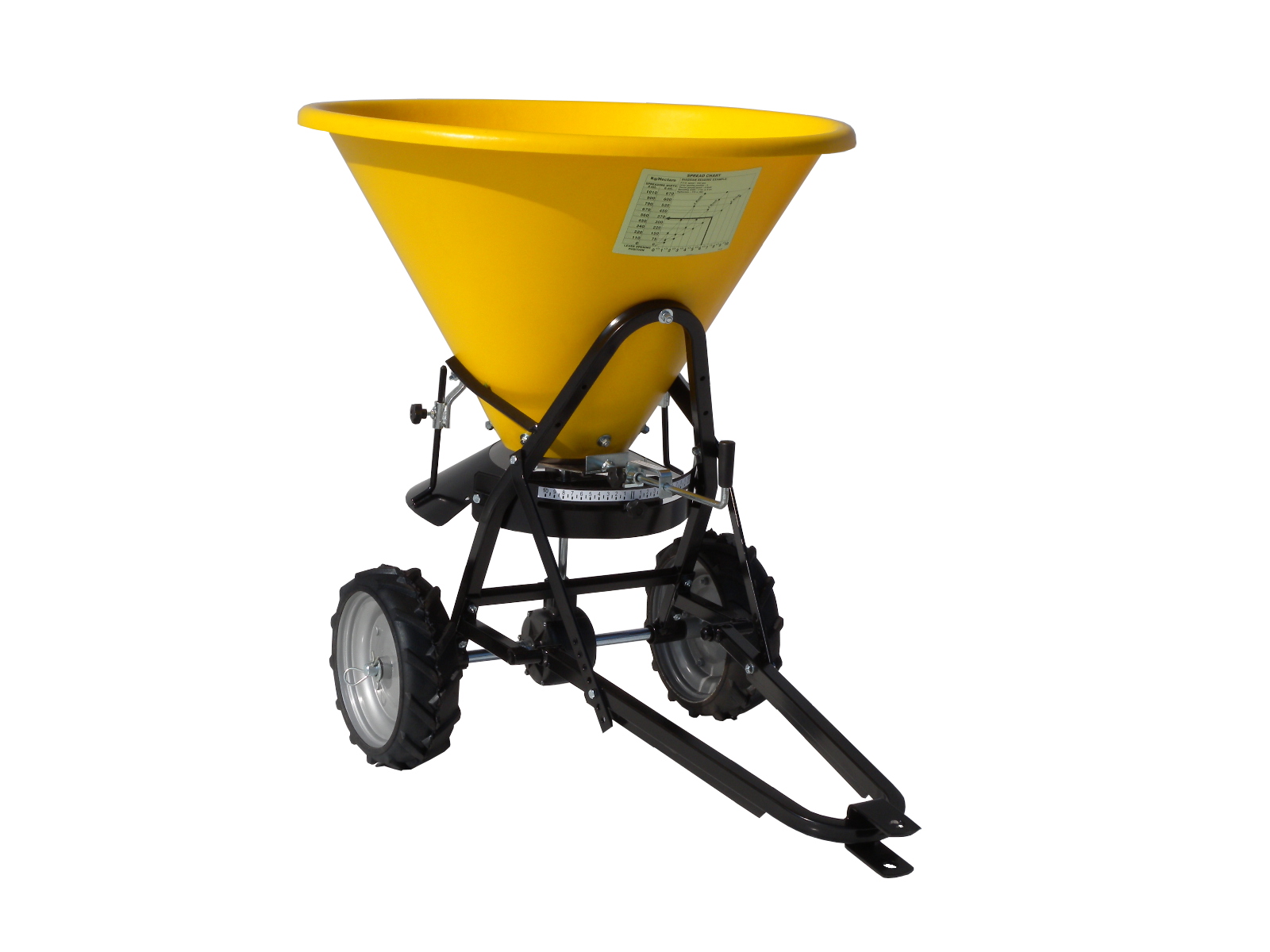

MODELS WITH POLYETHYLENE HOPPER AND STAINLESS STEEL BOTTOM
Model | 103-230 | 106-230 |
|---|---|---|
Weight Kg | 28 | 38 |
Ship Kg | 42 | 52 |
Capacity cu. L/Kg | 105/135 | 150/180 |
Swath spread (cm) | 100-600 | 100-600 |
Hopper width (cm) | 81,28 | 88,90 |
Hopper height (cm) | 101,60 | 114,30 |
Nr tires & size | 2 330,2 mm x 152,4 mm | 2 330,2 mm x 152,4 mm |
NOTE: Capacity in kg calculated @ 13-13-13 fertilizer weight of 30 kg per m³.
Adjustable spread pattern
Baby-Hop spreaders are equipped with an adjustable spread pattern that allows operator to spread, prevalently right, prevalently center or prevalently left.
Gate opening control
Adjustable gate opening control allows operator to adjust volume of seed distributed and direction of spread.
Stainless steel bottom

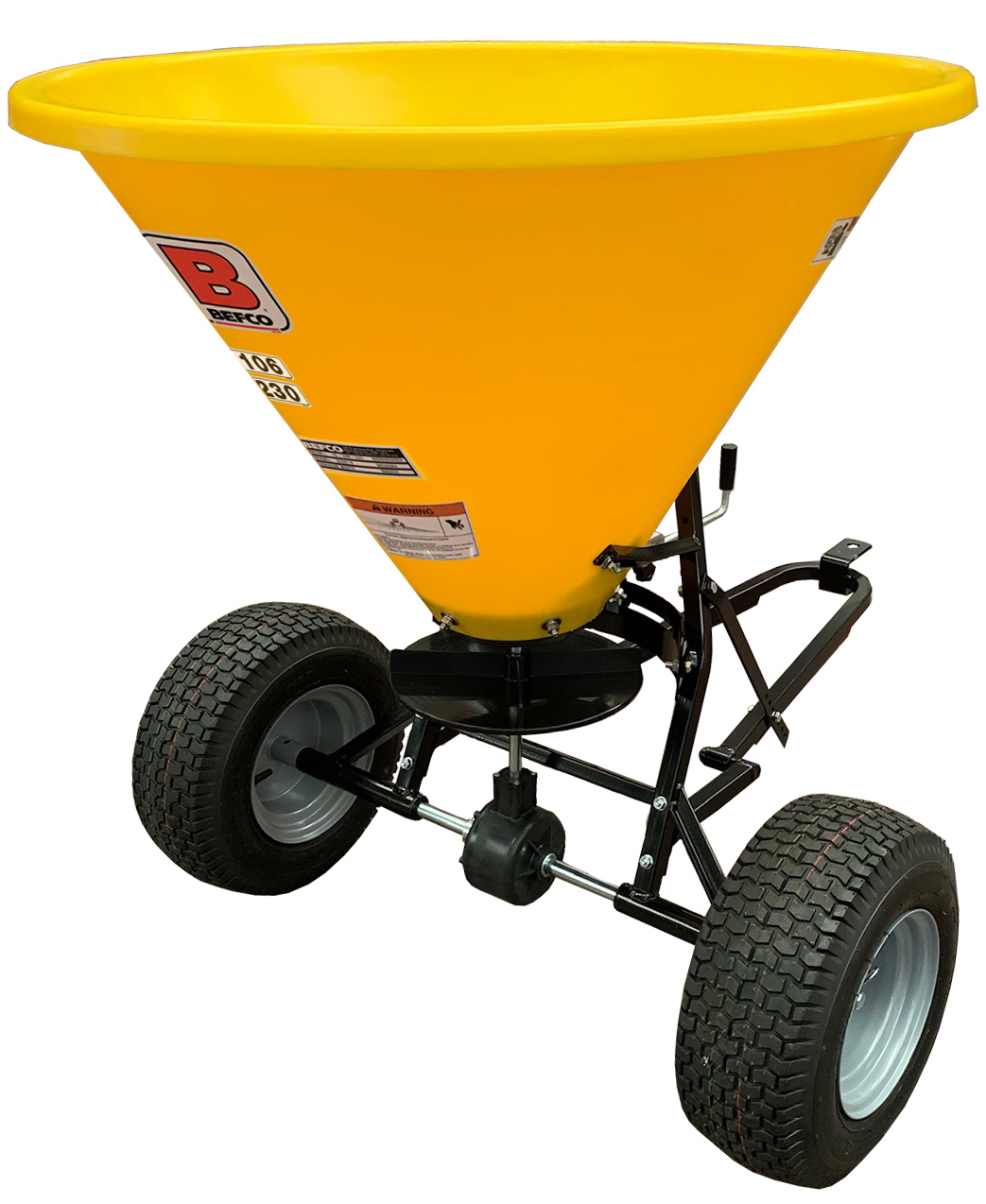

Models 103-230 and 106-230 feature a polyethylene hopper with a stainless steel bottom.
Gearbox by Rotomec
Completely sealed, maintenance free gearbox manufactured by Rotomec with all metal gears.
Deflector
AA1-120 Deflector shield for models 103 & 106
Remote gate control
0099856 Remote gate control for models 103 & 106
Hopper cover
0099720 Hopper cover for model 103
0099721 Hopper cover for model 106
