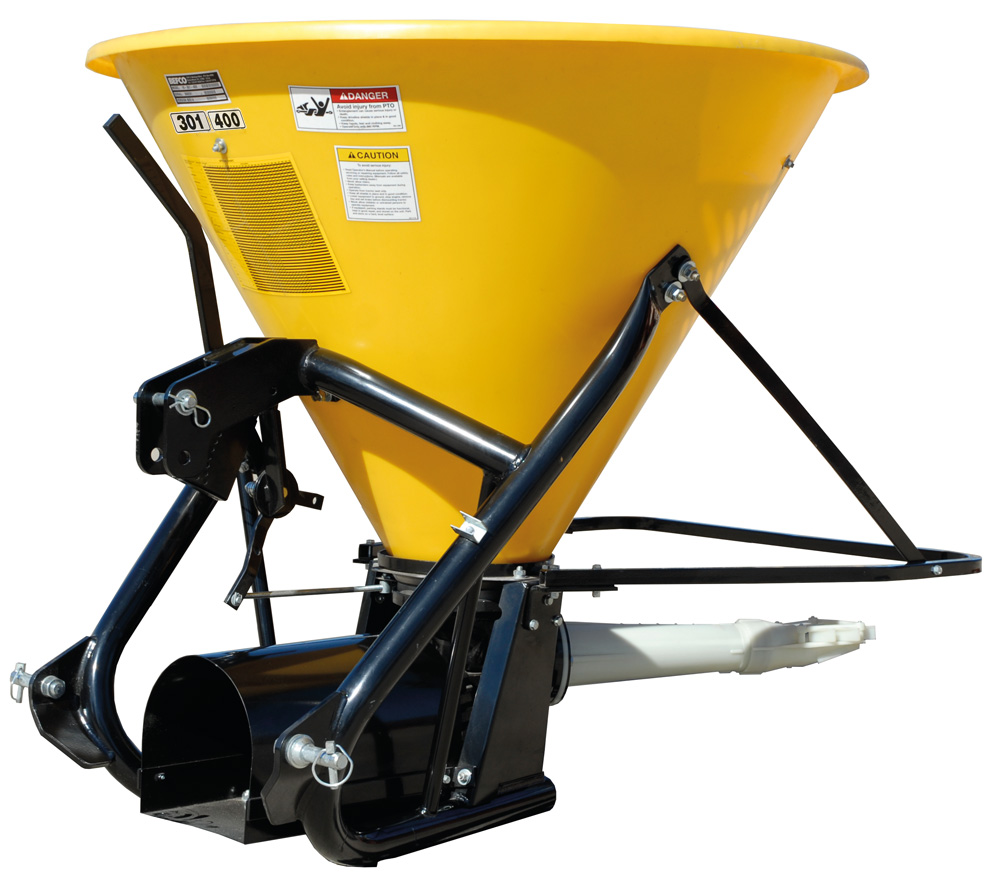

TURBO-HOP 301
Pendular spreaders
20-60 HP (15-45 KW)
540 rpm - Cat. 1
The Turbo-Hop pendular spreader is an extremely versatile and accurate machine, ideal for spreading not only granular or powdered material but also for spreading material containing a humidity percentage of up to 30 percent. Pendular spreaders can spread up to a width of 14 meters and are designed for 20 to 60 HP tractors. By rotating the spout 90 degrees left or right, the spreader will send material only in that direction, allowing the operator to spread material only on desired spots and minimize waste. The pendular spreader is also particularly suited for spreading corrosive material since components that come in contact with these are made of either stainless steel or polyethylene.
Model | 301-300 | 301-400 |
|---|---|---|
HP | 20-60 | 20-60 |
Weight Kg | 116 | 121 |
Ship Kg | 130 | 135 |
Capacity L/Kg | 250/264 | 350/373 |
Swath spread (cm) | 1400 | 1400 |
Hopper width (cm) | 106,68 | 114,30 |
Hopper height (cm) | 111,76 | 121,92 |
Driveline 1 3/8" | ASAE cat. 1 shear bolt | ASAE cat. 1 shear bolt |
NOTE: Capacity in kg calculated @ 13-13-13 fertilizer weight of 30 kg per m³.
Adjustable spread pattern
The end spout on Turbo-Hop pendulum spreaders may be turned left, right or center depending on the direction you need to spreade the material. Turn the spout upside down to reduce spread swath by half.
Gearbox by Rotomec
Unlike other pendulum spreaders that have all the moving elements out in the open, Turbo-Hop pendulum spreaders feature a fully enclosed gearbox, with gears in oil bath. This ensures durability and prevents costly and damaging rust build up on moving parts.
Stainless steel distribution unit
At the bottom of the hopper is a stainless steel distribution unit and a stamped steel agitator to keep material flowing through to the end spout.
Graded scale
The graded adjustment scale makes selecting the desired opening position a quick and easy task.
Polyethylene hopper
While other pendulum spreaders utilize fiberglass hoppers that are easily damaged on impact and weather poorly in the elements, Turbo-Hop pendulum spreaders use corrosion proof, impact resistant polyethylene hoppers that still look new after years of exposure to the elements.
Short spout
0099452 Short spout for sand and salt
Left & Right only directional attachment
0095370 Left & right only directional attachment
Locking nut for spout
0014984 Locking nut for spout
Rubber insert for damp materials
0099451 Rubber insert for damp materials
Agitator extension
0099453 Agitator extension
Filter grate
0099913 Filter grate
Hopper cover
0099722 Hopper cover for model 301-300
0099723 Hopper cover for model 301-400
Hydraulic control
0099456 Hydraulic control
TURBO-HOP 301-300 & 301-400 Libretto uso e manutenzione
TURBO-HOP 301-300 & 301-400 Operator’s manual
TURBO-HOP 301-300 & 301-400 Livret d’entretien et d’utilisation
TURBO-HOP 301-300 & 301-400 Parts manual
C70 Bedienungs- und wartungsanleitung
