Hop broadcast spreaders

HOP

Broadcast spreaders
16-50 HP (12-37 KW)
540 rpm - Cat. 1

The Hop fertilizer spreader, with a conic hopper and a distribution disc, is an easy and economical tool for spreading granular and powdered fertilizers. It also serves as a salt or sand spreader. It is available in four sizes with hopper capacity of 105, 150, 250 and 350 liters. Hop fertilizer spreaders are designed for tractors ranging from 16 to 50 HP at 540 rpm. They are equipped standard with a fixed agitator or are available with a wheel agitator upon request.

All models of the Hop line are also available in the Poly-Hop version with polyethylene hopper and stainless steel components, making them ideal for spreading corrosive materials.

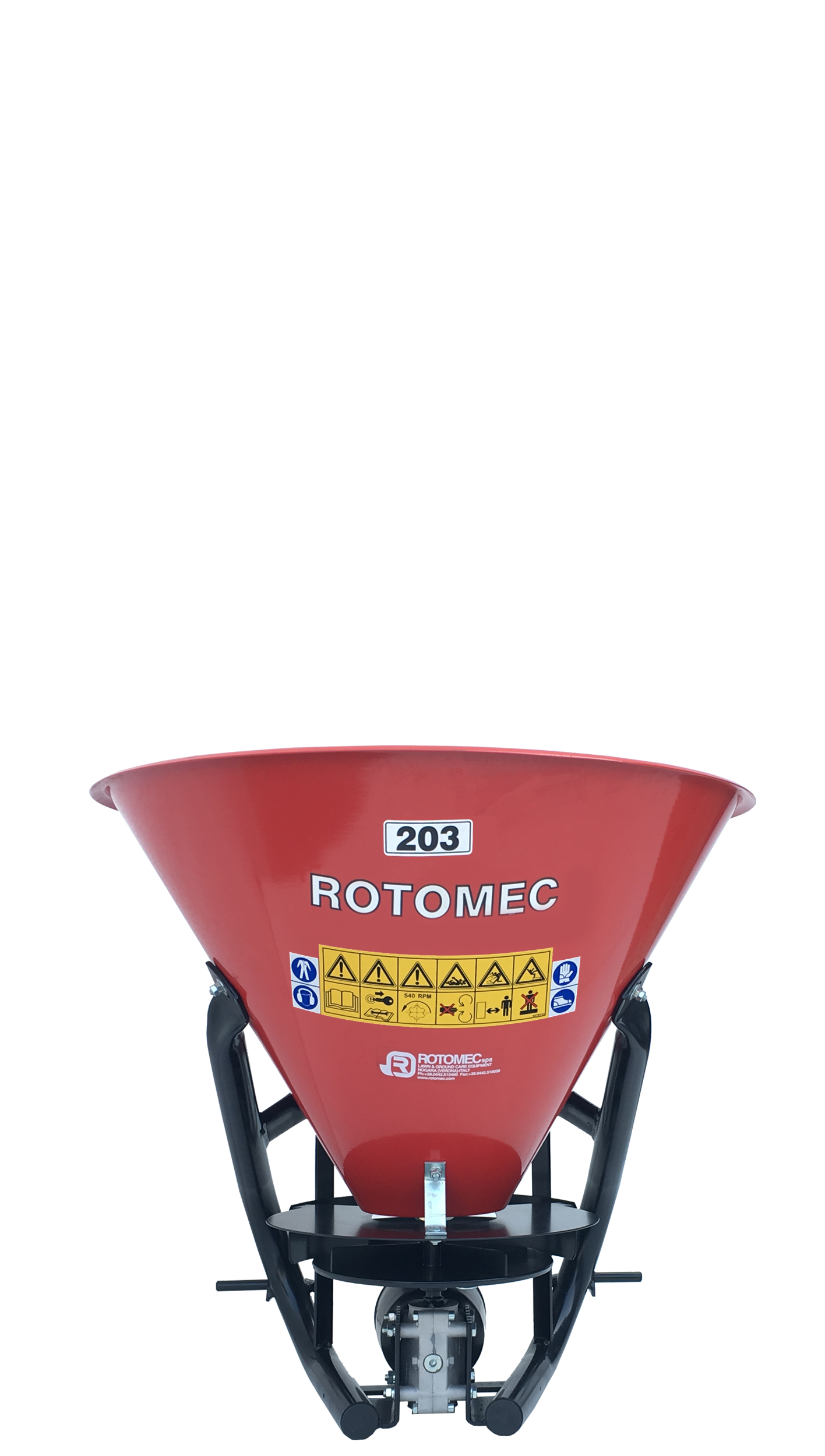

203 lamiera scontornato

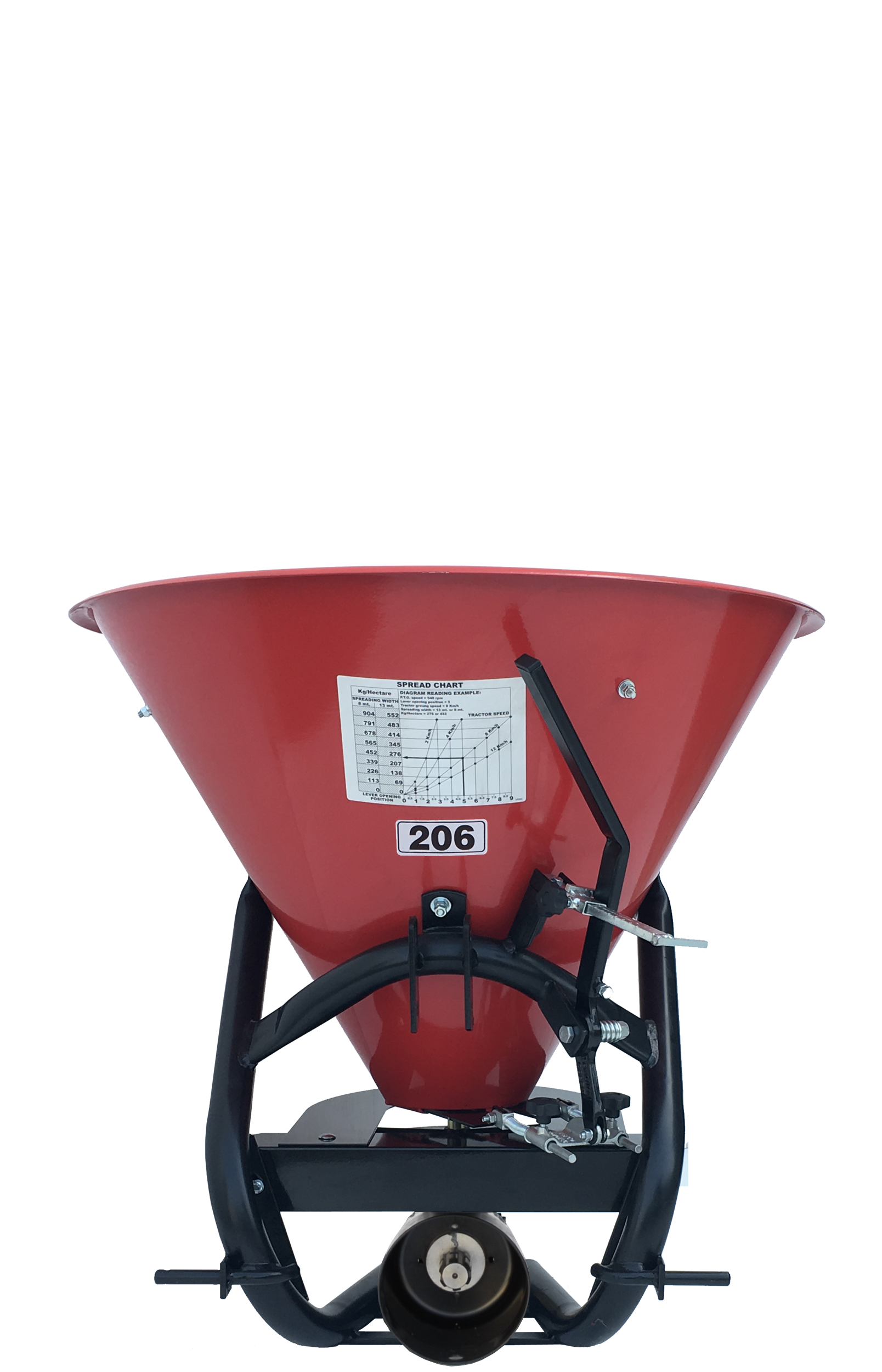

206 lamiera scontornato

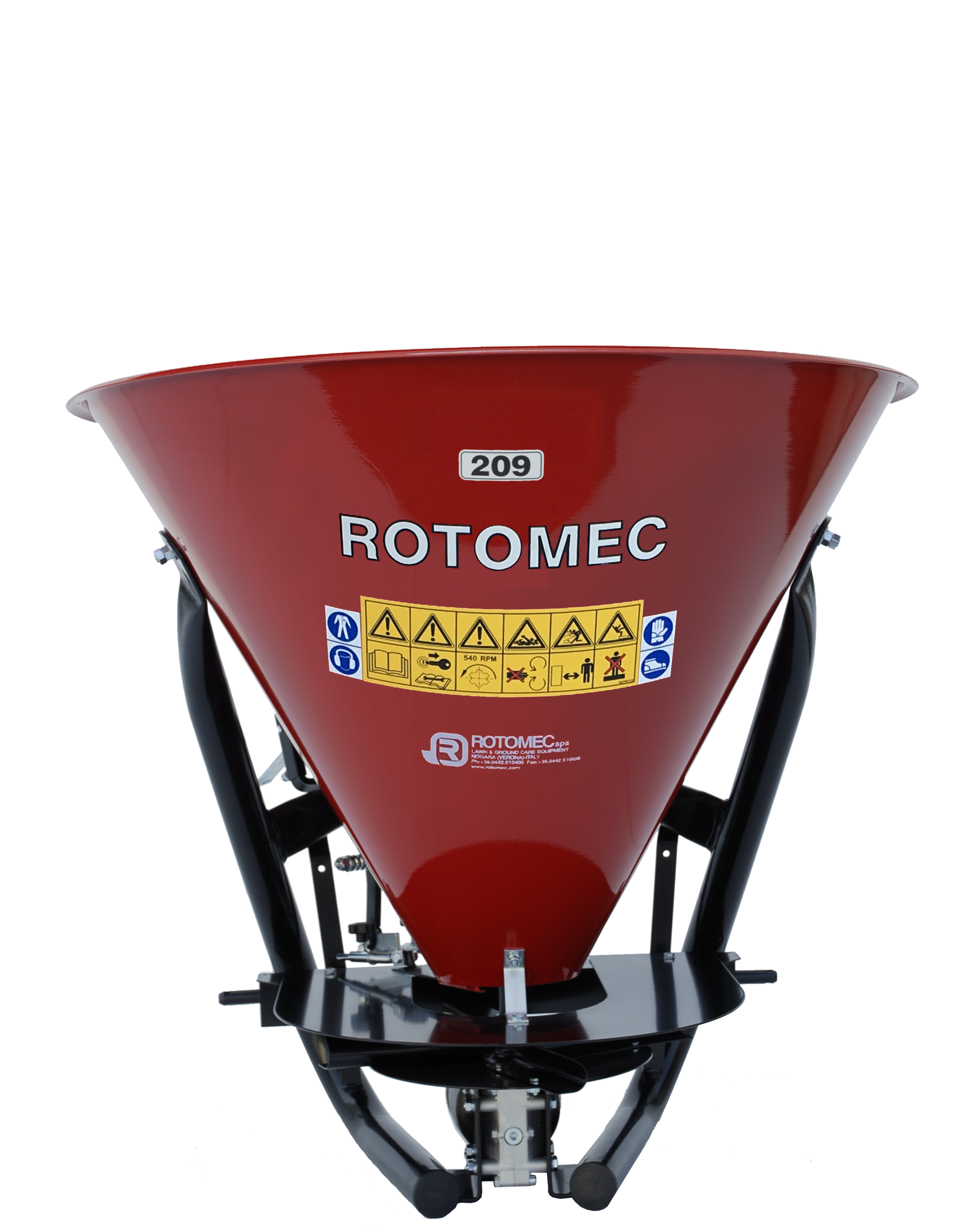

209 lamiera scontornato

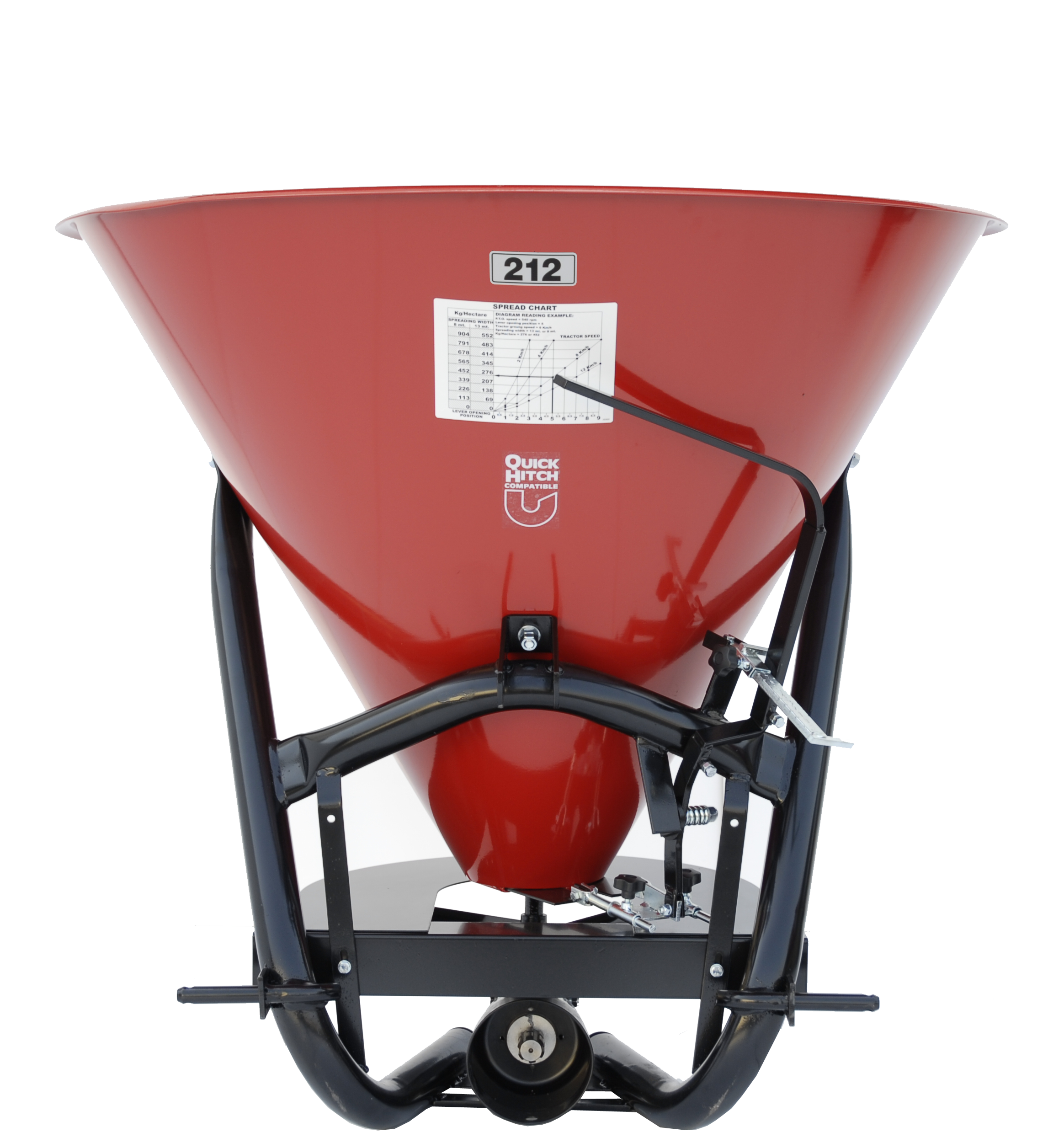

212 lamiera scontornato

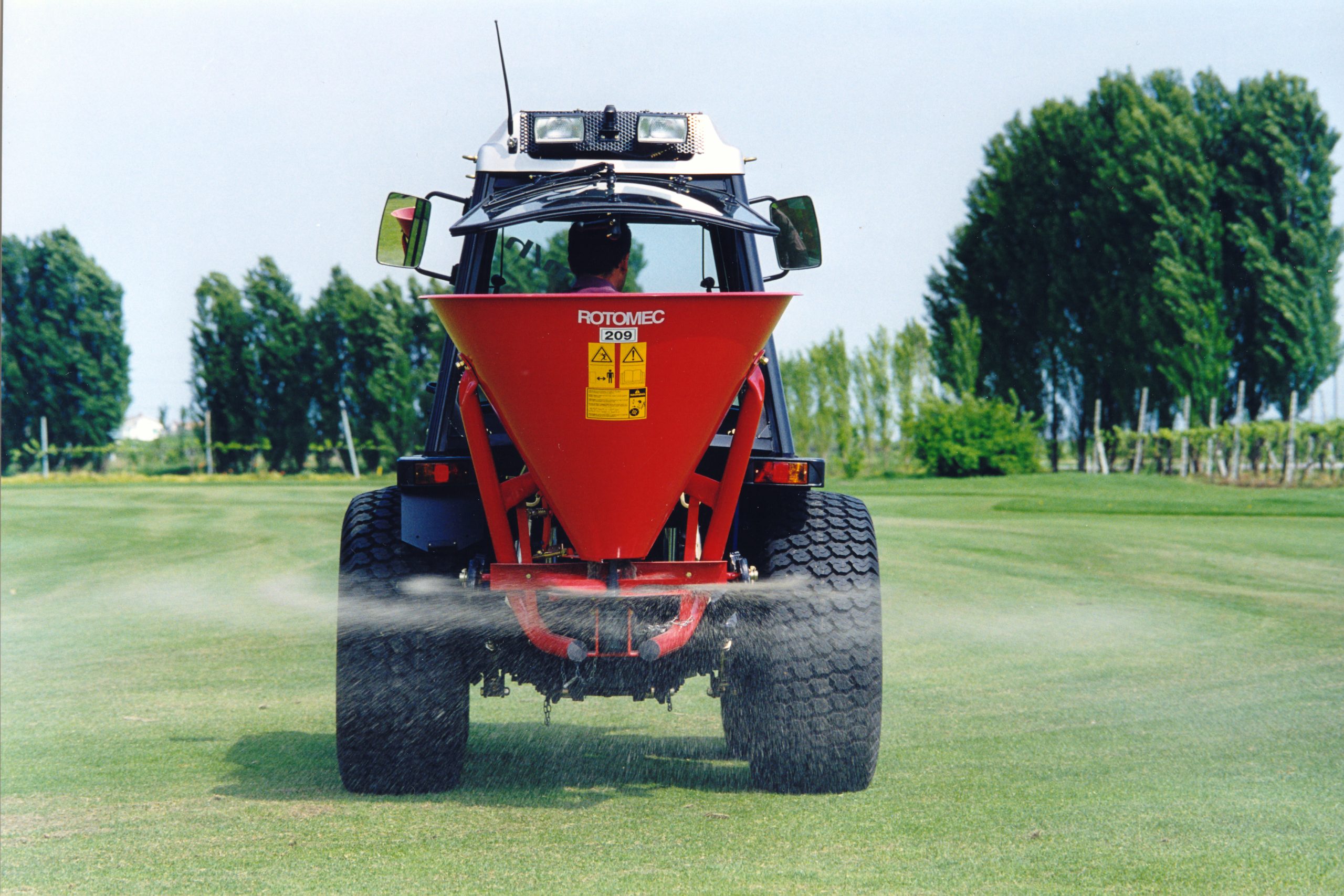

hop-work01

TECHNICAL FEATURES
STANDARD FEATURES
OPTIONAL EQUIPMENT
MANUALS

Model	HP	Weight Kg	Ship Kg	Capacity L/Kg	Swath spread (cm)	Hopper width (cm)	Hopper height (cm)	Driveline 1 3/8"

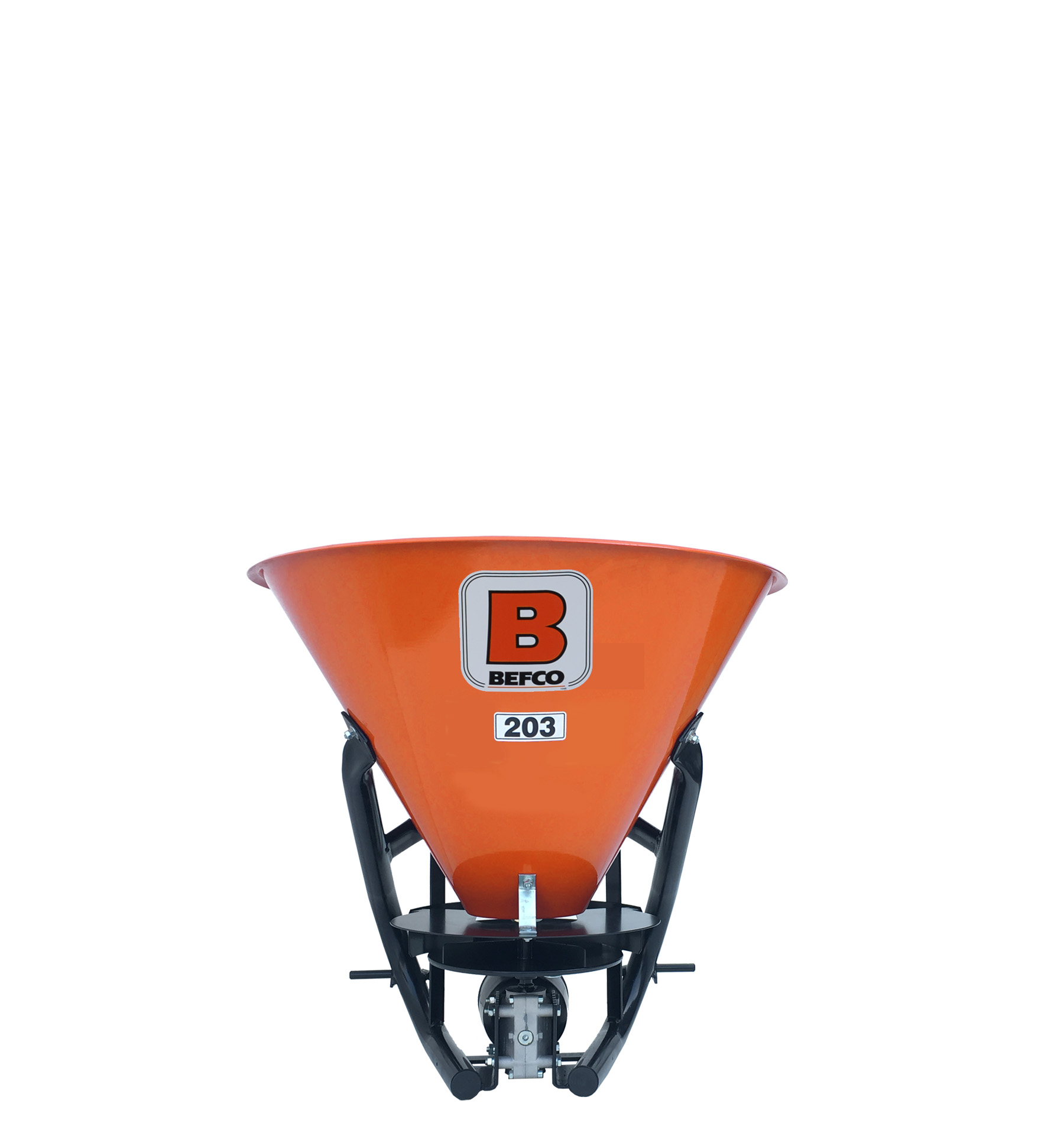

203-120	16-30	37	50	105/135	700	81,28	78,74	ASAE cat. 1

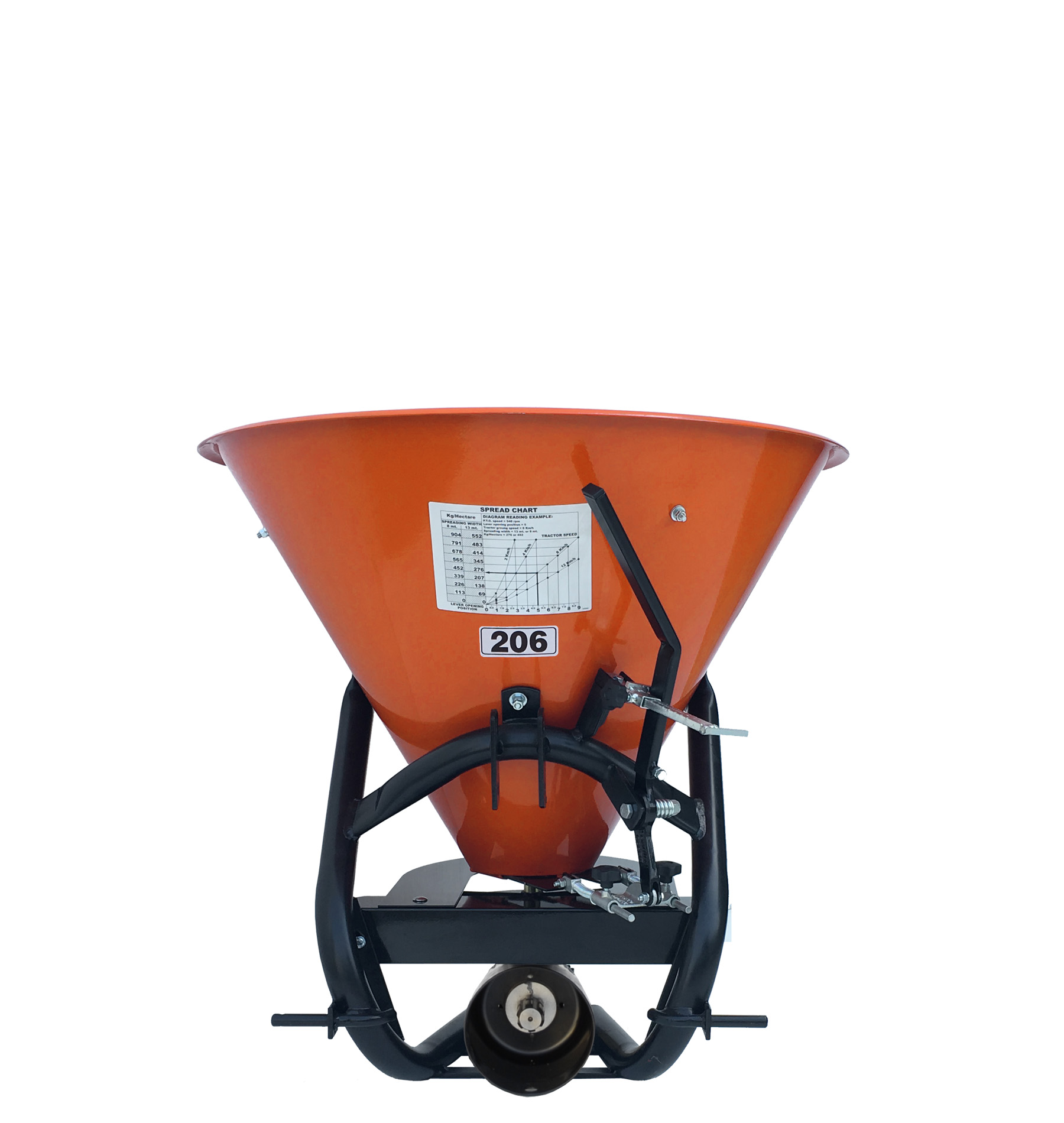

206-121	16-30	46	60	150/180	700	88,90	86,36	ASAE cat. 1
209-121	20-50	57	70	250/325	1400	106,68	101,60	ASAE cat. 1
212-121	20-50	62	80	350/500	1400	121,92	116,84	ASAE cat. 1

NOTE: Capacity in kg calculated @ 13-13-13 fertilizer weight of 30 kg per m³.

Adjustable spread pattern

Hop spreaders are equipped with an adjustable spread pattern that allows operator to spread, prevalently right, prevalently center or prevalently left.

One piece seamless steel hopper with opening gates on bottom

All Hop spreaders have a one piece seamless steel hopper with opening gates on the bottom to improve flow of material to the spreader disc.

Steel gates

Steel gates opening control on models 206-121, 209-121 and 212-121 allow you to open one or both gates at a time to help direct material in the desired direction.
