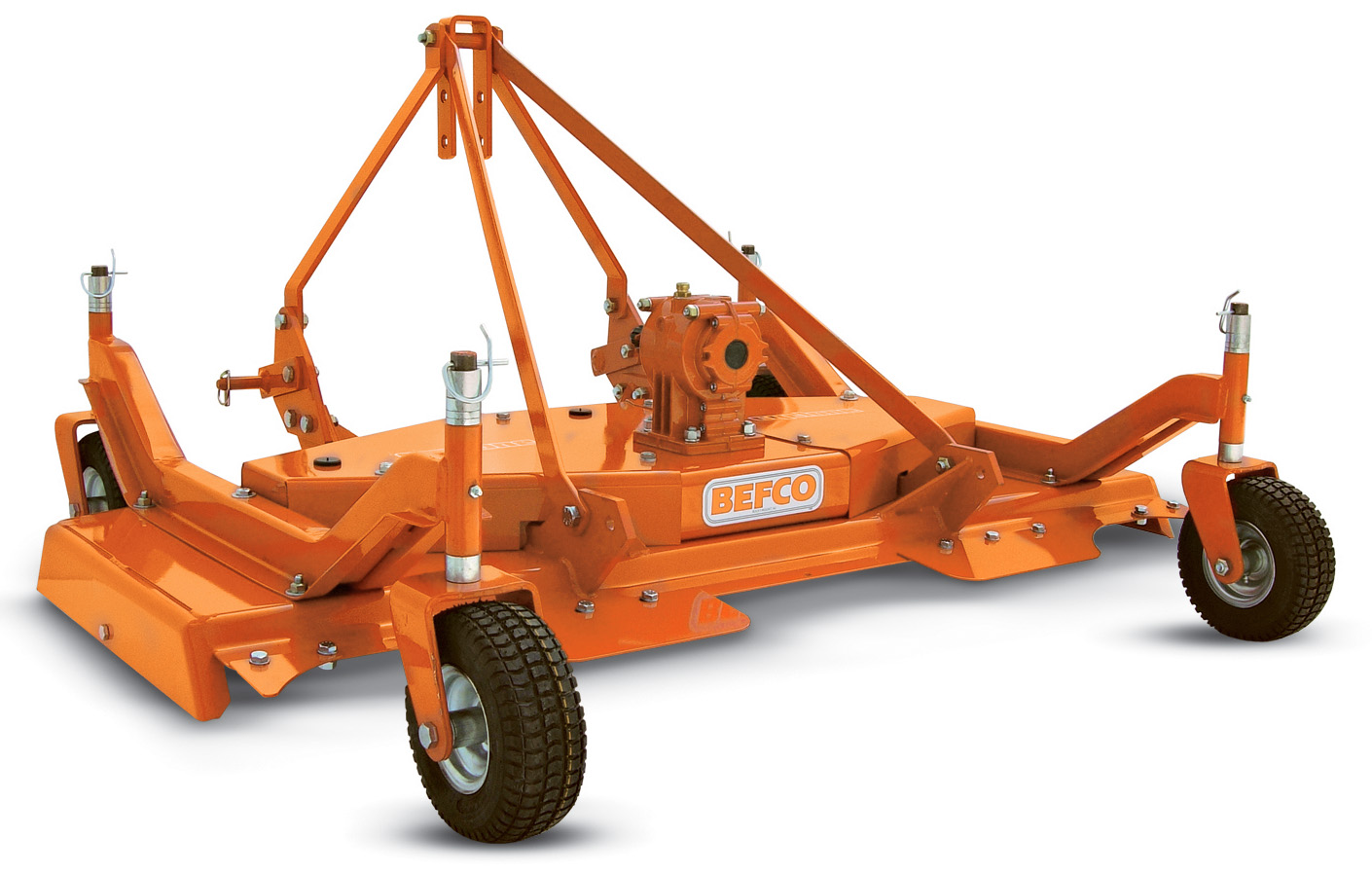

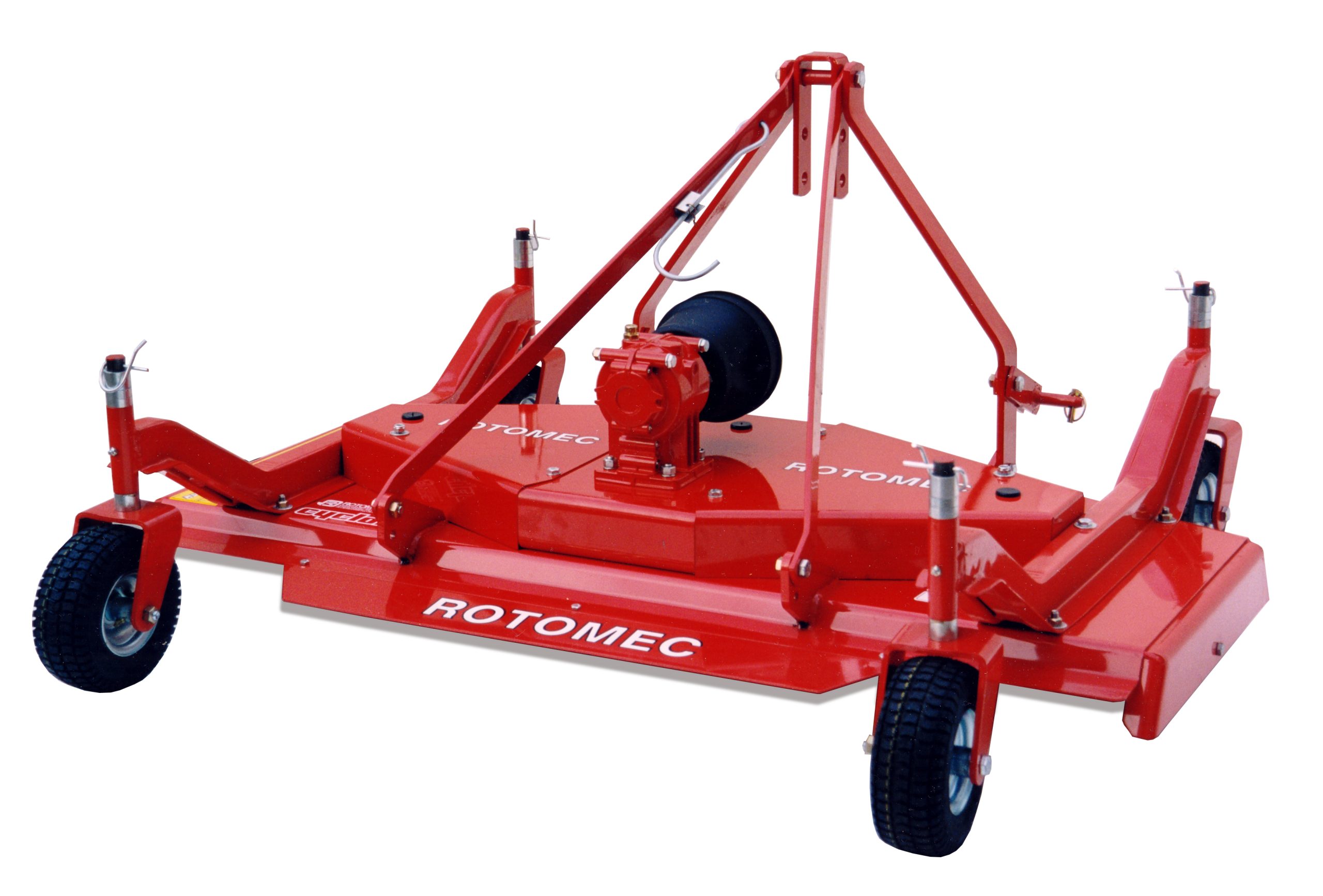

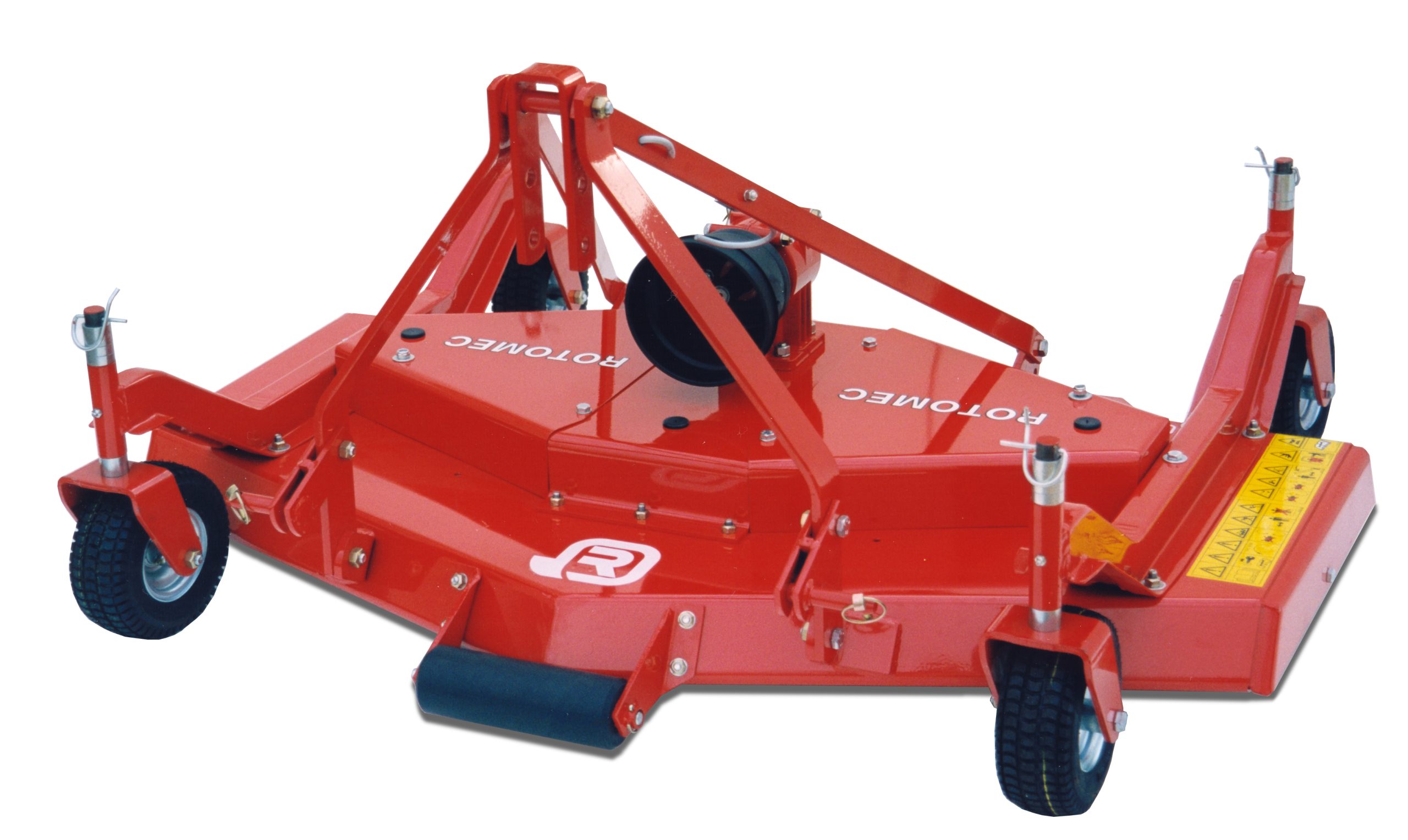

CYCLONE C30
Grooming mowers
16-30 HP (12-22 KW)
540 rpm - Cat. 1
The Cyclone C30 is a three-spindle mower suitable for tractors ranging from 16 to 30 HP. It is available in three models with working widths of 120, 150 or 180 cm. The C30 have a rear discharge that allows the cut grass to be distributed equally across the entire cutting width. The belt driven transmission with automatic spring tensioning makes it easier to operate and perform maintenance of this machine. The Cyclone range models are always equipped with axial grease fittings that allow the bearings of the blade spindles to be greased without removing the belt shields. Pulleys are individually balanced to ensure a perfect operation of the transmission. The Cyclone C30 uses sturdy stamped and reinforced wheel arms and comes with a floating 3-point hitch that allows the mower to better track over uneven grounds.
MODELS WITH SOLID TIRES (SIZE 210 mm x 80 mm)
| Model | HP | Working width (cm) | Overall width (cm) | Weight Kg | Ship Kg | Rotor rpm | Blade tip speed (m/s) | Nr of blades | Cutting height (mm) | Nr Belts & type | Driveline 1 3/8" |
|---|---|---|---|---|---|---|---|---|---|---|---|
| C30-RD4H | 16-30 | 120 | 146 | 155 | 170 | 3.037 | 67 | 3 | 25-100 | 1 BX | ASAE cat.2 |
| C30-RD5H | 20-30 | 150 | 178 | 170 | 185 | 2.803 | 75 | 3 | 25-100 | 1 BX | ASAE cat.2 |
| C30-RD6H | 25-30 | 180 | 205 | 200 | 215 | 2.278 | 74 | 3 | 25-100 | 1 BX | ASAE cat.2 |
Reversible hitch for front and rear mounting
Reversible three point hitch for front and rear tractor mounting.
Gearbox by Rotomec
Gearboxes are manufactured by Rotomec and feature a fully enclosed seal housing to protect seals from foreign objects.
540 rpm clockwise and anticlockwise transmission
Single belt transmission
Heavy duty reinforced belt (BX) with spring loaded tensioner provide over 180° coverage of all pulleys.
Axial grease fittings
Spindles are quipped with axial grease fittings that allow operator to grease spindle from the top without having to remove the belt shields.
Hard tires
Customers can choose between solid (210 mm x 80 mm) or pneumatic tires (250 mm x 80 mm – optional).
During the purchase process the customer can choose the type of blade
Standard blades
Complete kit high lift blades
Complete kit flat blades
Transmission 1000 rpm
O1000C30 1000 rpm clockwise transmission
A1000C30 1000 rpm anticlockwise transmission
Transmission 2000 rpm
O2048C30 2000 rpm clockwise transmission for C30-RD4 and C30-SD4
O2060C30 2000 rpm clockwise transmission for C30-RD5 and C30-SD5
O2072C30 2000 rpm clockwise transmission for C30-RD6 and C30-SD6
A2048C30 2000 rpm anticlockwise transmission for C30-RD4 and C30-SD4
A2060C30 2000 rpm anticlockwise transmission for C30-RD5 and C30-SD5
A2072C30 2000 rpm anticlockwise transmission for C30-RD6 and C30-SD6
Mulching kit
0099178 Mulching kit for model C30-RD4
0099179 Mulching kit for model C30-RD5
0099180 Mulching kit for model C30-RD6
Note: Mulching blades are also included in Mulching kits
Front anti-scalp roller
0099536 Front anti-scalping roller for all C30 models
Three point hitch cat. ‘1N’
H1NXXC30 Three point hitch cat. ‘1N’ for all C30 models
P.T.O. shaft tractor end yoke
YKZ6CAT2 P.T.O. shaft tractor end yoke Z6x21x25 for all C30 models
Air tires
AIRXXC30 4 air tires 230 mm x 90 mm for all C30 models
Triangular quick hitch kit (only female) for tractor
TRI48C30 Triangular quick hitch kit (only female) for tractor for C30-RD4 and C30-SD4
TRI60C30 Triangular quick hitch kit (only female) for tractor for C30-RD5 and C30-SD5
TRI72C30 Triangular quick hitch kit (only female) for tractor for C30-RD6 and C30-SD6
Triangular quick hitch kit for tractor
009840 Triangular quick hitch kit for tractor for all C30 models
