FRONT MOWERS FOR ISEKI TRACTORS

Designed for Iseki SF224, SF225, SF235, SF237, SF438, SF450, SF544, SF551 models

IMG_5502
IMG_5543
previous arrow
next arrow

Rotomec manufactures a range of mowers to be applied to front tractors of various brands. They are available in working widths of 150 and 180 cm. The gearboxes, designed and manufactured by Rotomec, allow an excellent coupling with the tractor to achieve the ideal cutting speed. The cutting height can be adjusted from a minimum of 25 mm to a maximum of 120 mm. The special tractor attachments allow you to raise the machine off the ground to overcome obstacles such as curbs, sidewalks and flower beds. Some models are equipped with tractor attachments  that allow the mower to be flipped vertically to allow easier access for maintenance, cleaning and storage of the unit after use.

IMG_5502
IMG_5543
previous arrow
next arrow

MODELS WITH 2 PNEUMATIC TIRES (SIZE 280 mm x 100 mm)

Model

ISE-R60

ISE-R72

Designed for

SF224, SF235

SF225, SF237

SF438, SF450

SF544, SF551

SF224, SF235

SF225, SF237

SF438, SF450

SF544, SF551

Working width (cm)

150

180

Overall witdh (cm)

157

189

Weight Kg

185

226

Rotor rpm

2.793

2.578

Nr of blades

3

3

Cutting height (mm)

25-120

25-120

Nr belts

1 BX

1 BX

Blade tip speed (m/s)

75

84

Driveline 1" 3/8

1" z15 ASAE cat. 1

1" z15 ASAE cat. 1

Front lift

The special tractor attachments allow you to raise the machine off the ground to overcome obstacles such as curbs, sidewalks and flower beds.

Front antiscalp roller

All Iseki’s front mowers are equipped standard with front antiscalp rollers to help prevent scalping the ground when mowing over uneven terrain.

Rear antiscalp rollers

All Iseki’s front mowers are equipped standard with two rear antiscalp rollers to help prevent scalping the ground when mowing over uneven terrain.

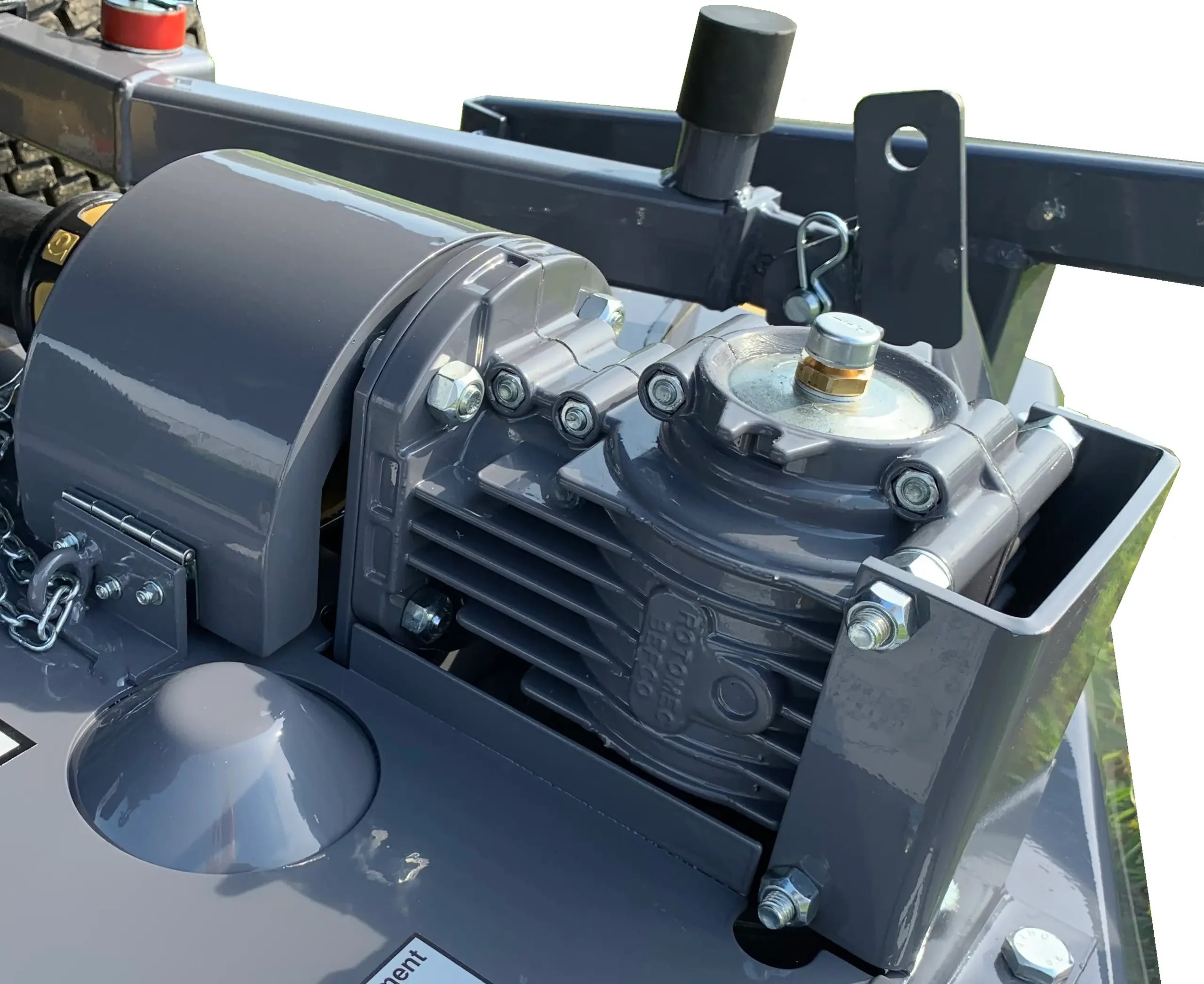

Gearbox by Rotomec

Gearboxes are manufactured by Rotomec and feature a fully enclosed seal housing to protect seals from foreign objects.

Standard blades

0006641 Standard blade for 150 cm mower deck
0006845 Standard blade for 180 cm mower deck

High lift blades

HLB3X005 Standard blade for 150 cm mower deck
HLB3X006 Standard blade for 180 cm mower deck

Flat Blades

FLB3X005 Standard blade for 150 cm mower deck
FLB3X006 Standard blade for 180 cm mower deck

Mulching kit

0099184 Mulching kit for model ISE-R60
0099185 Mulching kit for model ISE-R72

Mulching blades

0006641M Mulching blade for model ISE-R60
0006845M Mulching blade for model ISE-R72
Note: Mulching blades are also included in Mulching kits

Wheel arms

ARM60ISE Wheel arms for Iseki SF438, SF450, SF544, SF551
ARM72ISE Wheel arms for Iseki SF438, SF450, SF544, SF551

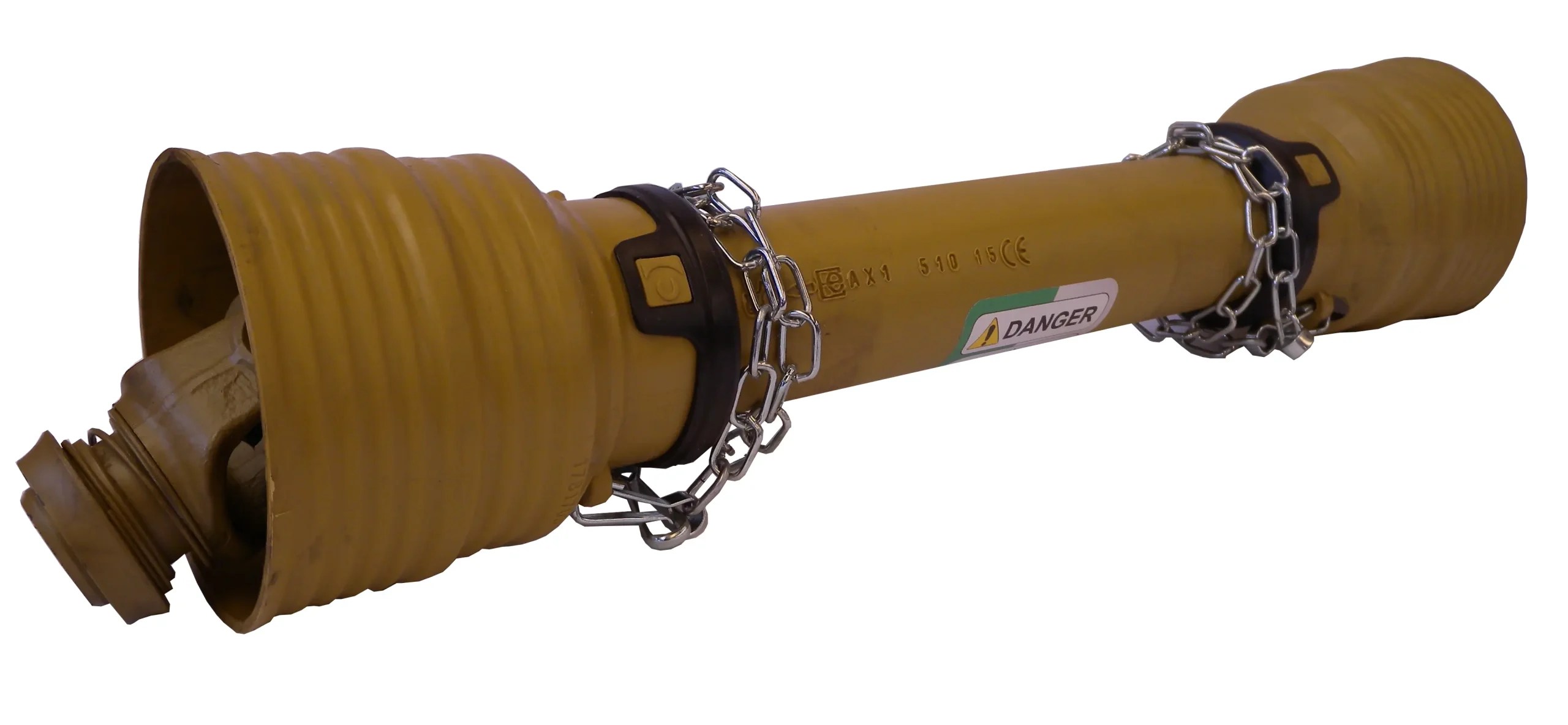

PTO shaft

0500076 PTO shaft for model ISE-R60 & ISE-R72
